90° Angle Steel Cold Roll Forming Production Line

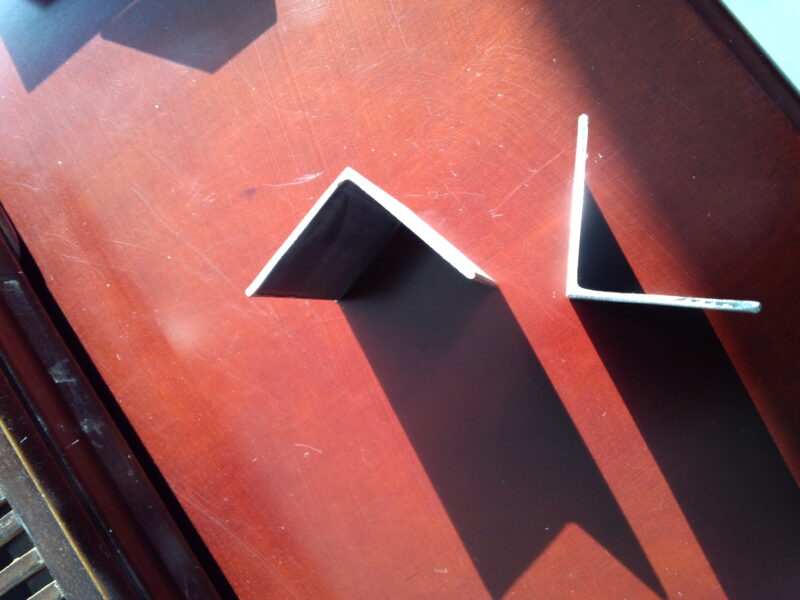

Angle Steel Cold Roll Forming Production Line angle steel machine is a new economic profile steel production line of our company's research and development. By means of roll bending deformation combined with the hot rolling process, this mill can produce a certain range of specifications’ angle steel with the low carbon steel or low alloy steel strip. The produced angle steel’s outer fillet is a sharp angle, and the overall sectional dimensions meet the national standards of hot-rolled angle steel. Both the surface quality and performance indicators are higher than those of the same size of hot-rolled angle steel.

Material: HR steel coil, (δb≤ 500MPa, δs≤ 235MPa)

The technical flow of the production line

{SteelTape}→→ Single-arbor un-coiler →→Strip-head Cutter and welder→→

Cage Loop→→ feeding→→ Pre-forming →→Intermediate frequency induction heating unit →→squeeze upsetting →→finishing molding→→ polishing blunt →→cooling and straightening→→ speed testing→→ drawing stand →→Turkey head adjusting twist →→cutting saw under computer control→→ Run-out table→→ blanking and packaging

Video link:  https://youtu.be/H4Xq93fMdvg

https://youtu.be/H4Xq93fMdvg
