Combined C U Channel Roll Forming Machine Customer requirements: Combined C U Channel Roll Forming Machine

Combined C U Channel Roll Forming Machine Working Process:

Combined C U Channel Roll Forming Machine

Combined C U Roll Forming Machine Decoiler System Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system. Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm Combined C U Channel Roll Forming Machine Combined C U Roll Forming Machine Entry Beach Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Combined C U Channel Roll Forming Machine Combined C U Roll Forming Machine Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanize treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Size of main part: About 5.5*1.4*1.5m (L*W*H) Weight of main part: 4.5Tons Main power: 5.5kw Voltage: 380V/50HZ/3Phase Frame type: Memorial arch frame Frame thickness: 25mm Drive mode: By gear Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ40mm Number of rollers: 11 rollers Material: GI/PPGI Material thickness: 0.3-0.6 mm Forming speed: 25 meter/minute Combined C U Channel Roll Forming Machine Combined C U Channel Roll Forming Machine Combined C U Roll Forming Machine Automatic Cutting Feature : Ensure stability, precision and cutting speed Function : Automatic cutting controlled by electric control system It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Gcr12MoV quenched Power supply : Hydraulic power Combined C U Roll Forming Machine Hydraulic Station It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Station quantity: 2 sets Hydraulic motor Power: 3kw Hydraulic oil: 46# hydraulic oil Volume: 30L Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves. Combined C U Roll Forming Machine Electric Control System 1. Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime. 2. Voltage: 380V/50HZ/3Phase 3. Language: English and Chinese 4. Automatic length measurement 5. Automatic quantity measurement 6. Length Tolerance: 3m±1.5mm 7. Length inaccuracy can be amended easily. 8. Operating panel: touching screen and button together. 9. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety. Combined C U Roll Forming Machine Warranty 1. One year warranty, whole life technical support. 2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine. 3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary. Contact information

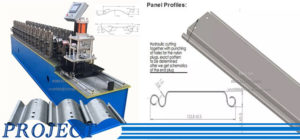

Metal Door Machine

ZT24-195-780 glazed tile roll forming machine

The main component of theZT24-195-780 glazed tile roll forming machine:

Uncoiler System-Glazed tile roll forming machine main Roll Forming System-Entry Beach-Step-formed mechanism-Shearing Mechanism-Hydraulic Station-Electric Control System-Counter-Products receiving tables. 780pingmiantu Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness: 0.3—0.8mm Material hardness: 195 mpa—350 mpa Material width: 1000mm Formed width:780mm Wavelength: 195 mm Step height: 24mm Step length:150mm—380mm(adjustable) Forming speed: 8-12m/min Working speed :3-5.5m/min 780banxing Uncoiler System of glazed tile roll forming machine: Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system Loading capacity:5T Uncoiling width:1000mm Inner diameter: 450-550mm 780uncoilersystem Main parameters of glazed tile roll forming machine: Feature : Ensure stability , precision and lifetime. Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Length of the main part: about 8500Ñ…1600Ñ…1500 Weight of main part: 6.5 780main The main characteristic of glazed roof tile machine

  • The high of safety performance—-Can avoid the industrial accident and safety hazards of the traditional process shearing,slitting,punching,bending and so on.
  • The high of production efficiency—-can save human and managemen aspects,material resource,reduce intermediate links operations in the multi-channel . it can improve 5-10 times than the traditional
  • Full Automatic—-PLC computer control, simple operation, without manual calculation bracket profile pitch and length dimensions. Fully automated production line, without human intervention
  • The high precision of exterior—than manual punching, bending production of high dimensional accuracy of profiles, more unified and beautiful appearance.



Roof/Wall Sheet Forming Machine

Double layer Roofing Sheet Cold Roll Forming Machine

Double layer Roofing Sheet Cold Roll Forming Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a common machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But by one double layer machines you can produce two types roofing sheets. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or corrugated round wave roofing sheet.

Working process of double layer roofing machine: Uncoiling —- Feeding material into machine —- Roll forming machine—- Step formed—- Auto cutting—- Products receiving table.

Basic parameters of the double layer roofing machine:

No. Main parameter
1 Length of the main part About 7500 Ñ… 1650 Ñ… 1500 mm
2 Weight of main part About 5.5 t
3 Voltage 380 V (as customer’s request)
4 Roller fixer Middle plate welded
5 Frame 350 H steel welded
6 Frame thickness 18 mm
7 Drive mode Chain
8 Material of rollers 45# steel, surface hard chromium plating.
9 Material of shafts 45# steel
10 Diameter of shafts Φ 85 mm
11 Number of rollers Up layer: 13 rollers Down layer: 15 rollers
14 Main power 5.5 kw

Features of double layer roofing machine:

  • One machine could produce two types roofing sheets.

2. Save working space, save energy and save cost of machine.

3. Easy to use and easy to transportation.

4. If you need to add wheels to machine, you can put production at any place.

5. Two layer one PLC control system, one pair of motors, easy to maintain.

6. Working speed 8-12 meters per minute.

7. Material thickness could be from 0.3 to 0.8mm.

Note: But two layers cannot work at the same time.

If you need to huge production, please buy two single layer machines.

Highway Guardrail Machine

Technical parameters and characteristics of high-speed guardrail moulding machine

Technical parameters:

1. Loading.

1. Single-end uncoiler, single-side f

2. Automatic hydraulic internal tension

3. Maximum winding weight: 8000KG

4. Maximum winding diameter: 2200mm

5. Hydraulic power: 3KW

6. Cylinder diameter: 120mm, working pressure 10Mpa

7. Maximum winding width 500 mm

Two. Molding

2017nian3yue 24 033



1. Feeding into the guide wheel of the unit

2. Leveling up to three rolls and down to four rolls, forming shaft diameter 80mm (material 45# through conditioning), roll material GCR15, quenching to HRC58 -62, hard chromium plating on the surface, pressing thickness 2.5m-3.0m.

3. Punching: Hydraulic Punching (material Cr12 die steel quenching treatment, can be left and right arbitrary adjustment)

4. Cut off hydraulic shear (Cr12 quenched HRC60-62)

5. Host power: 15KW

6. Cycloid pin reducer power: 15KW

7. Drive: Chain Drive, 2-inch Single-row Chain

8. Motor Power of Hydraulic Station: 15KW, Pressure 20Mpa

9. Frequency Conversion Speed Regulation 5-12 m/min for Unit

10. Inverter, Delta
1. The computer uses Delta PLC

12. Touch screen display for computer operation panel

13. Outward Size of Equipment: 17.5m in length, 1.2m in width and 1.5m in height

14. Electrical appliances origin and brand are optional.

Three. Discharging

Simple discharging rack

1. The frame is welded by 60mm *40mm square pipe (adjustable up and down)

2. Install sliding wheels on the rack

3. Specification: 1.5 m long, 0.9 m wide and 0.6 m high

gshl

Product

Rolling Forming Machine for Double Glass Tile Roof Panel

Supply: double-layer color steel tile press/double-layer composite tile press/glazed tile press/double-layer forming machine/color steel tile forming machine/purchasing color steel tile machine/price of color steel tile machine/sandwich plate equipment/color steel composite plate equipment/quotation of color steel tile equipment/color steel tile equipment consultation/color steel tile production line/color steel tile machinery/color steel tile machinery/color steel tile equipment sales

IMG_9797

Product Description: The production line of multi-functional color steel thermal insulation composite board adopts advanced production technology, which integrates gas, electricity and machinery. It is a special mechanical equipment for processing color steel thermal insulation composite board. Its working speed is variable frequency and stepless high speed, and it can be compounded into corrugated composite board at one time. The whole assembly line consists of feeding mechanism, forming mechanism and compound mechanism (reinforcement, glue coating, heating and compounding). Ribbing, slotting, trimming, pneumatic and automatic cutting) are indispensable equipment for panel and wallboard of industrial plant and warehouse. Technical parameters: power supply 380V/50-60HZ; total power: 32KW; production line speed: 0-4m/min; product width: 1000mm, 120mm; product thickness: 50-250mm; annual output: 600,000 square meters. Captain 36M, there are two kinds of production line of multifunctional color steel heat insulation composite board: foam and rock wool dual function machine and single function machine. The whole production line can be operated by 4-5 people, and can produce different colors of color steel thermal insulation composite sheets. Correct debugging of color steel forming equipment can improve the service life of tile machine and bring corresponding efficiency and benefit to enterprises. Reasonable and regular operation will also avoid some unnecessary accidents, which is also a good way for operators themselves. Adjustment method of press plate deviation of color steel tile equipment-tile press, such as running right, padding left corner, or falling right bottom flat. Firstly, the four corners of the front and rear queues of the color steel tile press equipment are the same from the frame to the end of the axle. Then, from the first row to the last row, find a line to straighten, check whether the lower axle is in a straight line, and adjust the left and right sides of the lower axle to a level. Find the center of the first and last row of the color steel tile equipment, then fasten the lock mother on both sides, draw a straight line before and after the center of the middle wheel, and adjust the gap between the upper and lower axles, then adjust the machine along the straight line.

IMG_9798

Making features of bolt balls for color steel tile equipment:

Production of bolt balls for color steel tile equipment: There are two ways to process the blanks of bolt balls, one is casting, the other is die forging. Foundry balls are prone to cracks and sand holes, and die forging balls are of good quality, high efficiency and low cost. The finished products of C-beam mill rolled by C-beam mill equipment have good flatness in tension, bending and compression, automatic fixed-length cutting, automatic punching, high automation, fast and convenient installation. The products can be used as the main force-bearing structures of large and medium-sized industrial and civil buildings, such as the roof load-bearing and wall flat support of workshop, garage, hangar, exhibition hall, cinema, market flower shed. The appearance is regular, the edges are straight, not twisted and warped, there are no defective cracks on the front and back sides, and the claws are well angled (guaranteed to hang firmly). When making color tile in large tile factory, the mould is made of high-strength aluminium alloy, which is smooth and regular, and the tile produced is naturally flat and precise in size; while in small factory, the iron sheet is used as the mould, which is itself warped, and the tiles coming down can not be leveled and standardized. This directly affects the paving effect. The cracks in the roof are large and irregular, and the effect of rain, wind and heat insulation is obviously poor. Measuring method: Put the tile on the plane, press it to know whether it is warped and flat, and look at the edges of both sides with eyes to know whether it is flat or not.

Videos

Ridge cap roll forming machine for roofing cap building material

What is ridge cap?

A ridge cap is a building material that is installed along the ridge line of a sloped roof. A traditional gabled roof on a home is made up of two sloped sides that meet in the middle. The point where these two sides meet forms the apex of the roof, and is known as the ridge or ridge line. A ridge cap fits over the joint between these two edges to keep rain and snow out of the home. It also helps to finish off the look of the roof by creating a tightly sealed joint along the two sides. Now in the market as far as I know, there are two types: bending type ridge cap and round wave type ridge cap. So for making ridge cap machine there will be two types too. Here are some picture for your reference:

The the following pictures is about round metal ridge cap.

round metal ridage cap
round metal ridage cap







bending ridge cap
bending ridge cap













How the metal round ridge cap is made by machine?

Same as other roll forming machines, this machine principle is also roll forming. From decoiler to runout table, it processes by several parts. But this roll forming machine is the special high speed roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’ s requirement, automatically cut to length. This equipment has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good look and so on.Here is one machine of the machine for your reference:

ridge cap roll forming machine
ridge cap roll forming machine





















Here are some parameters of this machine for your reference:

No. Item Parameters Remark
1 Suitable material Type Color steel
Thickness 0.3—0.5mm
Yield stress(MAPS) 195 mp–350 mpa
Coil width
2 Working speed 5m/min
3 Main machine driving motor(kw) 3kw Depends on actual
4 Hydraulic power 5.5KW Depends on actual
5 Total power 8.5kw Depends on actual
6 Roller diameter 60mm Depends on actual
7 Number of station 9 steps Depends on actual
8 External dimensions(L×W×H, m) 5.5M×0.8M×1.5M Depends on actual
9 Machine weight 3.8T Depends on actual
10 Material of shaft 45# steel adjustable treatment
11 Shaft outside diameter 70mm
12 Machine frame 350# H steel welded
13 Surface processing The thickness of hard chromium on the roll surface is 0.05mm.



And for the bending type ridge cap, we need to roll forming the raw material to the type you need and then bend it to the degree you need. By this way, we can make it like a ridge cap , here is one pictures for your reference.

bending ridge cap1
bending ridge cap

























For those two types ridge cap machine we have, when you need, please contact me at any time. Here is my email box cnzt002@zhongtuocn.com.



Videos

Foreign selling light steel keel molding equipment

Foreign selling light steel keel molding equipment

Equipment components
Equipment from discharge machine, the guide frame, forming the host, correction means, length cutting portion, receiving station, consisting of electrical control and so on.

Equipment performance
Unit rolling capacity: Wide -200mm,
Sheet thickness 0.6-1.2mm
Production speed: 15-30 m / min
Total installed capacity: about 5.5kw
Production area: 15 meters long, 2.5 meters wide X
Foreign selling light steel keel molding equipment

My company’s equipment has several advantages
1. Device control PLC control system during normal production set multiple security.
2. bed as steel weldments. And for tempering, eliminate stress, avoid distortion of the fuselage.
3. The molded frame is cast iron structure, and by tempering. Strong high, long service life.
The roller shaft material is 40Cr, and after quenching, the hardness is HB280.
5. The mold material is GCr15, quenching, hardness: HRC56-62
6. The transmission structure of the gearbox. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.

Videos

ZT-900 wall panel roll forming machine

ZT-900 wall panel roll forming machine main technical parameters

Installation size: 4800mm — 1200mm — 1000mm
Molding channel number: 10
Roller material: 45 # steel
Roller plating thickness: 0.05m
Cutter material: Cr12
Forming speed: 9-10m / min
Electronic control system: Industrial computer PLC control
Drive: count accurately, anti-knife function (optional)
Host power: 3kw
Hydraulic station power: 3kw
Plate thickness: 0.2-0.6mm
Expand sheet width: 1000mm

20151015160828 20151015160845
Zt-900 wall panels roll forming machine pressure plate connected to the roof to break the traditional practice of using screw gun connection,installation methods is use 45 football snaps installation ,make the roofing have better waterproof.By zt-900 wall panels forming machine roll forming a pressure plate ,not only dignified and elegant,beautiful novel,and the appearance of smooth,corrugated uniform,high utilization,high strength,high degree of automation,low cast,durable.This zt-900 wall panel forming machine is widely applied to large and medium enterprises civil construction,such as factories,machines garages,hangars,stadiums galleries,theaters and so on .

HTB1l1nDIpXXXXcvXXXXq6xXFXXXO

ZT-900 wall panels forming machine features

1.fireproofing:color composite sandwich panels surface meterial and insulation materials non-combustible material,fully able to meet fire code requirements.
2.High intensity: zt-900 wall panels forming machine using high-strength steel for the substrate (anti-tensile strength 5600KG / CM) coupled with the most advanced design and roll forming, with excellent structural properties.
3.Durability:Various studies have shown that ,and more than 40 years abroad widely used confimed,with a special color coating steel shelf life of at 10–15years,every 10 year after spraying anti-corrosion coatings,lumber life of up to 35 years.
4.Installation is quick: the light weight composite panels, splice installation and can easily cut characteristics, determine its simple installation, can greatly improve efficiency, saving period.
5.Beautiful: pressure plate clear lines of up to dozens of species of colors, can meet the needs of any style buildings, to achieve satisfactory results.
