Fully Automatic Multi Hole Cable Tray Roll Forming Machine
Uncategorized
This intelligent fully automatic cable tray production line can manufacture full-spec perforated steel cable trays in large batches. It processes steel sheets from 0.5mm to 2.0mm thickness, supports finished tray width 50-600mm and height 50-100mm. Stable online punching & continuous roll forming runs at 6-12m/min, the whole line covers 35×2.0×2.0m workshop space, with precise size tolerance ±1mm length & width, 90°±2° profile angle. Widely used in building electrical engineering, power construction and data center cable wiring projects, all technical parameters are 100% consistent with original factory drawings and fully verifiable.
Core Customer Focus Technical Parameters
| Parameter Item | Original Accurate Factory Data |
|---|---|
| Whole line floor space | 35m(L)×2.0m(W)×2.0m(H) |
| Applicable steel strip width | 150-850mm |
| Applicable steel sheet thickness | 0.5(±0.03)-2.0(±0.03)mm |
| Finished tray bottom width | 50-600mm |
| Finished tray side height | 50-100mm |
| Finished product length | 2000-6000mm |
| Online punching production speed | 6-12m/min (decided by product length & hole quantity) |
| Product dimensional tolerance | Length & width: ±1mm; Profile angle: 90°±2° |

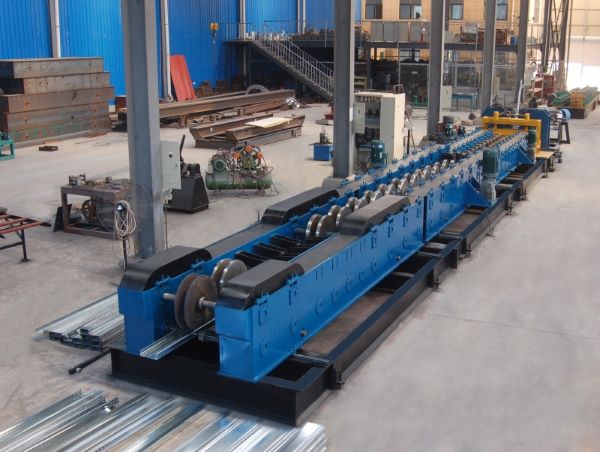

Fully Automatic Cable Tray Production Line – Overall View
Standard Automatic Production Process

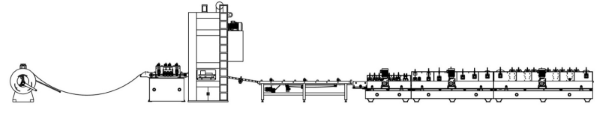

Fully Automatic Cable Tray Production Line – Process Flow Diagram
Decoiler → Servo feeding integrated machine → Punch press punching and cutting → Conveying platform → Roll forming → Finished product output
Full closed synchronous linkage production achieves uninterrupted processing from raw steel coils to finished perforated cable trays. High-precision servo feeding ensures stable hole position accuracy and consistent profile size during long-time continuous mass production.

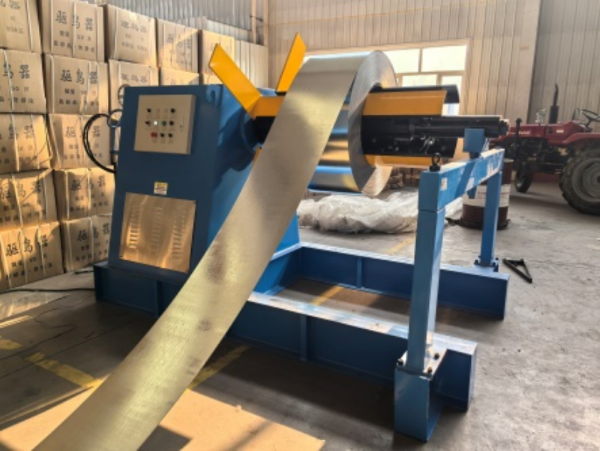

Fully Automatic Cable Tray Production Line – Decoiler Detail
Finished Cable Tray Profile & Structure Types
The machine produces standard U-shaped perforated cable trays, supports customized hole spacing and hole arrangement. It perfectly matches trough type, pallet type and ladder type cable tray standards, with regular right-angle section, high structural rigidity and good load-bearing performance. Finished products can be galvanized, sprayed and anti-corrosion treated to adapt different working environments.
Fully Automatic Cable Tray Production Line – Finished Product Stacks
Rich Engineering Application Scenarios
- Widely applied to industrial factory power distribution, indoor weak current wiring and large-scale data center cable arrangement systems.
- Suitable for subway rail transit, municipal pipe gallery and new energy power station long-distance cable laying projects.
- Perfectly matches commercial building, office building and underground garage centralized electrical wiring installation.

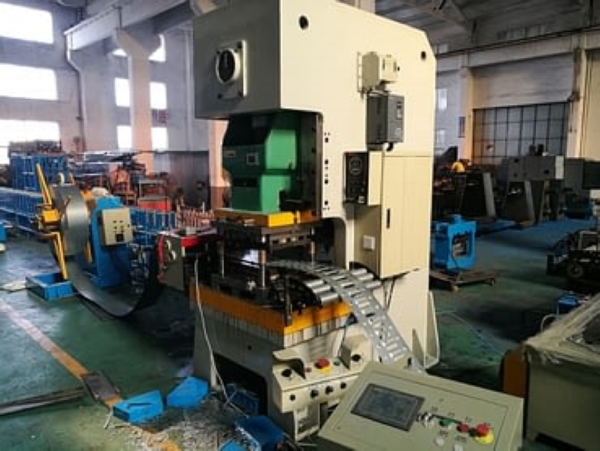

Fully Automatic Cable Tray Production Line – Punch Press Operation
Outstanding Equipment Advantages
- High-hardness Cr12 forming rollers and 65mm main shafts have excellent wear resistance, maintaining stable precision for long-term operation.
-
26 groups of progressive forming stations ensure smooth and standard profile shaping without deformation.
- Integrated online punching function removes secondary processing procedures and greatly improves production efficiency.
-
Stable heavy-duty frame structure effectively resists mechanical vibration and reduces equipment failure rate obviously.
As professional manufacturer of electrical cold roll forming machinery, we provide stable and customizable cable tray forming solutions. Reliable equipment quality and flexible specification adjustment help global electrical accessory factories expand market competitiveness steadily.
