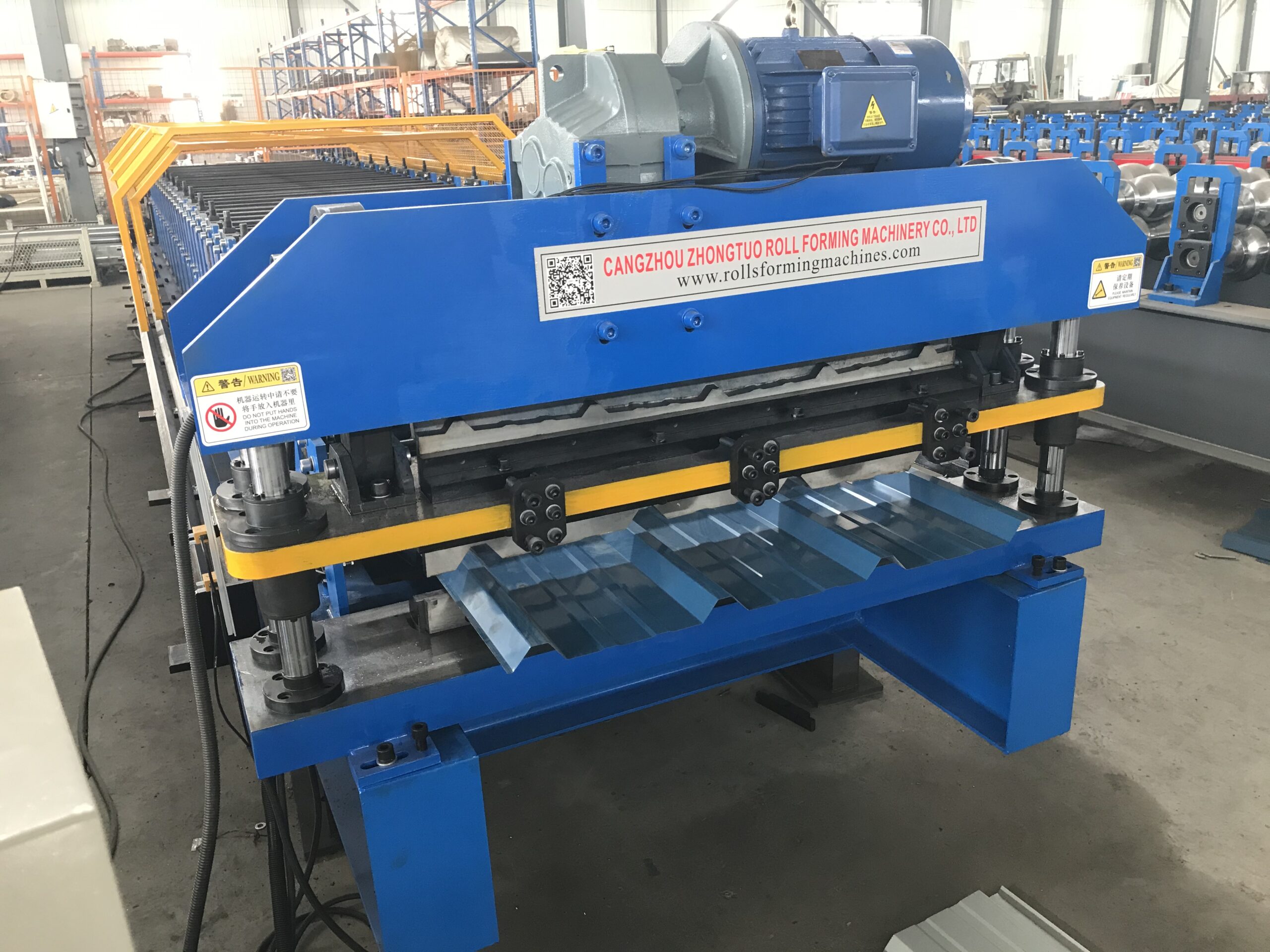

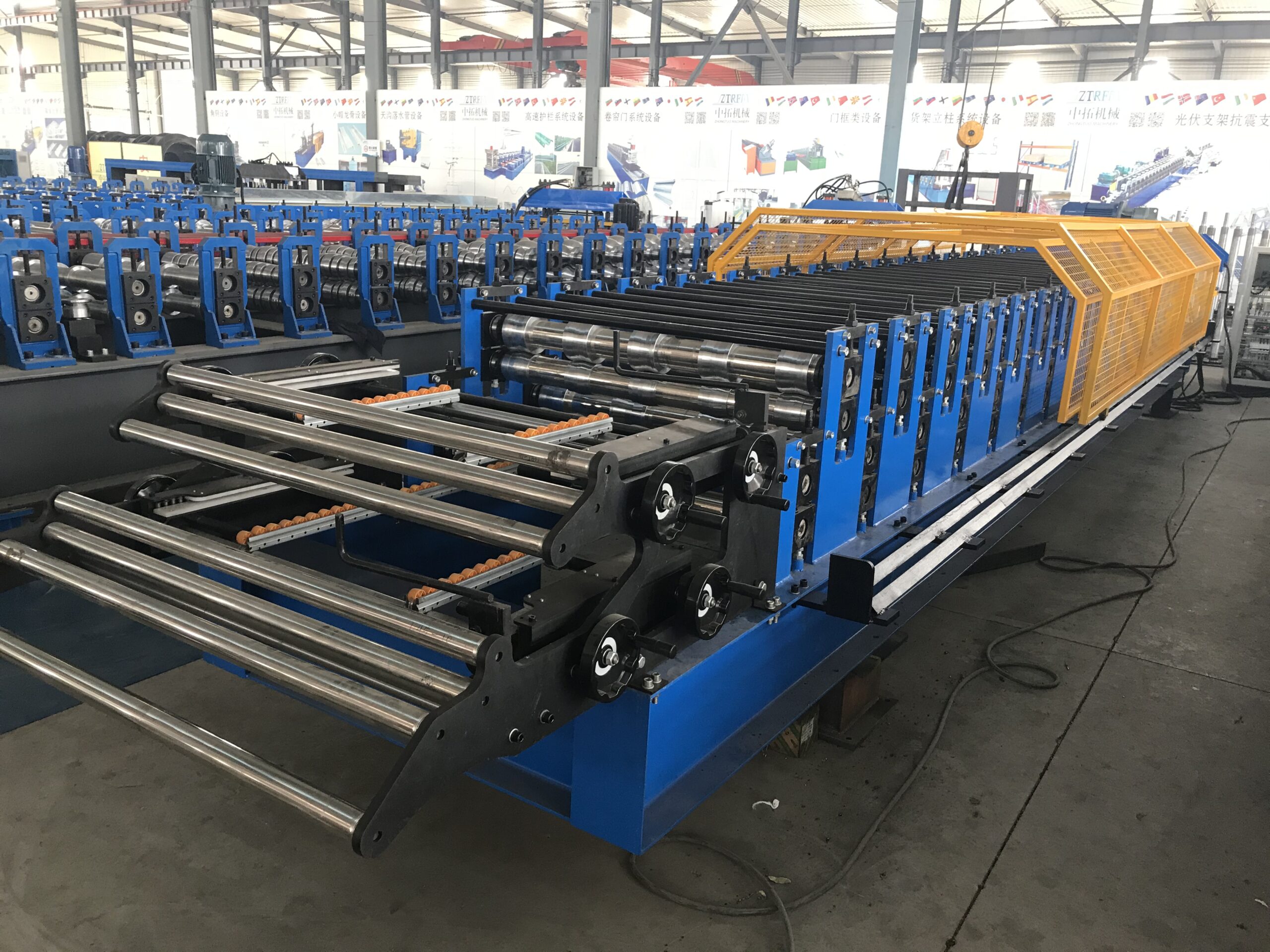

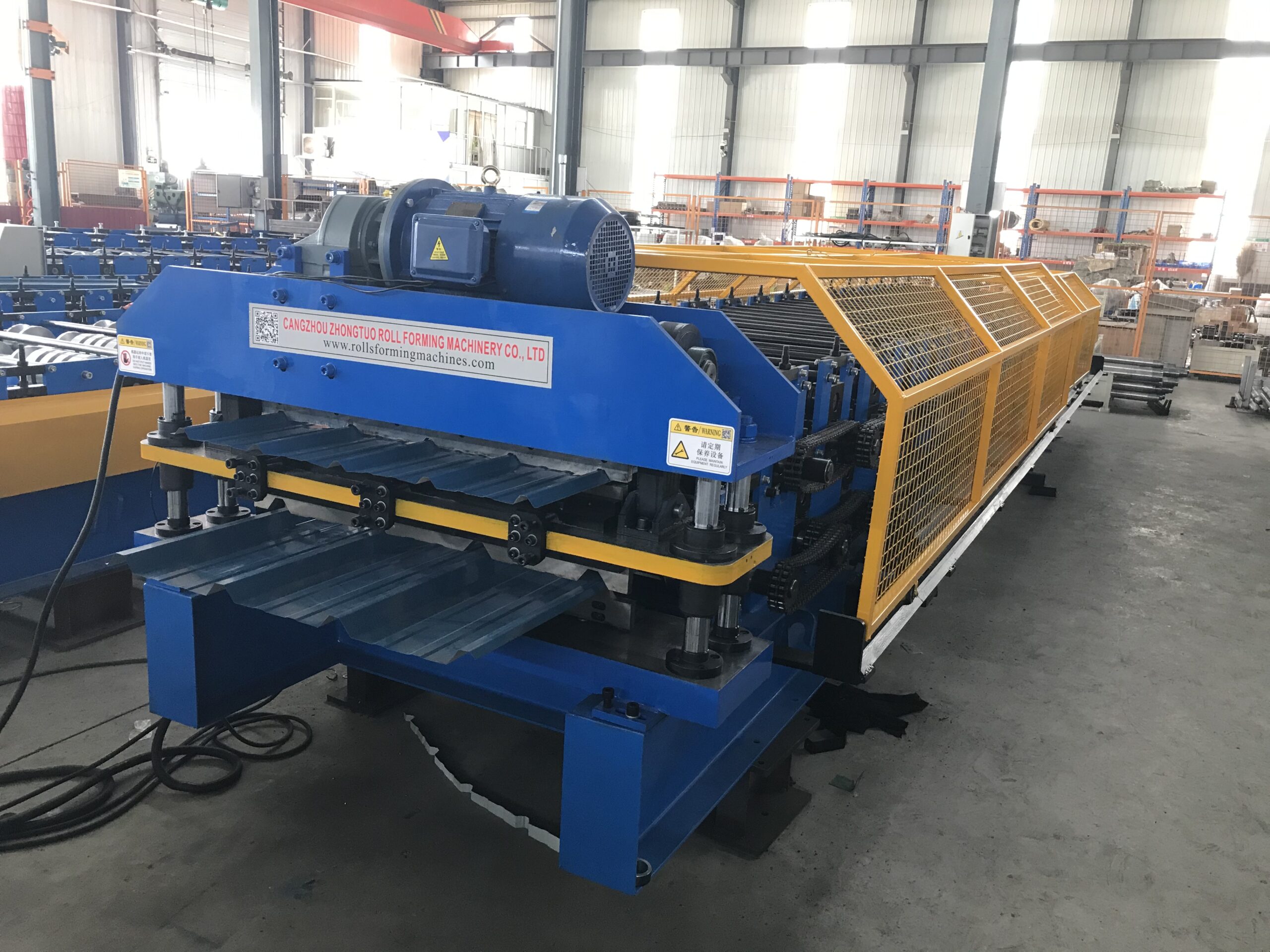

Double Layer 36″ Roof Panel Roll Forming Machine 5 Rib Ag Panel PBR Roof Roll Former
Double Layer 36″ Roof Panel Roll Forming Machine. 5 Rib Ag Panel PBR Roof Roll Former
The Ag Panel and R-Panel Machine is a versatile piece of equipment designed to produce two of the most popular metal roofing and building profiles in USA market today. These profiles, known for their durability, versatility, and aesthetic appeal, are widely employed in agricultural, commercial, and residential construction. Investing in an Ag Panel or R-Panel Machine ensures high-quality production of these essential building components.
* PBR, R Panel, and Ag Panel, 36″ wide panels
*Ag panel 5 rib on one level, ribs 9″ O.C 36″ wide panels.
*PBR/R-Panel 4 rib on the other level, ribs 12″ O.C 36″ Wide Pan
*Siemens Computer control
*Hydraulic Shear and three phase or single phase power supply
*High production (chain transmission or gearbox transmission)
* De coiler included (Hydraulic decoiler or manual decoiler for choose)
* Rollout table included. (Simple receiving table or automatic stacker for choose)
*Electric cut and pre cut for choose
|
ZTRFM full automatic trapezoidal roof tile making machine Ag panel R panel PBR panel roll forming machine for American customer |
||||
|
1.Formed Material |
PPGI,PPGL |
Material Thickness:24/26 Gauge （0.4-0.6 mm) Width:43inch(1092mm)
|
||
|
2.Decoiler |
Hydraulic decoiler(optional) |
Manual decoiler(will give you as free） |
||
|
3.Main body |
Roller station |
18+17 rows(As your requirement) |
||
|
Diameter of shaft |
80mm solid shaft |
|||
|
Material of rollers |
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm) |
|||
|
Machine body frame |
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate. |
|||
|
Drive |
Gear and Double Chain transmission or gear box transmission |
|||
|
Dimension(L*W*H) |
9.5m*1.65m*1.5m |
|||
|
Weight |
7.5T |
|||
|
4.Cutter |
Automatic |
Cr12mov material, no scratches, no deformation |
||
|
5.Power |
Motor Power |
7.5KW |
||
|
Hydraulic system power |
5.5KW |
|||
|
6.Voltage |
380V 50Hz 3Phase |
As your requirement |
||
|
7.Control system |
Electric Box |
Customized(famous brand) |
||
|
Language |
English(Support multiple languages) |
|||
|
PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
|||
|
18.Forming Speed |
15-20m/min |
The speed is adjustable (15m/30m/60m for choose) |
||
