Drip edge angle flashings F5 T-style FHA Z bars Roll Forming Machine

There is no fast way to produce trims than with a Roll Former Trim machine. A trim roll former can produce 80-100 feet of trim per minute, making over 38,000 feet of trim possible in just one 8-hour workday.

Drip edges, angle flashings, F5 T-style profiles, FHA , and Z bars are all integral elements in the construction industry, particularly when it comes to roofing systems and water management. Each component plays a distinct role in ensuring that buildings remain weatherproof and structurally sound.

Our trim edge forming machine are made to meet commercial, residential, or industrial needs. Trim profiles vary depending on building type, roof type, or marketplace. Trim drip edge roll former we offer include: J Channel, Ridge Cap, Fascia, Rake Trim, Drip Edge, Drip cap, Corner trim, metal roof ridge cap and many more.

We are manufacturers of drip edge roll forming machine. I will introduce the finished products produced by drip edge machine and drip edge machine for sale configurations.

T-style profiles are often utilized in roofing systems to provide additional support and stability. They are shaped like the letter ‘T’ and can be used as a ridge cap or as part of a valley flashing system. The T-shape design allows for increased surface area, which aids in securing the profile to the roof deck and improving its structural performance.

2-1/2″ F5	3″ F5
Nom Size* T-Style 10 ft length Painted Steel and Aluminum	Nom Size* T-Style 10 ft length Painted Steel and Aluminum

FHA drip edges refer to specific types of drip edges that meet certain standards set by organizations like the Federal Housing Administration (FHA). These standards ensure that the drip edges are of sufficient height and material quality to effectively channel water away from the roof and siding.

2″ FHA	2-1/2″ FHA	3″ FHA
Nom Size* 10 ft length Galvalume Steel Meets or exceeds USA Building Code	Nom Size* 10 ft length Galvalume Steel Meets or exceeds USA Building Code	Nom Size* 10 ft length Galvalume Steel Meets or exceeds USA Building Code

Z bars are long, flat metal strips that are bent at a 90-degree angle to form a ‘Z’ shape. They are commonly used as straps to hold shingles or other roofing materials in place, especially during installation or repair work. The Z bar provides a secure anchor point, ensuring that the roofing materials stay put and maintain their position over time.

In summary, drip edges, angle flashings, F5 T-style profiles, FHA, and Z bars are essential components in creating a resilient and watertight roofing system.

For roll forming machines, we can learn more through the video link above.

The drip edge roll former for sale process is:

1: Load the steel coil on the uncoiler

2: Input the steel coil into the forming machine

3: PLC sets parameters, length, quantity, and turns on automatic production

4: The collection rack collects products.

5: Packing

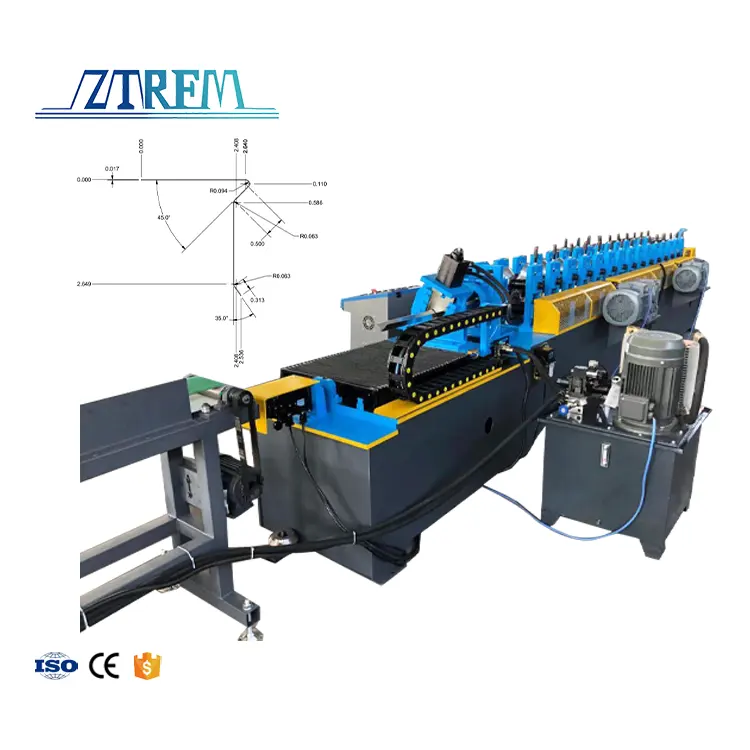

Technical parameter of Drip edge roll forming machine :

Hydraulic Decoiler:

Main drip edge roll former:

Shearing system:

Receiving table:

Hydraulic oil pump station:

PLC control system:

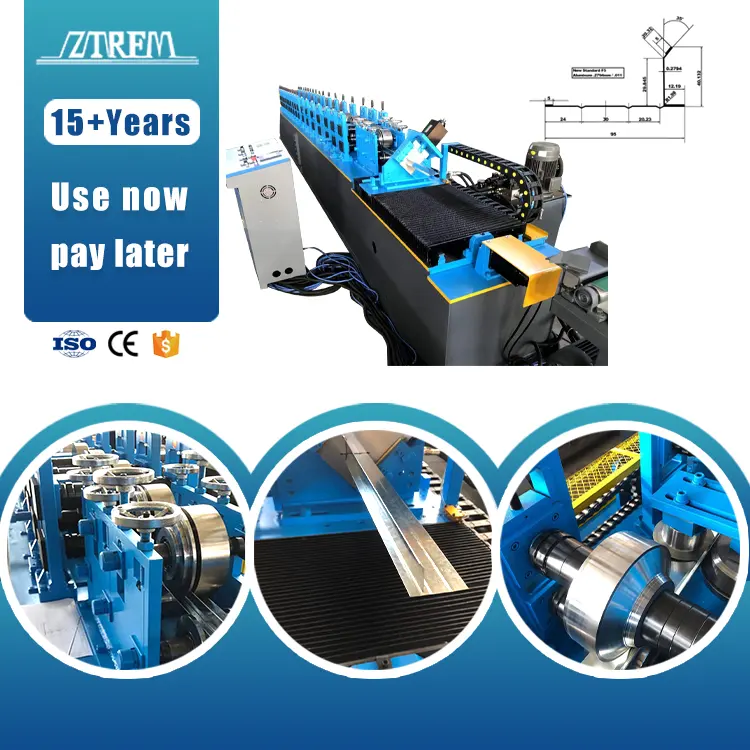

Our machine frame use vertical iron casting frame to ensure stable running, and use chains driving. Will have protective cover box on it.

The roller use Cr 12 material, this kind of material hardness is more higher than other kind of material, then can provide more longer service life. The rollers have heat treatment, chromed treatment, quenched treatment to ensure it’s quality.

For the cutting device, we adopt tracking cutting to imporve the cutting speed, the machne speed max can reach to 40 m/min.

About the product collect tablel and packing device, we adopt automatic type. The product collect table can transfer the product automatically to packing table.

If you want to know more about 2×3 Gutter Apron FHA american metal roof flashing machine aluminium drip edge trim roll former, please contact us.
