High accuracy galvanized steel weld pipe roll forming machine metal tube roling machine
The information fo the high accuracy galvanized steel weld pipe roll forming machine metal tube roling machine
Feeding trolley —-uncoiler—- shovel head machine—- pinch—-shearing—- welding—-deliver—-stroehouse —-’flattening —-forming—-welding guidance—-extrusion welding—- scraping scar —-water cooling—-sizing —-straightening—- flying saw —-roller—-bench—-packing—-warehousing
the main specifications of welding pipe products
| name | type | specifications |
| pipe | circular pipe diameter | 50–152mm |
| square pipe | 40 square,50 square,100 square,120 square | |
| rectangular pipe | 60—40,60—80,140—100 | |
| working speed | 30-70m/min | |
| lenth | 6m | |
| width | 2-5mm | |
| water flow | 40-50T/h | |
| reservoir capacity | 70cubic meter |

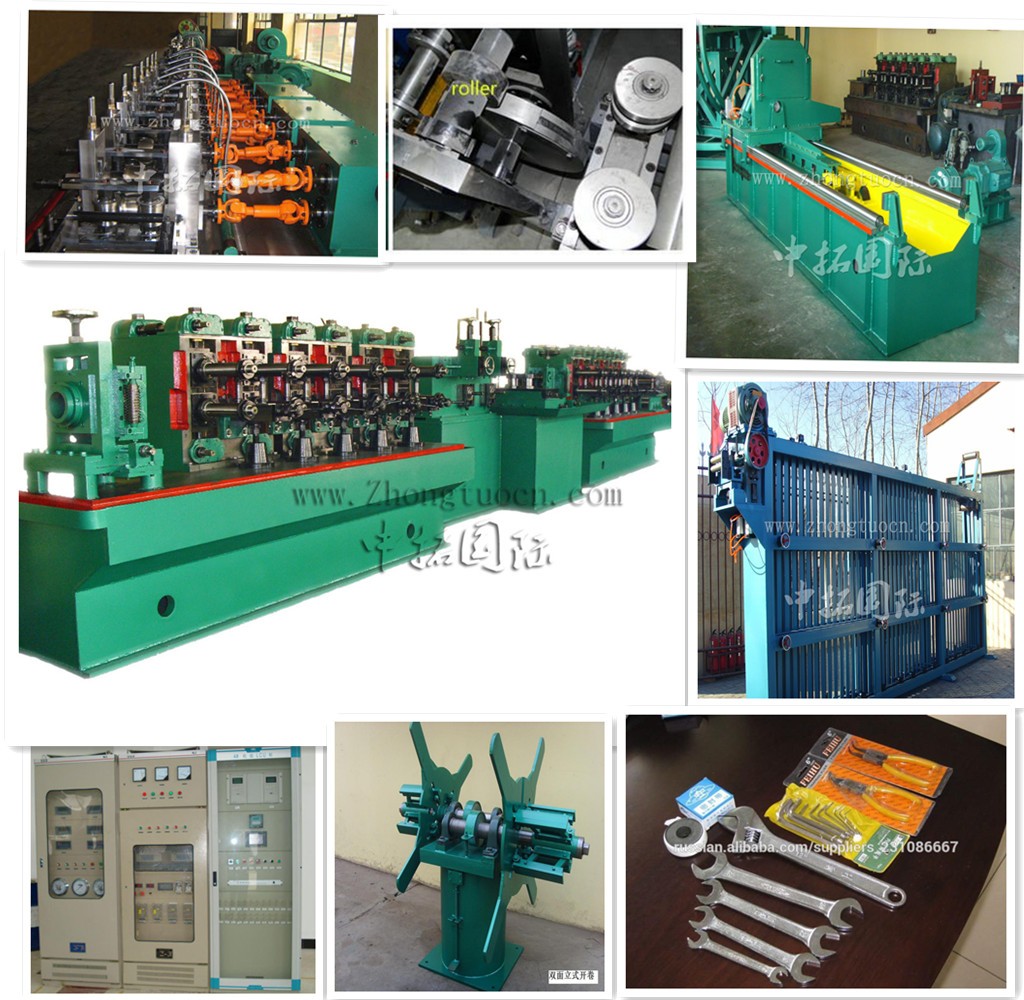

The composition of Automatic welded pipe cold roll former mill
Un-coiler System
Function:the two cone head tighten the steel coil through expanding its inner hole,driven by a motor,the two cone head rotation,and the steel coil will strip apart.
Structure:cone seat device;slideway device;cylinder pushing back device;cone head rotating device;braking device;disconnecting devie
the outside diameter of steel coil Φ1000-1600mm;
the weight of steel coil 6T(max);
The cone head driving motor 4KW
Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
