Octagonal tube making machine Steel Octagon Tube Pipe Roller Shutter Door Roll Forming Machine
Description: Octagonal Tube roll forming machine/ Interlocked round pipe roll forming machine could be used to make Octagonal shape pipe in batch and fully automatically.
Octagonal Tube
As its name shows, The octagonal tube is actually a interlock seam locked profile with slotted holes. The octagonal roll forming machine is a cost effective, flexible production line. It can adopt inline punching for hole punching and raft cassette system for changing the size of manufacturing product without changing any roll tooling.
Octagonal Tube is new type building material. Octagonal Tubes are widely used in petrochemical, power plant desulfurization, aerospace, ships, machinery, communications, electronics and other fields. In the market, there are two types Octagonal Tubes, seamless and interloacked. The seamless Octagonal Tube is also made by cold draw pipe making machine. Here I will mainly show the interlock Octagonal Tube pipe with the interlocked seam.
Octagonal Tube roll forming machine
Octagonal Tube roll forming machine is mainly for making interlocked pipe of Octagonal shape by rolll forming principle. The pipe length could be specified in PLC system casully. But for the pipe diameter is only for 40mm. If you want to make other diameter pipe, you have to buy another set of molds.
Now for the Octagonal Tube of diameter 40 and 60mm, we could design to make by one machine. By this way, if you are the interlocked tube producer it can save lots of investing cost. And we will use the flying cutting saw and no need to change the cutting baldes.

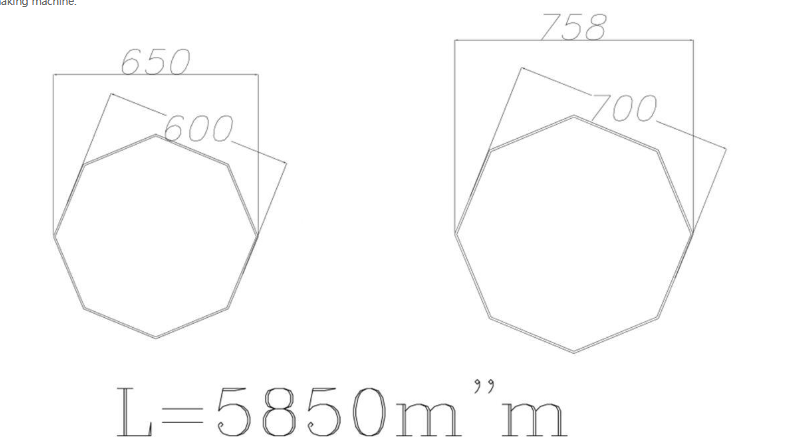

By the above Octagonal tube shape changing process, you can know how the tube is made from the strip.

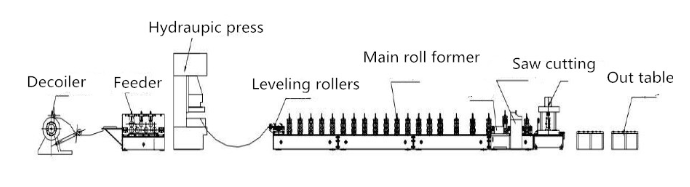

Working flow of Octagonal Tube roll forming machine:
By the above Octagonal tube shape changing process, you can know how the tube is made from the strip.
Elements of the Octagonal Tube roll forming machine
| NO. | Item | Mode |
| 1 | Decoiler | Type: Cantilevertype
Loading ability: 3-5T ID: φ450-φ550 OD:1200-φ1600 |
| 2 | Leveling machine | 11 leveling rollers, five roller uppers ,six rollers down |
| 3 | Servo coil feeder | NCF300 |
| 4 | Four pillars pressing machine | 60 Ton, Punching mould: one set |
| 5 | Punching moulds | Gcr12 |
| 6 | Main roll forming machine | 23 roller station |
| 7 | Shearing system | Flying cutting saw |
| 8 | PLC control system | PLC |
| NO. | Item | Parameters |
| 1 | Roller station | 23 stations, Three dimensional correction |
| 2 | mold material | Gcr12 , quecning at HCR58-60, degrees, precision processing |
| 3 | Shaft diameter | 60mm diameter, 40R quenched finishing |
| 4 | Main Machine frame | 300H steel welding, table with 16mm steel plate Longmen processing |
| 5 | side plate | 22mm steel plate processing, polishing |
| 6 | Main machine power | 7. 5KW, 2 sets of the motor, the middle way transmission (P=31.75) |
| 7 | Working speed | 3-6m/min |
Octagonal Tube roll forming machine

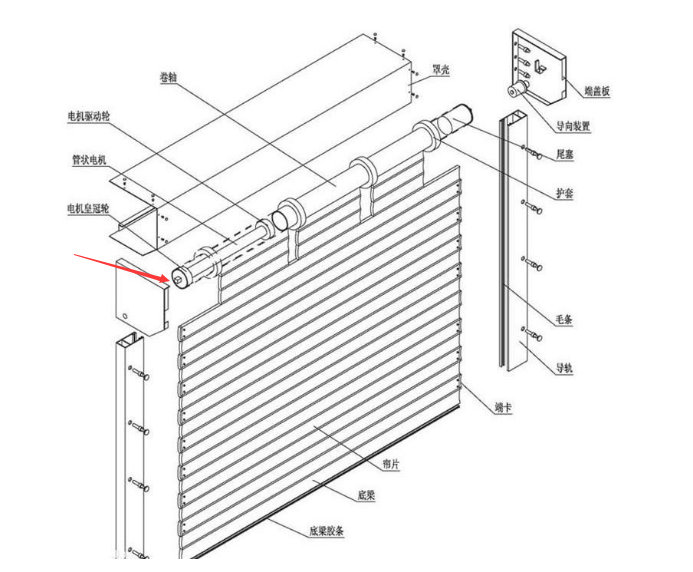

The interloacked pipe of Octagonal pipe will be used in the roller shutter door installation.

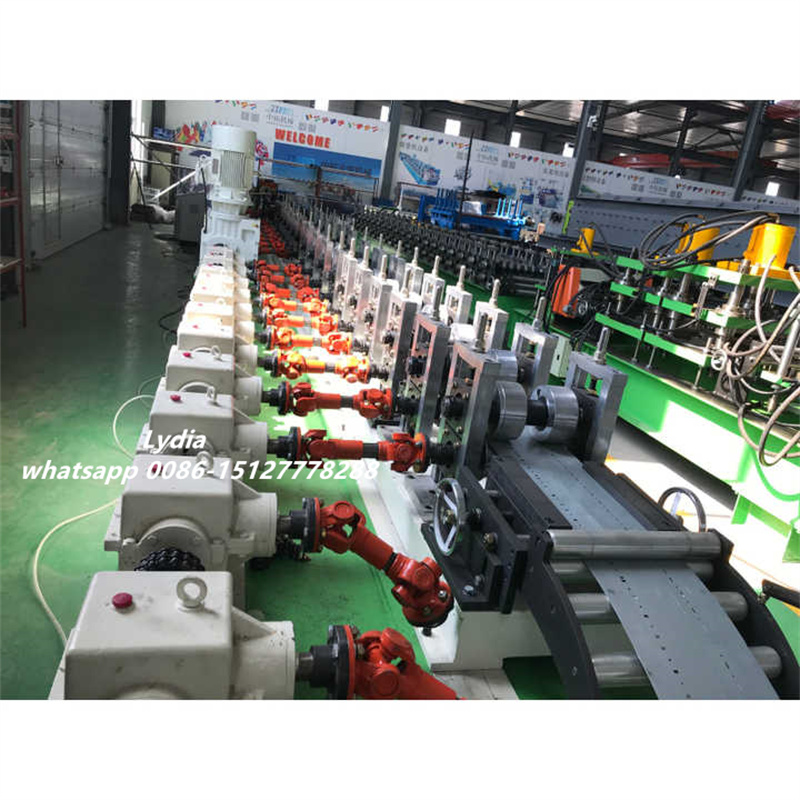

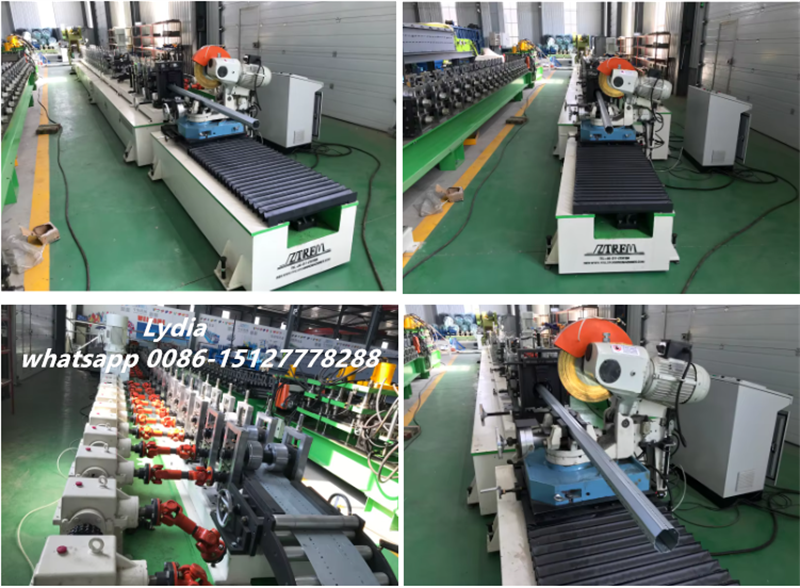

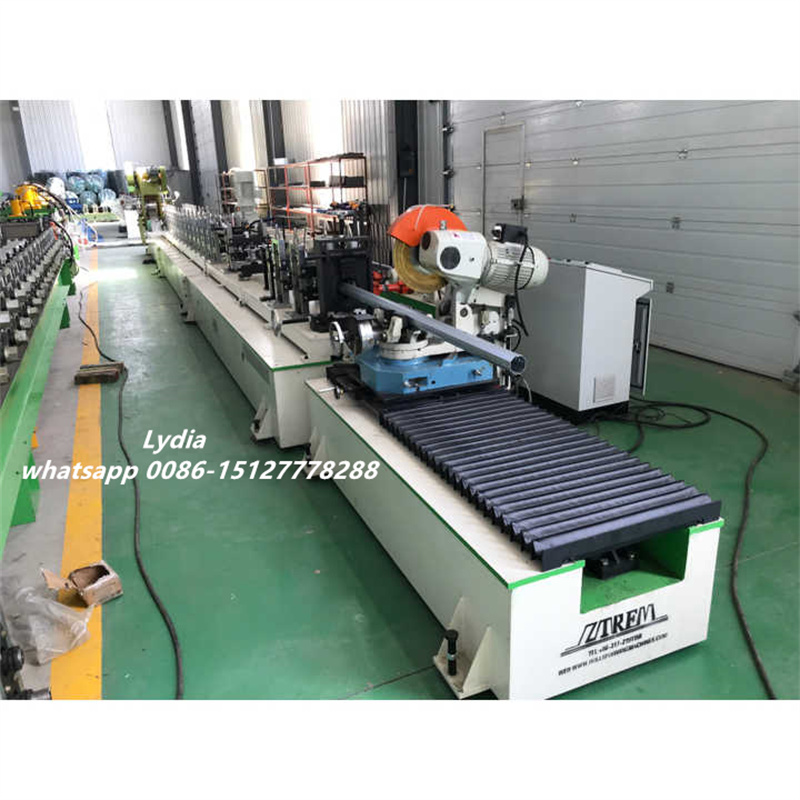

More pictures of the machine :
For this machine, if you have any problem, please contact us at any time.
