Metal Door Machine

Storage large diameter corrugated steel pipe/steel granary rolling forming machine

Storage large diameter corrugated steel pipe/steel granary rolling forming machine

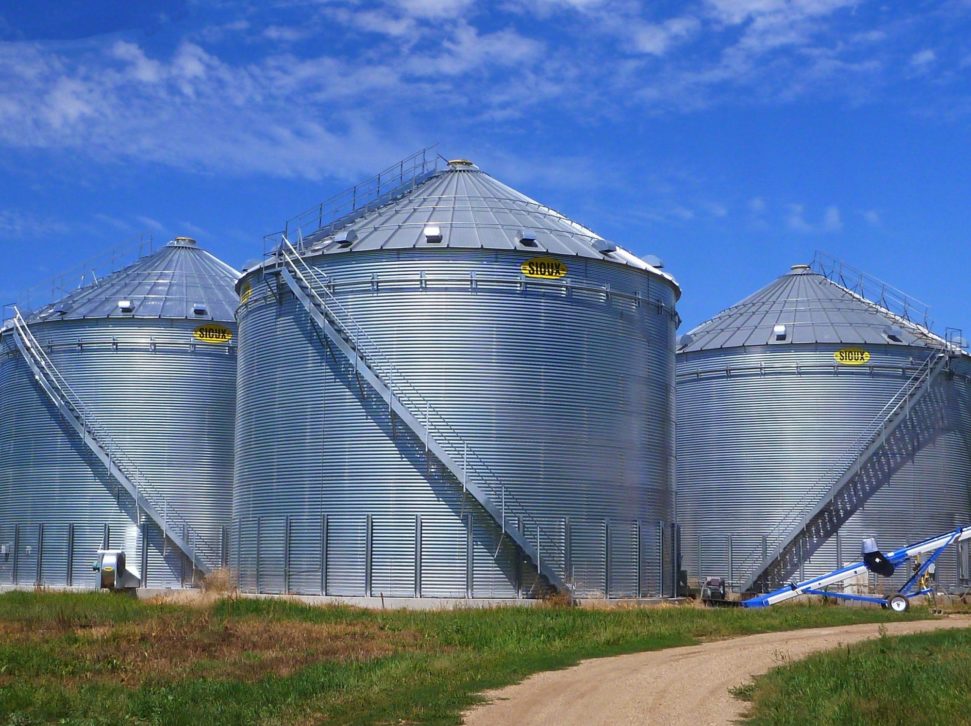

A steel granary is a storehouse or room in a barn for threshed grain or animal feed. Ancient or primitive granaries are most often made out of pottery. Granaries are often built above the ground to keep the stored food away from mice and other animals. Zhongtuo Storage large diameter corrugated steel pipe/steel granary rolling forming machine is designed to make storage large diameter corrugated steel pipes in batch fully automatically.

Here is steel granary for your reference:

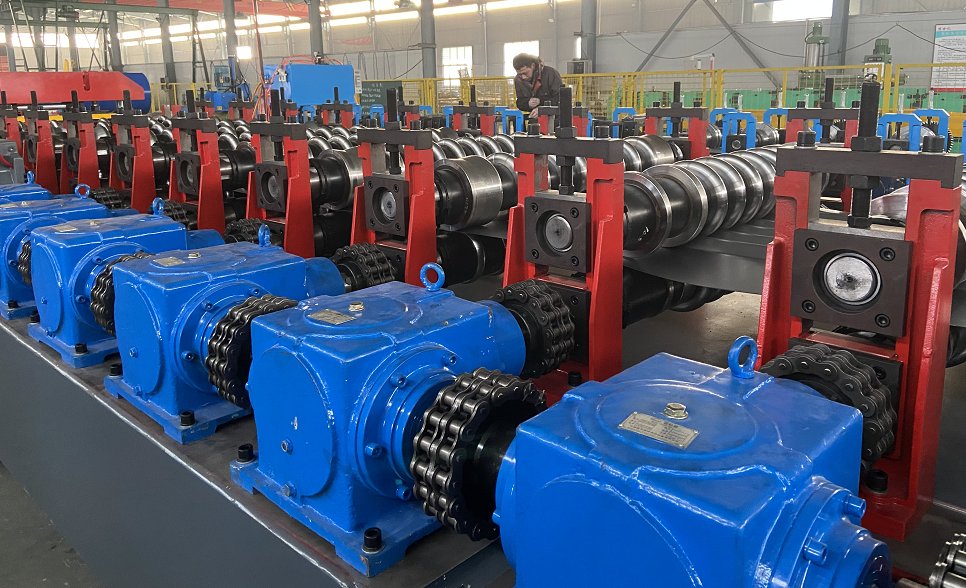

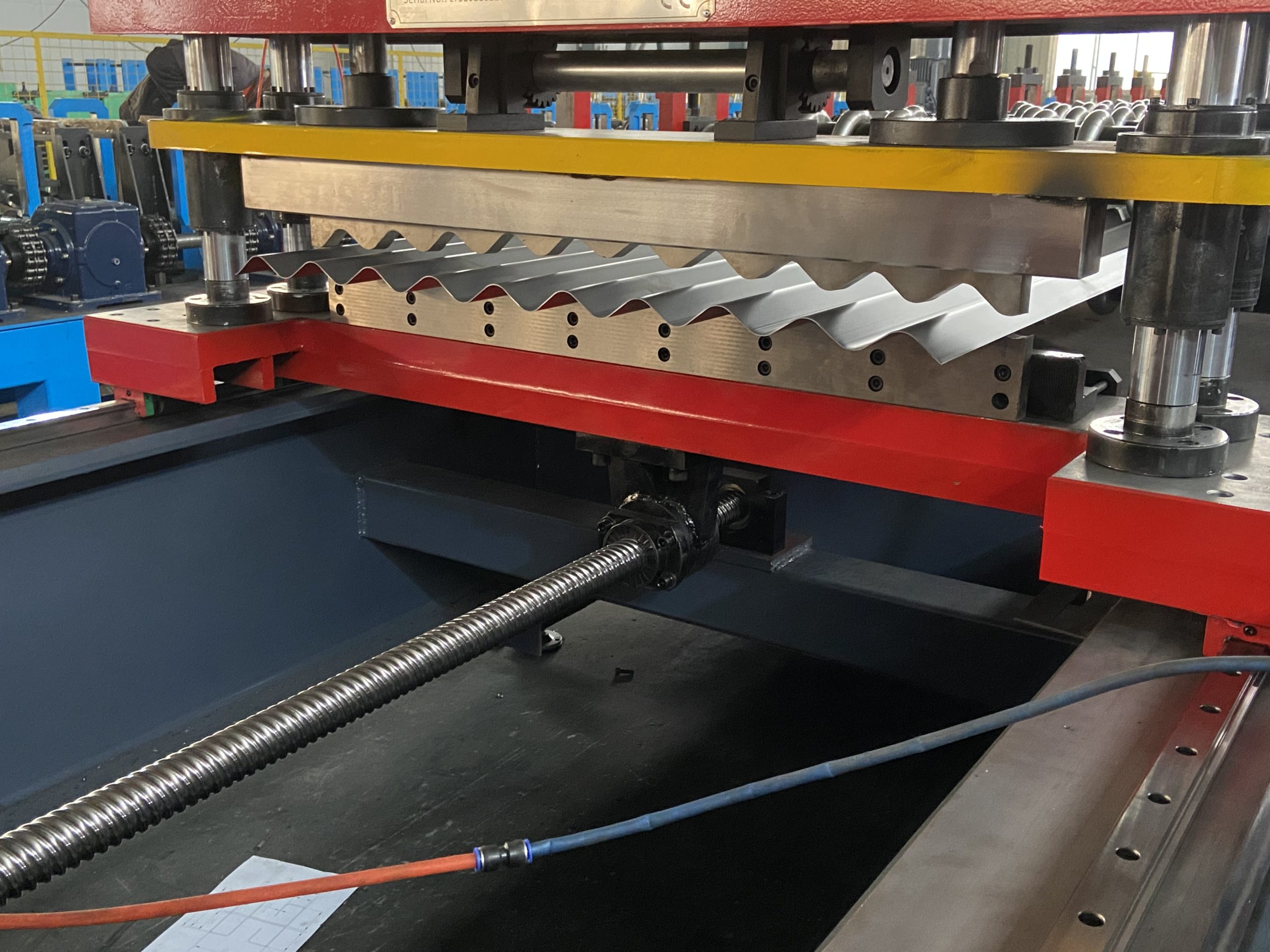

Steel granary rolling forming machine

Steel granary rolling forming machine supported material：

Thickness: 1,0-2.5mm

Minimum yield strength: 345 MPA

Minimum tensile strength: 450 MPA

Minimum elongation in 50 mm is 12 percent.

Galvanizing Standard: G90 (Z275), G115 (Z350), G140 (Z450)

Corrugation profile:

Length of the sheet walls have to be adjustable by PLC.

PLC has to count produced sheet wall quantities.

All bearings will be SKF or FAG.

Design: According to the designed agreed drawing by both sides.

Steel granary rolling forming machine Roll former:

Design: According to the designed agreed drawing by both sides.

Guiding and feeding rollers: included.

Stations: 18-24 pcs

Upper rollers have to be adjustable according to different material thickness

Digital Guiding scales for adjustment will be located at all stations.

All rollers will be coated with crom.

Last 2 stations are designed for modifying different material thicknesses.

1 more station will be added at front side for feeding.

Precutting will be added. Speed: 10-15 m/min.

Driven: By shafts for all rollers.

Cut to length: will be flying model and cut sheets have to be count by PLC.(you can choice)

Length of sheets have to be adjustable by PLC.

Cut to length Tolerance limit: 0,5-1,0 mm

PLC brand: Panasonic

Electrical material brands: Panasonic.

Roller material: A2; GR15; Carbonization. 58-62degree fire treated

Machine dimensions : About 11.8×1.8×1.4m

Machine weight:About 13 tons

Motor brand: Siemens

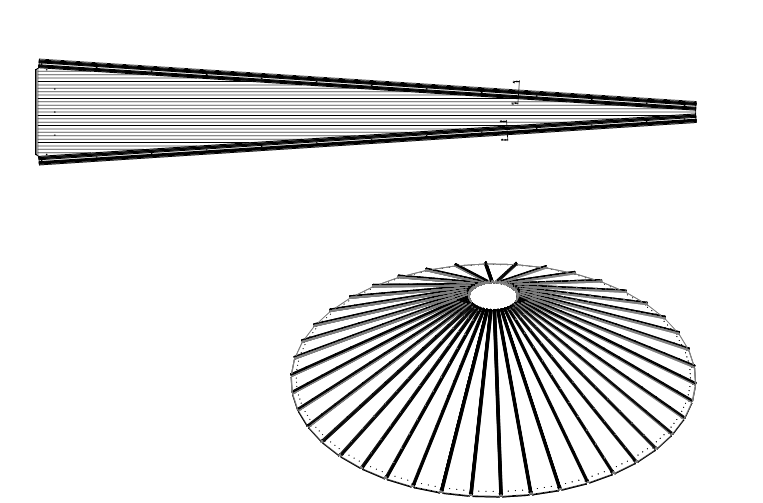

As to the top:

Top Panel Roll former:

Guiding and feeding rollers: included.

Speed: 15 m/min.

Driven: By chain system.

PLC: Panasonic

Electrical materials: Panasonic.

Roller Material: A2; GR15; Carbonization. 58-62degree fire treated

Dimensions: about 9×1.6×1.4m

Weight: about 8tones

Hydraulic power: 7.5Kw

Motor brand: Siemens

Hydraulic station brand: Wansheng from Wuxi China

Shearing: Stop shearing type

Hydraulic power: 3.7kw

All bearings will be SKF or FAG brand.

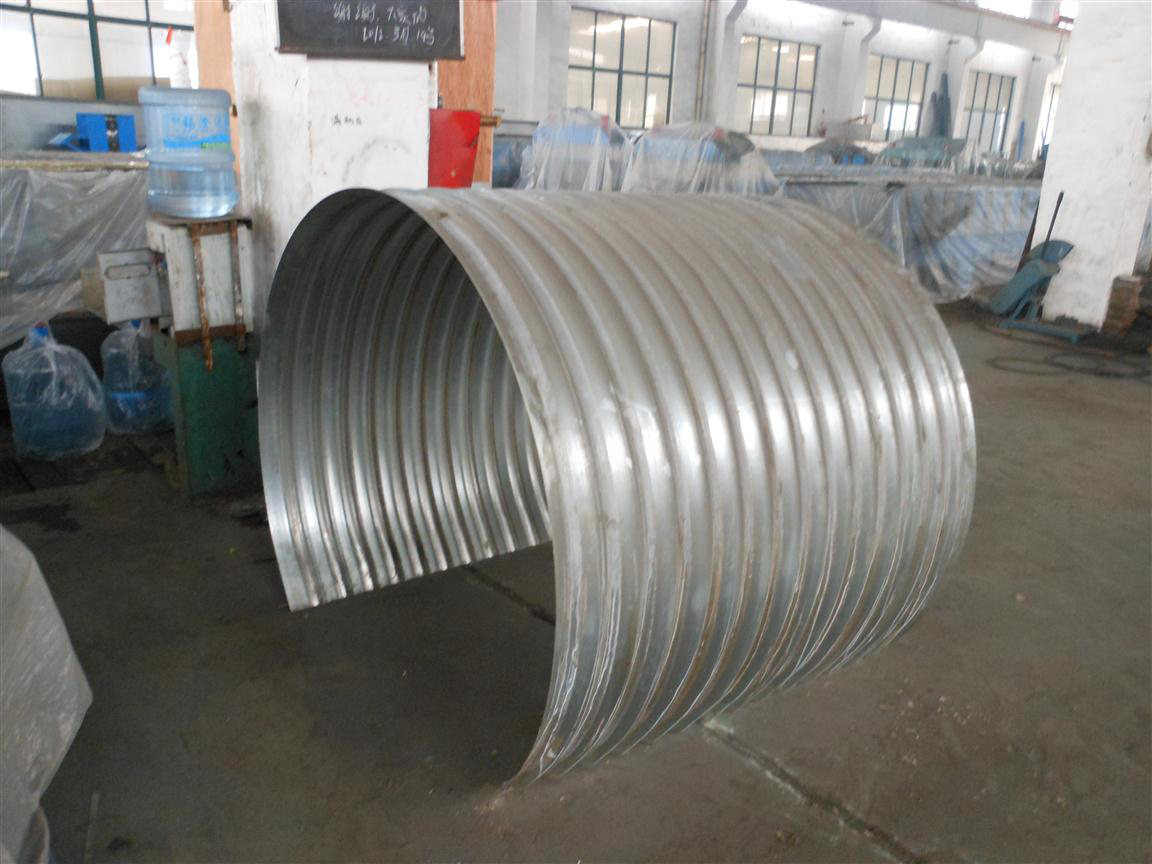

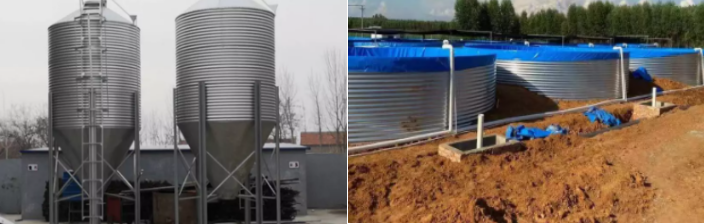

Storage large diameter corrugated steel pipes have other functions:

As to the related elements:

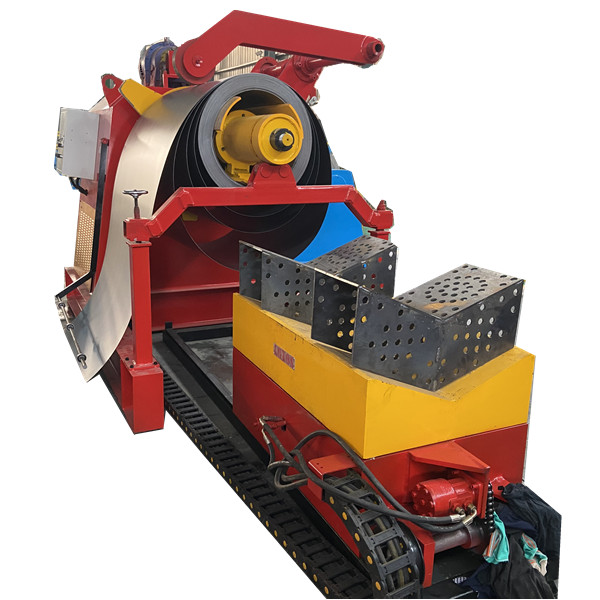

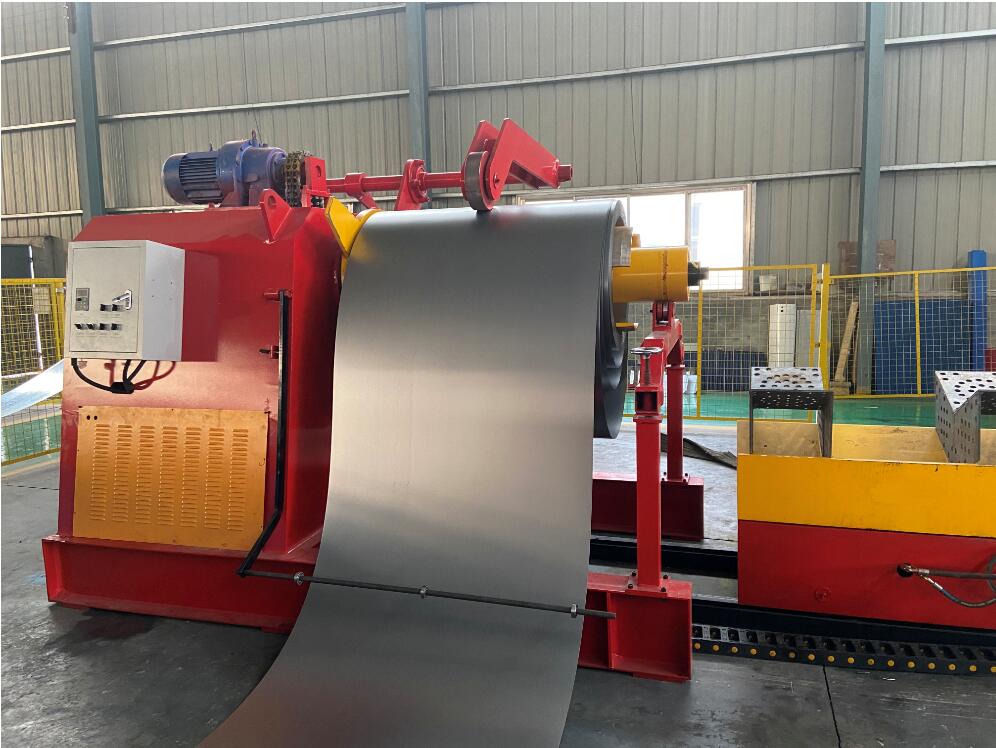

Steel granary rolling forming machine HYDRAULIC DECOILER: You can choose to use the manual one or hydraulic decoiler, as the following picture shows:

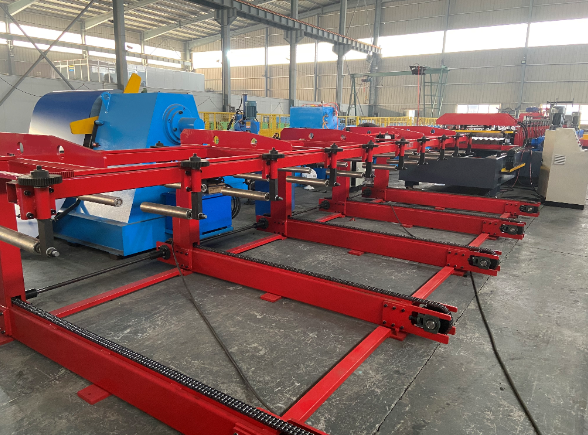

As to the stacker:

All those elements are optional.

If you want to know more details, please contact us at any time.

Metal Door Machine

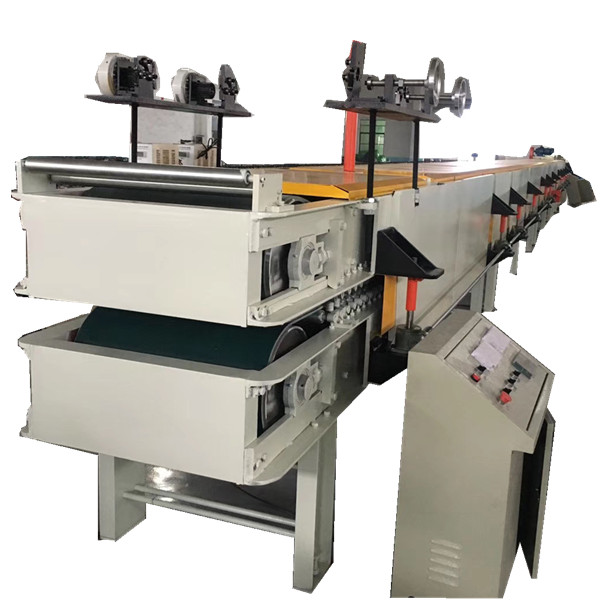

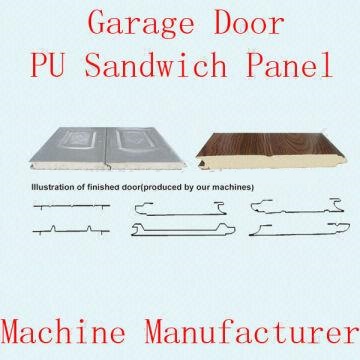

Continuous PU Garage Door Panel Production Line

Continuous PU Garage Door Panel Production Line

Continuous PU Garage Door Panel Production Line is designed to produce the Garage Door Panel in batch fully automatically. Garage door system, surface material we use prepainted galvanized steel sheet and the material thickness from 0.326mm-0.5mm;Thermal insulation material: Polyurethane foam; PU density: 45kg/CBM; Panel thickness could be 38mm, 50mm available; Panel width could be 430mm-610mm; Panel length: According to custom demands, engineering requirements, and shipment conditions;

The Advantages of sectional garage door:
* Smooth running
* Spring safety device
* Secure locking
* Attractive door handle
* Quiet running
* Finger protection on the side cover, roller, panel joint

So based on the needs, Zhongtuo designed the Continuous PU Garage Door Panel Production Line. We take the following drawing profile for example:

Main component of the PU Garage Door Panel Production Line:

NO.  name  quantity
 Main roll former
1 Un-coiler (5 tons ) 2
2 Embossing and firm machine 2
3 Automatic feeder and leveler (N.C) 1
4 Press machine(200ton) 1
5 Square mould 1
6 Upper roll former 1
7 Mark machine (N.C) 1
8 Down panel roll former 2(two type)
9 Double layer construction platform 1
10 Double bridge device and conveyor 1
11 Other conveyor 1
12 Hydraulic system 1
13 Electrical control system 1
2. PRE-HEATING SYSTEM
1 Heating house 1
2  pre-heating system 1
3 electrical control system 1
3.HIGH PRESSURE FOAM MACHINE
1 High pressure continuous foam machine 1
2 Pursing output device 1
3 Electrical control system 1
NO. Name Quantity

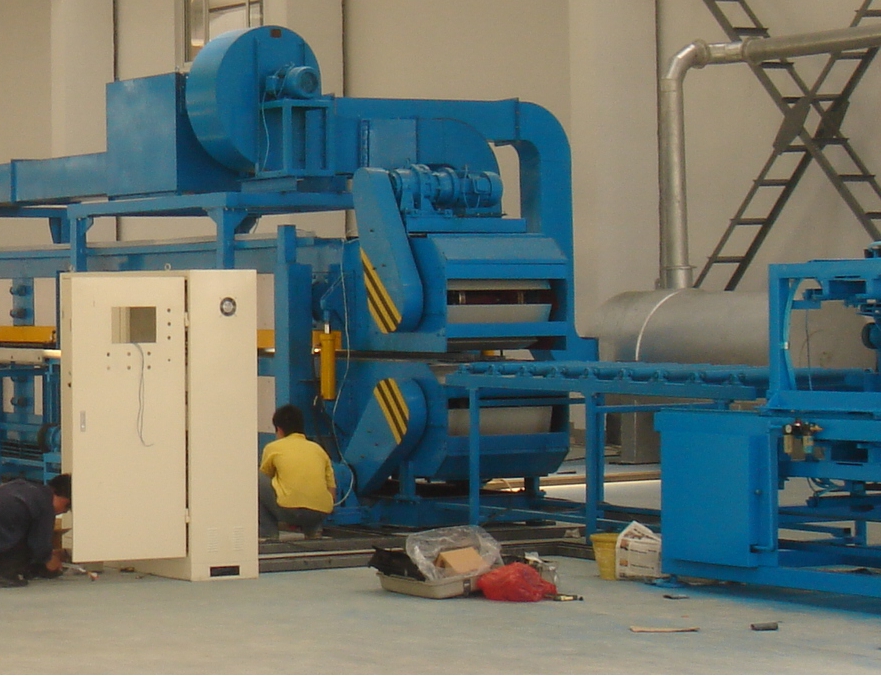

4.  DOUBLE BELT SYSTEM
1 Double belts system（24M） 1
2 Chain supporting system of two side 1
3 Side-chain system 1
4 Heating machine for double belts 1
5 Electrical control system 1
 Thickness and plastic mould
1 Mould & Plastic mould blade 1
6. CUTTING SYSTEM
1 Cutting saw blade 1
2 Conveyor with output table 1
3 Electrical control system 1

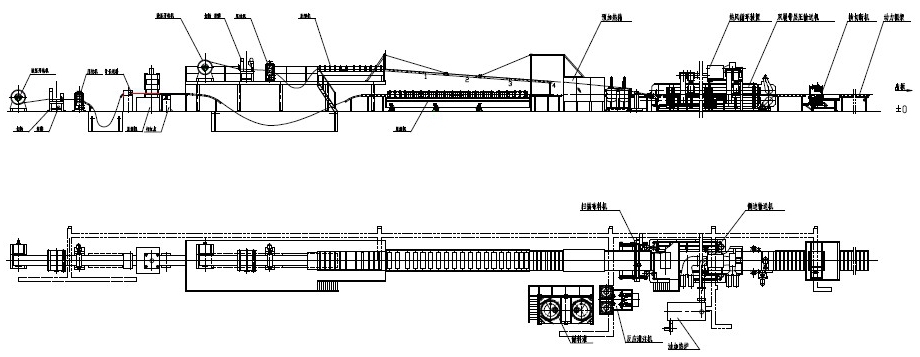

Continuous PU Garage Door Panel Production Line working flow:

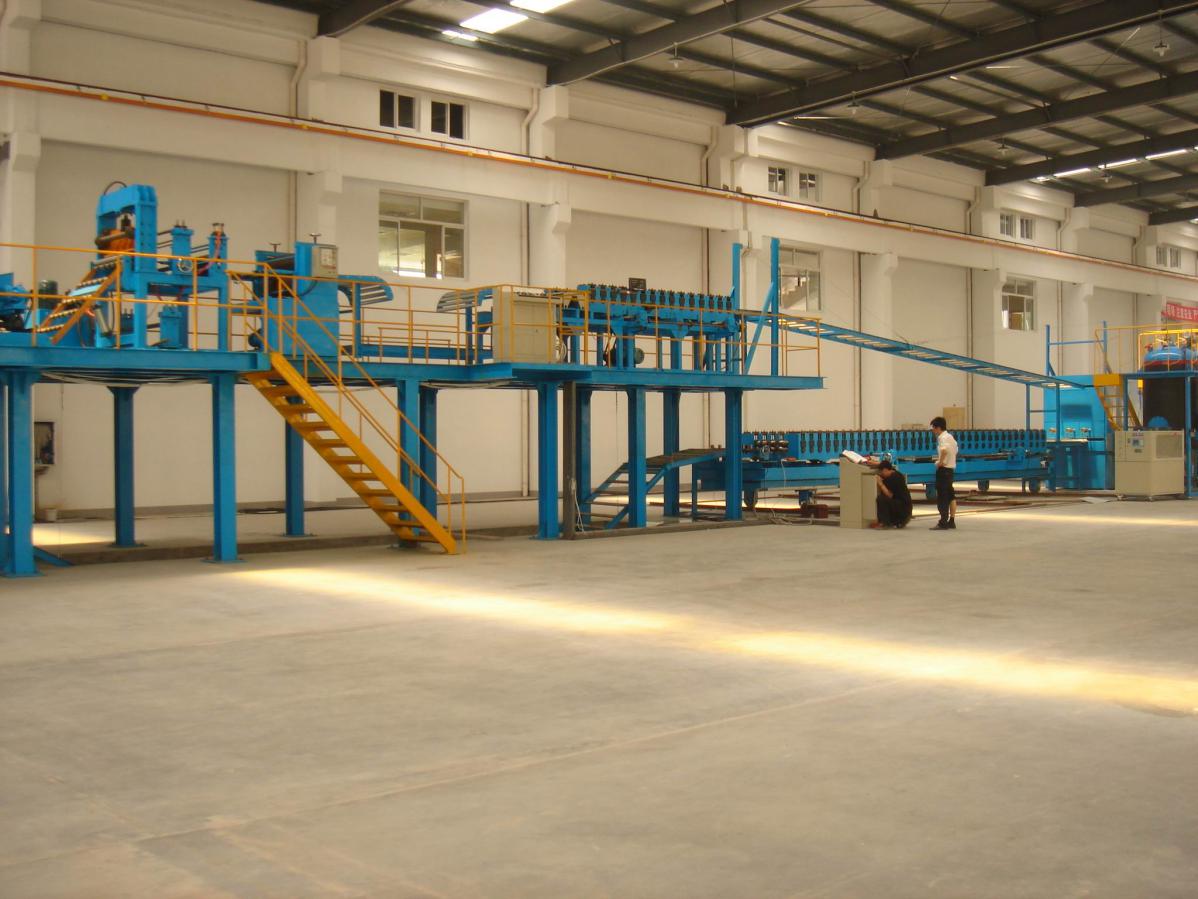

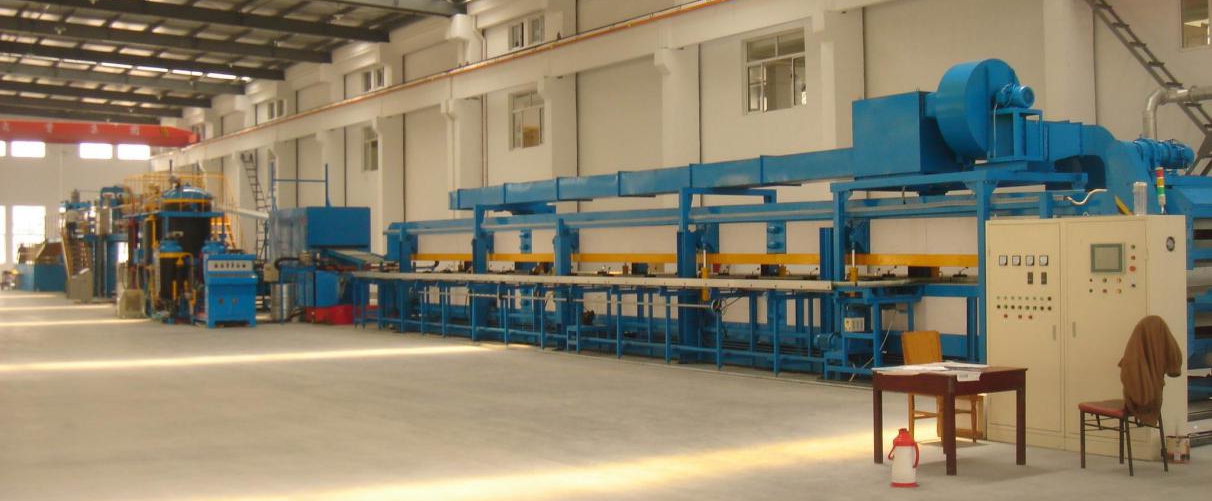

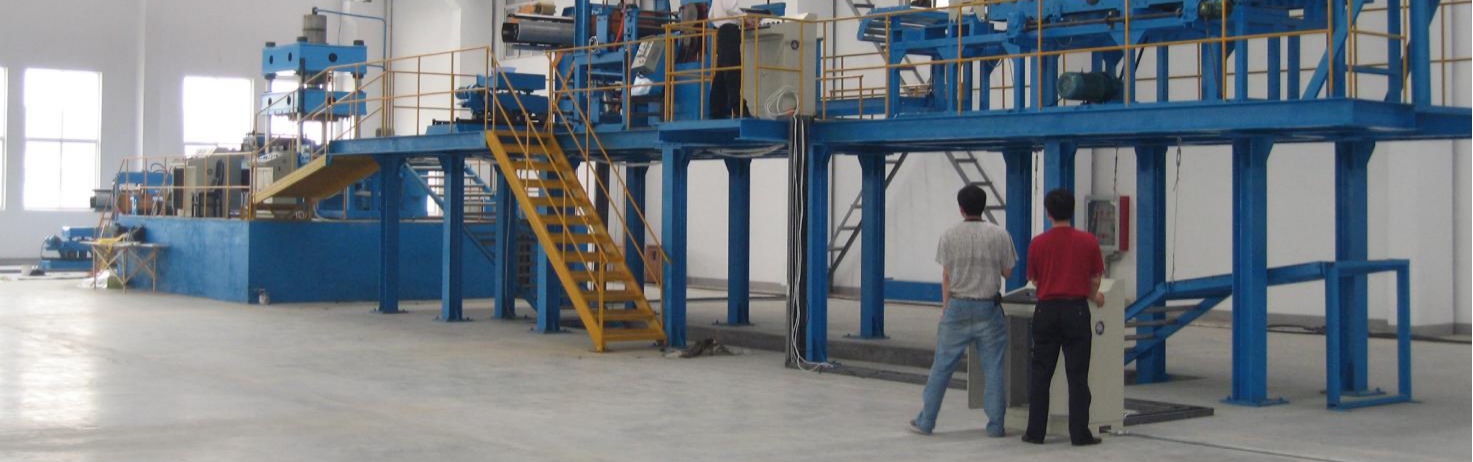

Whole working production line pictures:

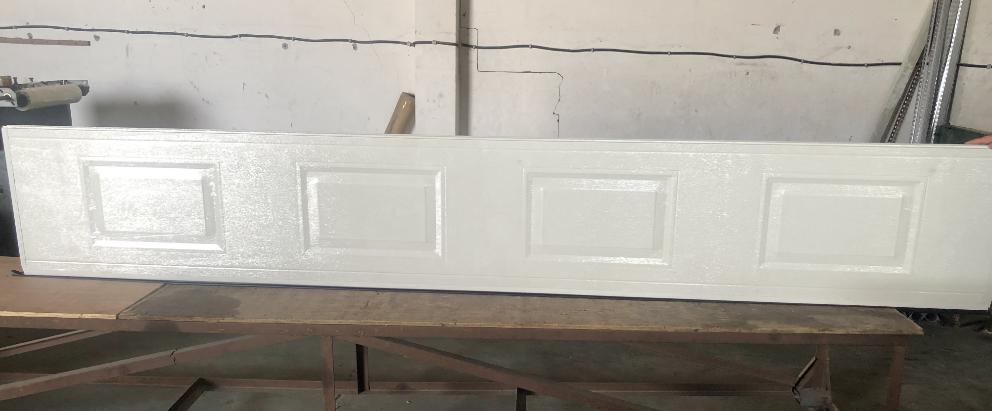

PU Garage Door Panel Usage:

Metal Door Machine

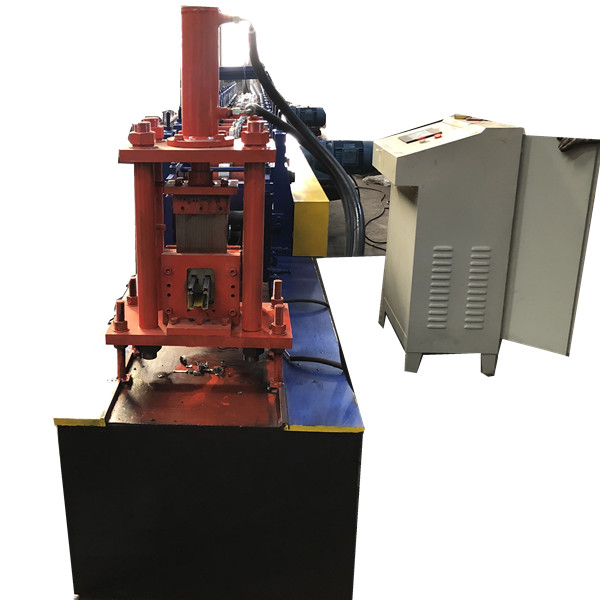

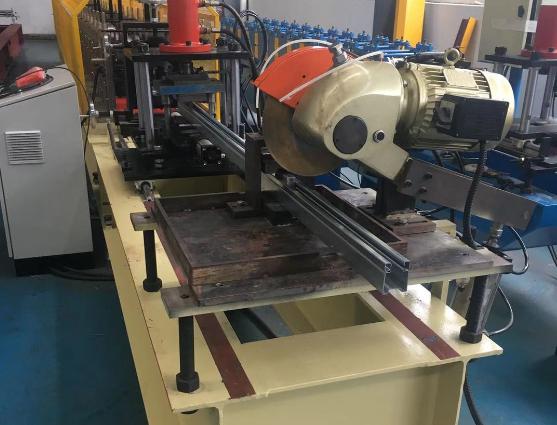

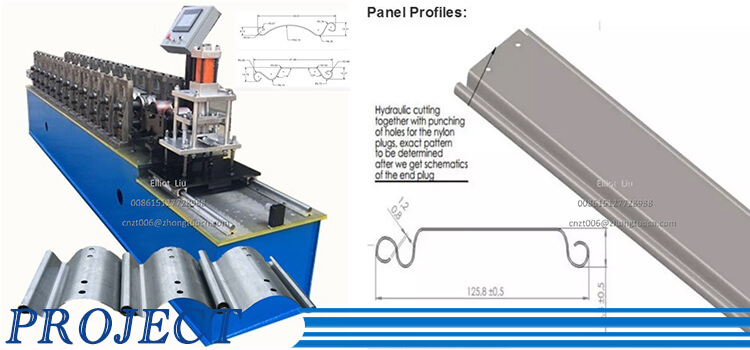

Zhongtuo rolling shutter door track door rail roll forming machine

Zhongtuo rolling shutter door track door rail roll forming machine

Zhongtuo rolling shutter door track door rail roll forming machine is designed to produce the shutter door rails in batch fully automatically. For the door track and door rails, in the market, there are many types, here I will introduce one special one with the anti-noise function.

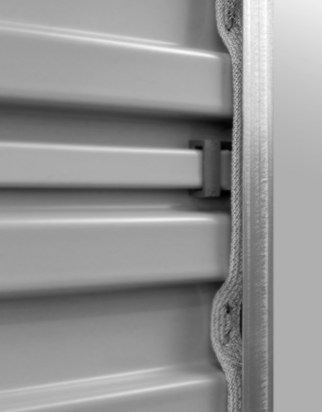

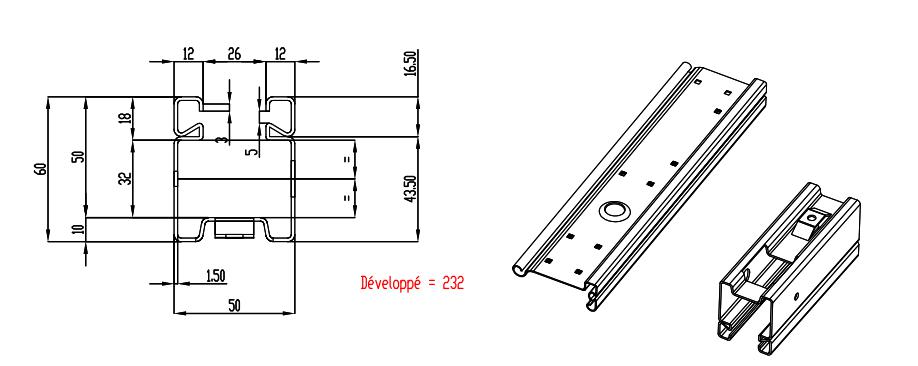

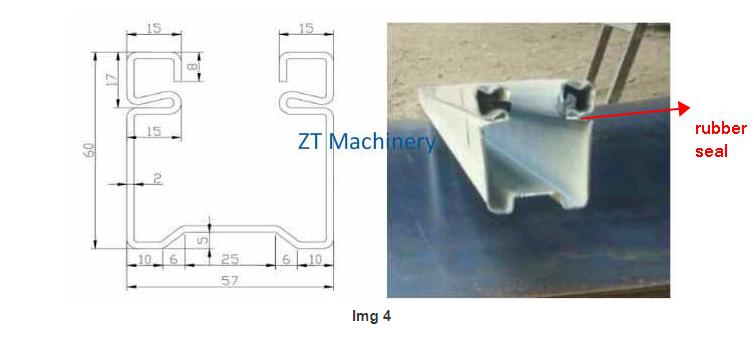

Rolling shutter door track or guide rails are usually made out of galvanized steel or cold rolled steel strips with thickness 1.2-2mm and whenever there is a roller shutter door or a sliding door installed, there will be the door track or guide rails.

Different with other U rails, it can remove the noise when working.

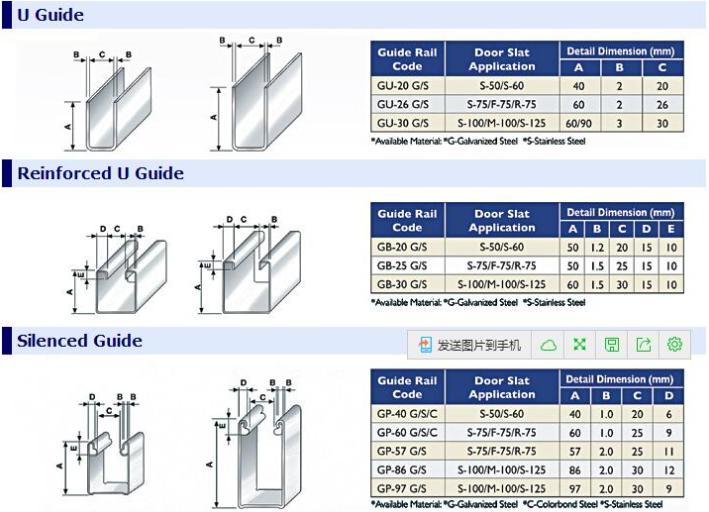

If you need, those types, Zhongtuo rolling machinery also can make such type for you.Zhongtuo rolling shutter door track door rail roll forming machine design:

The rubber seal could be made online no need the workers to fill offline. Here are some details about how the seals are filled:

Here are some parameters of Zhongtuo rolling shutter door track door rail roll forming machine for your reference:

Uncoiler: Manual Uncoiler

Loading Weight: 3T

Inner Diameter: 480-520mm

Outer Diameter: Max 1250mm

Leveler: with a Feeding Guide Unit

7-Roller Leveler: 3 rollers up and 4 rollers down with no power

Leveling Thickness: 2mm maximum

Diameter of Leveling Roller: 76mm

Main Structure of the Machine: 36# “H” Beam Steel

Rolling Stations: 24 stations

Forming Speed: Approx. 8-12m/min

Diameter of Shaft: 65mm

aterial of Shaft: 45# steel with heat treatment

Material of Roller: Gcr15 Bearing Steel

Transmission: Chains-bracket

Main Motor Power: 11KW (subjected to final design)

Cutting: Hydraulic cutting

Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touch screen

Electrical Motor Power: 3KW (subjected to final design)

Tolerance of Cutting Length: +/-2mm

PLC Control Box: 700mmx1000mmx300mm

Computer Control System: Panasonic PLC

Encoder: Omron Brand

Voltage: customize.

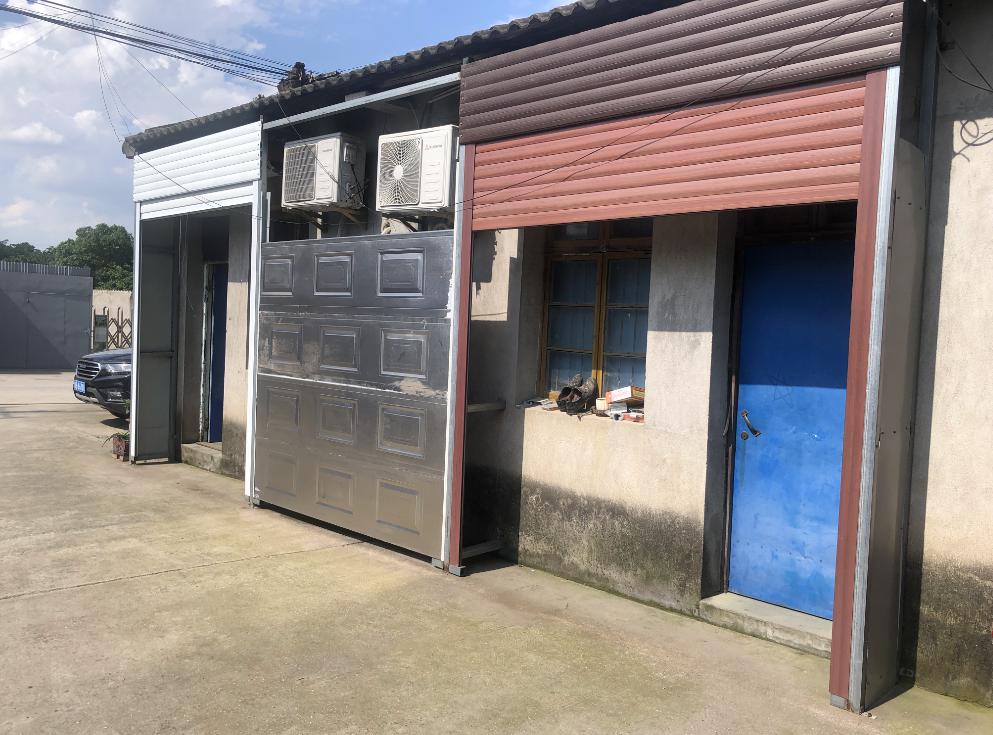

Usage of rolling shutter door track door rail:

Metal Door Machine

Glazed Iron Sheet Roll Forming Line Metal Roof Tile Making Machine

Glazed Iron Sheet Roll Forming Line Metal Roof Tile Making Machine

A metal roof tile making machine consists of an uncoiler and its base,infeed guides,fixed position driven forming stations,pressing die,shearing device,hydraulic station,PLC control console and so on.Our company boasts dozens of profile models for this series roll forming machine. We can design different kinds of profile and fittings for machine as per customers’ requirement.

Note: All the parameters can be designed as your requirement.

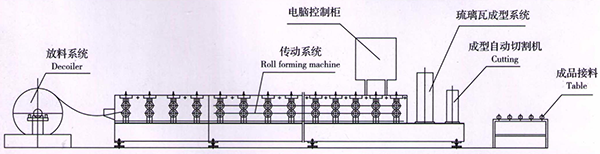

The flow chart of Glazed Iron Sheet Roll Forming Line:
Decoiling→Feeding & Guiding→Roll Forming→ Cutting→Finished Products To Support Table

Packaging Detail of  Glazed Roof Tile Roll Forming Machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.


ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

At ZTRFM, various payment terms are acceptable,you can choose what is convenient for you. Also we offer excellent after-sales services. Typically , we offer 1 year warranty and whole life technical support. Our engineers can work overseas and clients can also come to be trained to how to operate machines.

For more information, please contact me at Whatsapp:008618730769688 or send an email to cnzt005@zhongtuocn.com

FAQ
1. IS AFTER SALES SERVICE AVAILABLE?
Yes, we offer 7x 24hours online support and our engineers can work oversea to help.

2. HOW CAN I GET TO YOUR FACTORY?
a. First fly to Beijing airport and then go from Beijing Nan to Cangzhou Xi (1 hour) by  high speed train . Then we can pick you up at the railway station.
b. First fly to Shanghai Airport and then go from Shanghai Hongqiao to Cangzhou Xi(4.5 hours)  by high speed train. Then we can pick you up at the railway station.

3. WHAT IF SOME PARTS BREAK?
We offer warranty of 12 months ,during which free spare parts are available if some parts of the machine break to be irreparable. Besides, we also offer whole life technical support which means we will still offer technical advice 1 year after your purchasing. We can discuss to help you out.

4. CAN YOU TAKE CHARGE OF TRANSPORT?
Yes, we have strong expertise in this area for years and you can trust us.

Metal Door Machine

Customized Glazed Metal Roof Tile Forming Machine

Customized Glazed Metal Roof Tile Forming Machine

Customized glazed metal roof tile forming machine has can be used to make roofing sheet. It stands out the crowd for its 10 years of service time and high working speed. In addition, this metal roofing sheet rolls forming machines is also called the metal step tile making machine or metal roofing sheet machine. Here is a drawing profiles for your reference:

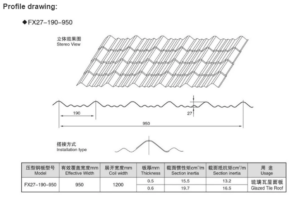

Finished product of tile making machine :

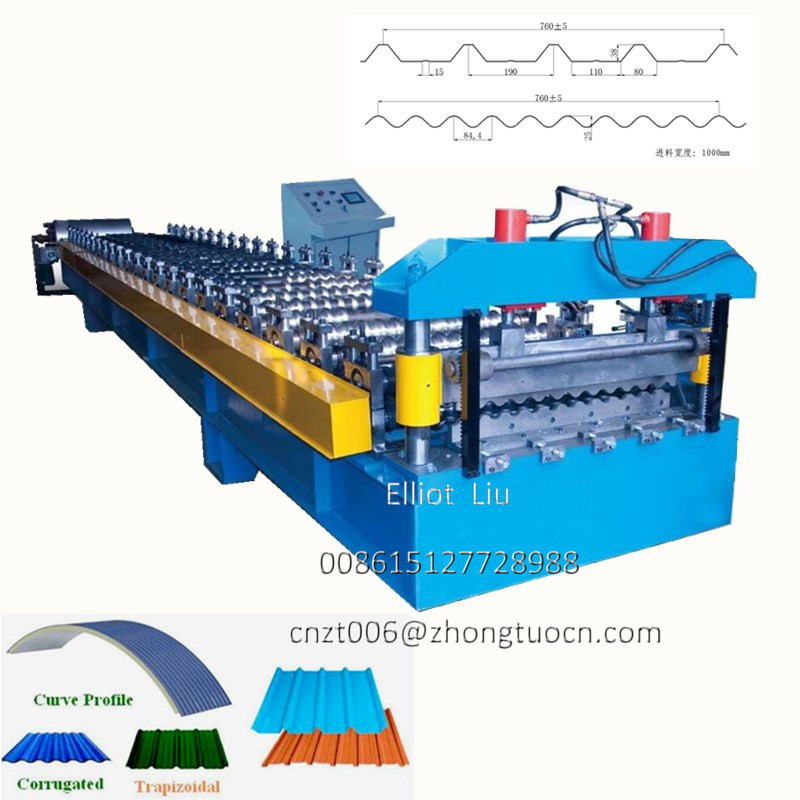

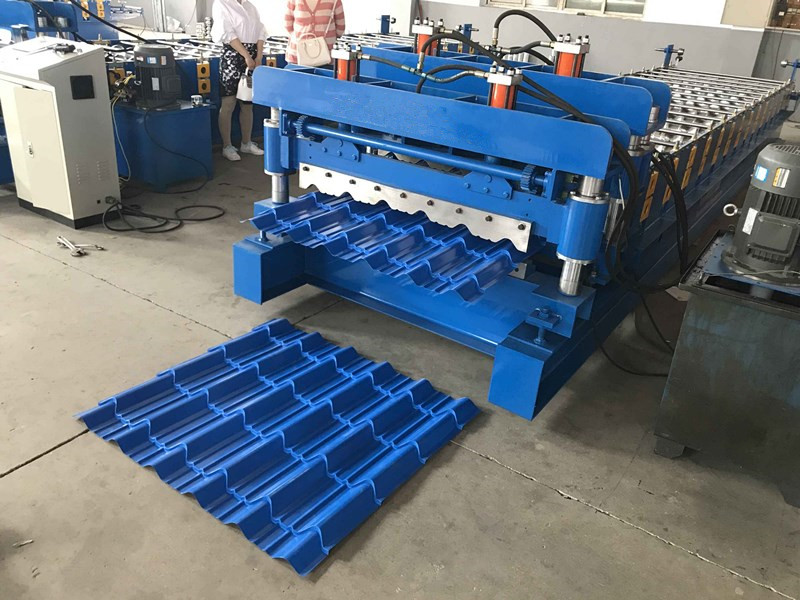

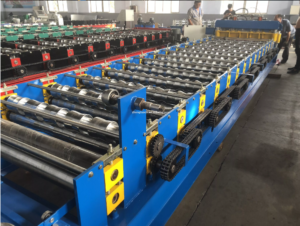

What does a glazed tile roll forming machine look like?
ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

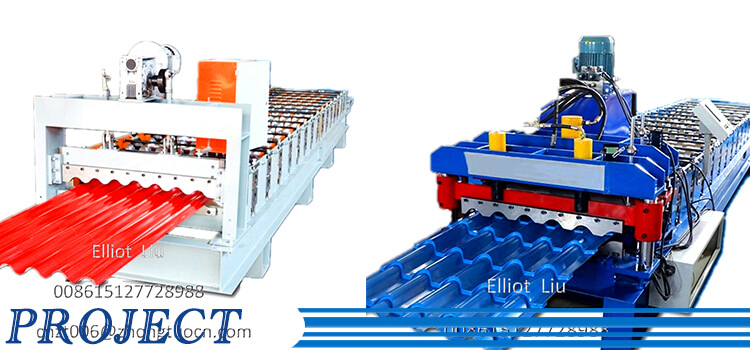

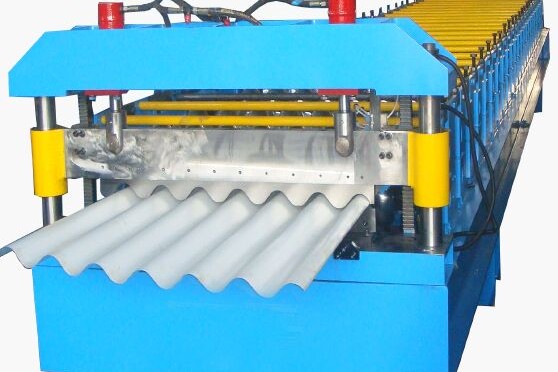

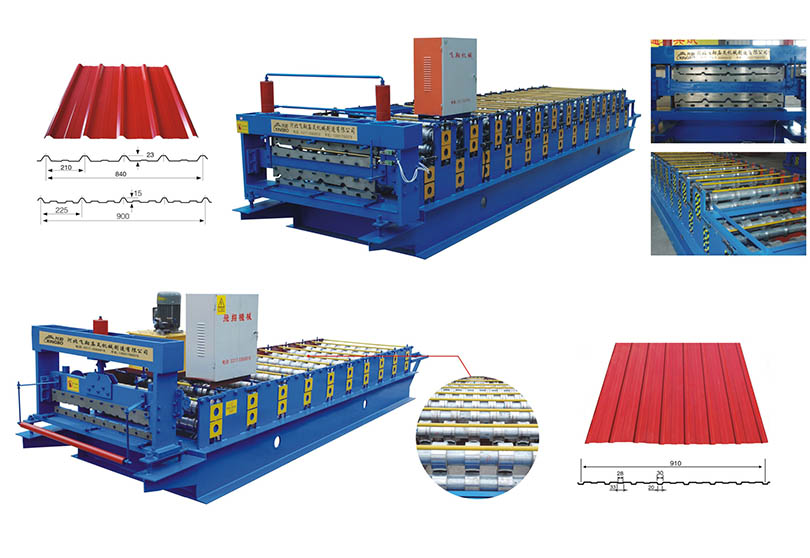

Corrugated Plate Roll Forming Machine
At ZTRFM, various payment terms are acceptable,you can choose what is convenient for you. Also we offer excellent after-sales services. Typically , we offer 1 year warranty and whole life technical support. Our engineers can work overseas and clients can also come to be trained to how to operate machines.

Metal Door Machine

Building Material Aluminum Roof Glazed Tile Roll Forming Machine

Building Material Aluminum Roof Glazed Tile Roll Forming Machine

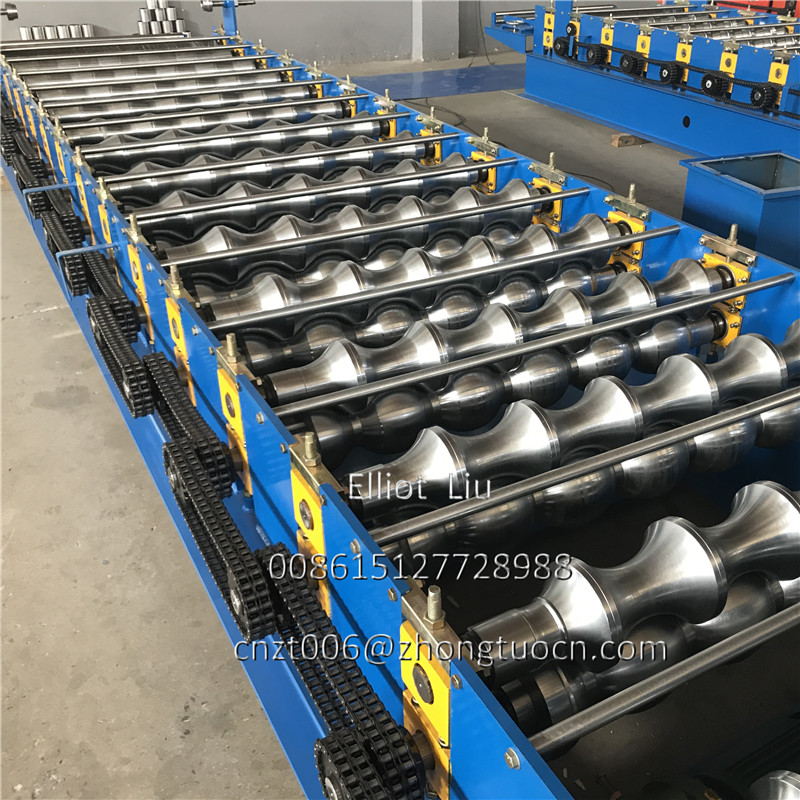

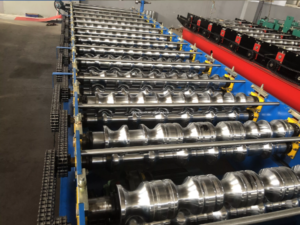

Main machine
The main machine works to roll form the steel sheet to the profile customers want and then cut the steel sheet into pieces.
The material of our roller can be GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to protect from rust.

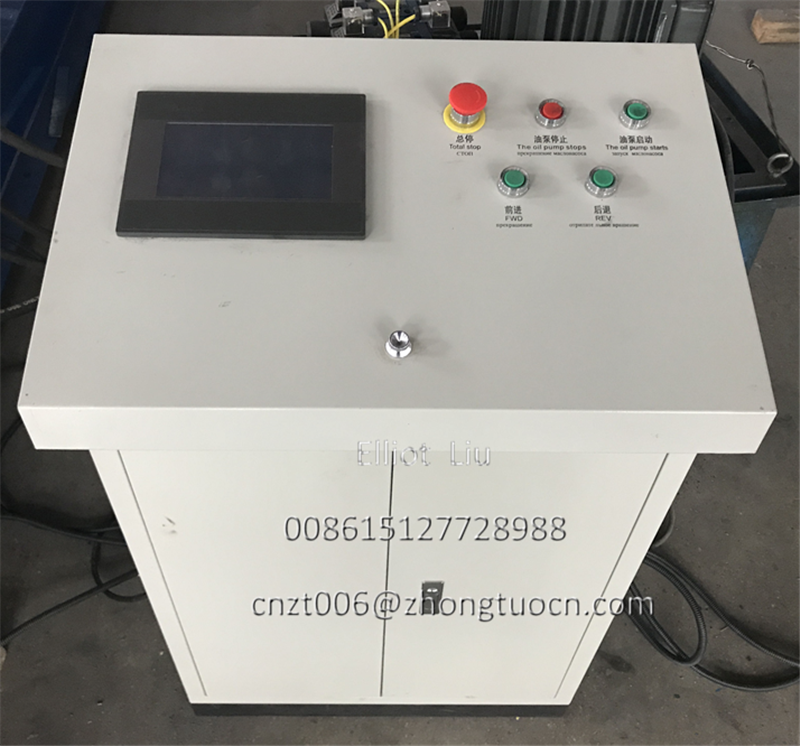

PLC computer controlling system
You can set the running speed / length / batch / pieces of steel sheets on the PLC computer touch screen, and then the machine can run automatically or you may choose manual mode. The whole operation process is easy to understand.

Hydraulic system
Used to punch holes or logos and cut steel sheet. Of course, hydraulic oil is need to be added into the oil tank.

ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

At ZTRFM, various payment terms are acceptable,you can choose what is convenient for you. Also we offer excellent after-sales services. Typically , we offer 1 year warranty and whole life technical support. Our engineers can work overseas and clients can also come to be trained to how to operate machines.

For more information, please contact me at Whatsapp:008618730769688 or send an email to cnzt005@zhongtuocn.com

Metal Door Machine

Metal color glazed tile making machine

Metal color glazed tile making machine

Metal color glazed tile making machine Roll Forming Machine of ZTRFM is designed to make roofing sheet with its distinctive advantages. It is durable with its service life stretching to 10 years. Besides that, its working speed highly stands at 8-22m/min. Metal glazed tile making machine is also called metal step tile making machine, or metal roofing sheet machine. Here are some drawing profile for your reference:

Working Process of a metal glazed tile making machine :

Uncoiling→ Feeding material into machine→ Roll forming→ Measuring length→ Step formed→ Auto cutting→ Products receiving

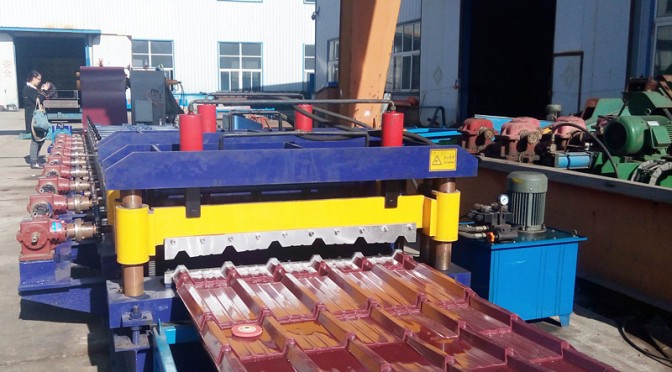

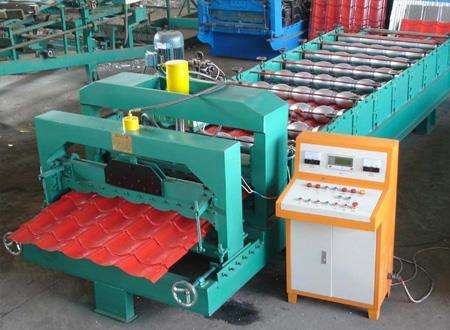

What does a finished glazed tile making machine look like?

Main parameters of glazed tile making machine:

1 Length of the main part About9500*1650*1500mm
2 Weight of main part About 6.8 Ton
3 Voltage 380V/50HZ3Phase (as customer’s request)
4 Roller fixer Middle plate welded
5 Frame Guide pillar and the thickness is 30mm
6 Frame thickness 25mm
7 Drive mode Gear
8 Material of rollers 45# steel, surface hard chromium plating.
9 Material of shafts 45# steel
10 Diameter of shafts Φ90mm Solid shafts
11 Number of rollers 16 rollers
14 Main power 11kw(Simon motor )
15 Text screen displayer Japan made
17 Forming speed speed 8-22m/min
18 PLC Control system Japan Panasonic PLC
19 Hydraulic power 5.5KW
20 Gear box China famous brand
21 Chain 1.25
22 Delivery time 30 working days after receiving the deposit

ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

At ZTRFM, various payment terms are acceptable,you can choose what is convenient for you. Also we offer excellent after-sales services. Typically , we offer 1 year warranty and whole life technical support. Our engineers can work overseas and clients can also come to be trained to how to operate machines.

For more information, please contact me at Whatsapp:008618730769688 or send an email to cnzt005@zhongtuocn.com

Metal Door Machine

Color metal glazed tile roofing sheet making machine with 3D effect

Color metal glazed tile roofing sheet making machine with 3D effect

The color steel sheet glazed tile cold rolling forming machine is equipped with Siemens PLC control and boasts short delivery time. It can help you control perfect 3D effect of the roofing. Compared with normal roofing sheet machines, the glazed roofing tile making machine has a step mechanism. Take the following drawing profile for example:

The glazed tile making machine allows you to produce as many types and sizes sheet as you like. For example, you can feed both 1000mm sheet and 1250 mm sheet . One machine for sheet of any length and width. Besides, it can create 3D roofing effect.

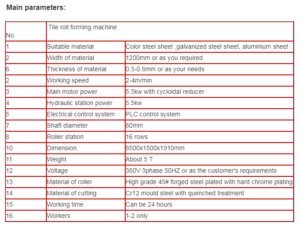

Some basic tech parameters of the glazed tile making machine:

             The machine is composed by the following elements
NO. Item name Quantity
1 Manual decoiler 1 set
2 Leveling beach with manual shearing system 1 set
3 Main roll forming machine 1 set
4 Step-formed mechanism 1 set
5 Shearing Mechanism 1 set
6 Hydraulic Station 1 set
7 PLC control system 1 set
8 Runout table 1 set
9 Spare parts:
1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. Rubber mat 1 pcs;
3.Bolt spanner 1 pcs
4. One set of cutting balde		 1 set
Size about 8500-1400-1500
Weight 7.5 tons
Voltage 380V/50HZ 3Phase or customize
Roller fixer : middle plate
Frame 350 H steel
Transmission Double cChain of 1.25mm
Material of rollers 45# steel, surface hard chromium plating
Material of shafts 45# steel
Diameter of shafts φ80mm
Number of rollers 13 rollers
Main power 5.5kw

How Zhongtuo Metal color glazed tile making machine stands out the crowd?

1. Each hydraulic part accommodates two hydraulic jack to make shearing more powerful.
2. Pillar post is used as the shearing pole, allowing easily oil adding.
3. All the rollers will be hard chromed to avoid damaging coil surface.
4. As for the leveling part, a filming system is added to the tile making machine.

ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

At ZTRFM, various payment terms are acceptable,you can choose what is convenient for you. Also we offer excellent after-sales services. Typically , we offer 1 year warranty and whole life technical support. Our engineers can work overseas and clients can also come to be trained to how to operate machines.

For more information, please contact me at Whatsapp:008618730769688 or send an email to cnzt005@zhongtuocn.com

Corrugated Plate Roll Forming Machine
Metal Door Machine

Corrugated Plate Roll Forming Machine18-76-760/988/1064

Corrugated Plate Roll Forming Machine is mainly including entry beach, main roll forming machine system, shearing mechanism, hydraulic station, electric control system.
18-76-760/988/1064style corrugated sheet roll forming machine is mainly including entry beach, main roll forming machine system, shearing mechanism, hydraulic station, electric control system. The producing is applying for roof of variety of workshop of factory, housing, warehouse, and market. It is nice shape and outstanding durability.

Craft process: uncoil feeding molding cutting product
Corrugated Plate Roll Forming Machine18-76-760/988/1064

Corrugated Plate Roll Forming

Main component
Uncoiling system
Usage: to support the membrane to facilitate stretching, automatic open-book binder.
Diameter:450-550mm
Uncoiling width:1250mm
oading capacity:5000kgl

Corrugated Plate Roll Forming Machine

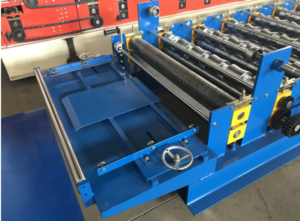

Entry beach:
usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

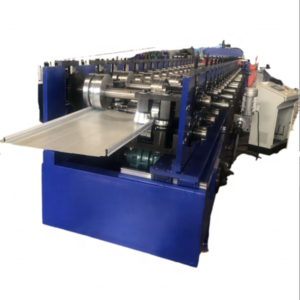

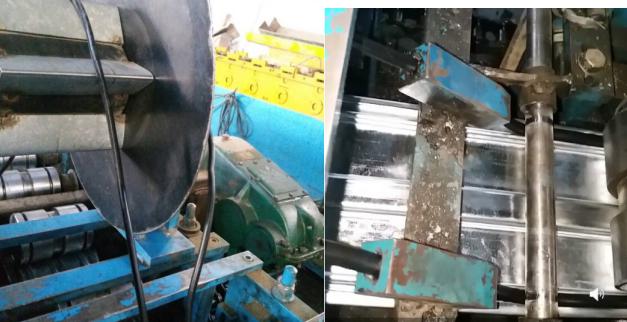

Main roll forming machine:Feature : Ensure stability , precision and lifetime
Length of the main part: about 7.5*1.45*1.5m
Weight of main part：5T
Voltage: customer can choose
Frame: 4560# H steel
Transmission: Chain
Material of shape: 45# steel adjustable, diameter 80mm, sophisticated processing.
Wheel Material: GCR15, after quenching, and chrome-plated wheels through a gap

Material of rollers:
Strength bolts
Number of rollers:15 rollers
Motor power: 5.5KW

Forming speed:
Shearing Mechanism
Advantage: ensure stable, precision and high cutting speed.
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products
Material of blades: Gcr12 quenched
Cutting system: advanced hydraulic system, automatic cutting, no waste coil, highly safety.
Cutting error:±2mm
We measuring product use PLC and code, this style is higher than photoelectric measurement.component: it including

Hydraulic station:
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump,four hydraulic pipes.and two sets of electromagnetism valves.
Hydraulic oil:40#hydraulic power:3kw

Electric Control System
1、5.7 inch of Panasonic touch screen from Japan to ensure high speed with stability, precision and lifetime.
2、Panasonic of PLC and converter.
3、Automatic length
4、Automatic count
Automatic stop the cutting, control length
5、match with moveable switch, fuse link, radiator, transformer and RCD.

Counter:
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.

Products receiving tables:
6*40mm jointing
pulleysize:
3*0.9*0.6m

Accessories:
1、Easy damaged parts:conk 2pcs, fuse-link 4 pcs.
2、Rubber mat 1 pcs
3、Bolt spanner 1 pcs

Payment termPrice: (including duty)
The way of the payment: Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit.

Warranty:
1、One year, and we will provide the technical support for the whole life
2、Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3、Need one technician
4、Training time: one week (contains the time of installation and adjustment)

Shutter doors roll forming machine
Metal Door Machine

Fully automatic roller shutter door roll forming machine

Zhongtuo cold roll forming machinery is engaged in manufacturing, supplying and exporting an extensive range of Rolling Shutter Making Machine since 1996. Our machines are designed and developed with time and date for making fashion and durable rolling shutter with the proper bandings and smooth curves to the metal sheets. Our machines can work for long hours consistently with any problem at low energy consuming. We offer these machines in different specifications and at economic rates in market.

Read More
