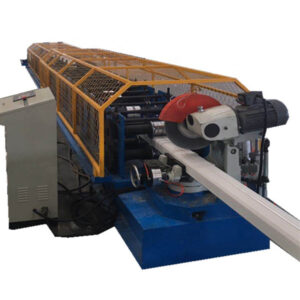

Metal drain pipe/ 6 inch gutter roll forming machine

Metal drain pipe/ 6 inch gutter roll forming machine could be used to make drain pipe or gutter fully automatic in batch. The gutters protect your most valuable asset, by moving more water away from your house, faster than any other gutter in its class. And it allows the maximum water flow of a large gutter, with the look of a smaller, more attractive system.
Basesd on the market needed, we design the machine for making drain pipe or 6 inches gutter by fully automatic roll forming principle. The machine is composed by manual decoiler, leveling beach, roll forming machine, shearing system and runout out table, PLC control sysyem, and hydraulic system.
Working speed: 3—8m/min . Take the following drawing profile for your reference:

The following are machine parameters for your reference:
3-Main roll forming machine
Frame: Longmen wallboard type
The roller number: 18 rollers
Roller material: Cr12
Shaft diameter: 60mm, 45# steel
Roller heat treatment: Quenching, HRC58-62
Material thickness: 1.5 mm to 2.0 mm
The standard cutting size: 198 mm (According to customer request design of blade shape)
Standard forming size: 185 mm
Length tolerance : ±0.1 mm
Diagonal tolerance : ±0.1 mm
The motor power: 3.5 kw
Voltage: 380V/50HZ/3Phase (As customer’s request)

4-Hydraulic cutting
Cutting type:Hydraulic cutting Blade material: Cr12MoV
Blade quantity: 1 set Cutting frame: 1 set
Mould material: Cr12MoV Motor power: 3 kw

Our machine is capable of producing drain pipe and gutters beautifully and fully automatically. It has been tested by the Housekeeping Institute, and carries the Housekeeping and warranty. Enjoy the confidence that comes from knowing that not only do we believe in our product, so does Housekeeping and more customers.

Slotted solar panel support strut roll forming machine

We are professional cold roll forming machines manufacturer, and we are professional manufacturer of the solar panel support strut roll forming machine, we already design and produce many sets of this solar panel support strut roll forming machines for our customers before, the customer come from Iran, Saudi Arabia, Egypt, India and so on.

Normally the size of the strut is the same 41*21 mm and 41* 41 mm, this is two common sizes the customers demand, this two size one machine is enough to produce, we have to change the forming dies when you change the size, and normally this strut need punch holes on it, this is used for the install of the structure.

Design plan, we use gear box as transmission method and use independent pillar as frame. All making sure, machine working speed is high and steady, meanwhile do no harming to the raw material.

What our machine benefit you and unique design ?

1. Water cooling down system

Each roller part, we install water pipe, it could be used to cool down machine to make the

machine use longer time. Meanwhile, in the water, we will add anti-rust chemicals to protect

the finished product go rusting.

2. Gearbox transmission.

For one thing, it can make sure the machine working steady and smoothly. For another thing,

it can make sure coil will not be scare or burr by rolling.

3. Hydraulic shearing system.

Powerful and fast shearing can make sure no burr after cutting.

For more detail information, please refer to the video I sent to you.

Gutter roll forming machine

We can produce the gutter roll forming machine for you, gutter roll forming machine is one of our main machines, we are professional manufacturer of different types of gutter roll forming machines. Gutter is widely used nowadays in the house building, especially for the villa building. The gutter have not only the function of decoration but also have the function of collect the rainwater. There are many different types of gutters, here I attached several drawings of the gutter for you reference, please have a check: The gutter produced by our gutter roll forming machine are very beautiful and straight, this is because our machine are produced more precision, this will make sure the ready-made gutter are beautiful and good quality.

Our gutter machine main paremeters:

Material: Color coated steel Thickness: 0.4-0.8 mm Drive mode: Chain Speed: 8 meters /minute Voltage: 380 v 50 hz 3 phase Machine size: 8.5 m*1.2 m*1.5 m Weight of main part: 4.5 tons Frame type: Middle plate Frame : 350 H steel welded Material of shafts: 45# steel Diameter of shafts: φ 70 mm Number of rollers : 15 rollers Main power: 5.5 kw Material of blades: Cr 12 quenched Gutter machine Application: This product is widely used in many kinds of industrial factory, civilian buildings, and roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

Gutter machine Competitive advantage:

1. save space 2. easy install 3. perfect service 4. excellent quality 5. save freigh

Scaffolding plank roll forming machine

Scaffolding plank roll forming machine Main parameters:

Line size: About 16m *2m *1m Weight: About 15 tons in total Material thickness: 1.0-2.0mm Forming speed: 3m-6m per minute Scaffolding plank roll forming machine Working Flow: Decoiler–Straightener–Press punching–Hydraulic cutter–Roll forming machine–Output table

Scaffolding plank roll forming machine Leveling system:

Motor power: 3 kw Leveling roller: 9 rollers Diameter of roller: 86 mm Materials of leveling rollers: Gr15

Scaffolding plank roll forming machine Punching system:

Model: JH21-200 Tonnage: 160 tons Motor: 5.5 kw Features:adopt welded steel plate as machine body, good stiffness, beautiful appearance. Adopt combined type air-operated friction clutch. Scaffolding plank roll forming machine Main roll forming system: Forming steps: 20 steps Material of molds:Gr12 Thickness: 1.0-2.0 mm Forming speed:3-6 m per min Main shafts of molds:60 mm 40Cr hardening Body of machine:350H welded steel plate Motor power:15kw Scaffolding plank roll forming machine Company information: Cangzhou Zhongtuo cold roll forming machinery as a manufacturer since 1996,we are specialized in manufacturing color steel forming machine, light keel machine, C&Z purline machine, Glazed tile forming machine, welded tube mill, stone coated roof production line, steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material. We real provide you one station, non-stop service. Now our machine have been exported to 30 countries, such as Canada, South Korea, Russia, Holland, Sri Lanka, Malaysia, India, Brazil, etc. Our company insists on the service aim: Quality First, Credit First. We believe that we can make the future cooperation and achieve win-win.

5 tons manual decoiler and 5 tons automatic decoiler comparation

Normally the decoilers are used for the cold roll forming machines, some used for the roof tile roll forming machines and some used for the purlin roll forming machines and keel roll forming machines. The function of the decoiler is to support the steel coils and to feed the material to the forming machines. There are manual decoilers and automatic decoilers, the automatic decoilers have more functions than the manual decoilers, the automatic decoiler adopt electric motor transmission and hydraulic expansion, and some automatic decoiler also have the loading car to carry the steel coils and put the coils on the decoiler support hand, this will let the loading work much easier, and of course at the same time the price of the automatic decoiler is much higher than the manual decoiler. Normally the manual decoiler is enough for the production, because it is cheaper, this will save a lot of money for the buyer. But in some developed countries, their labor salary is very high, so compared with the automatic decoiler cost, the customer will also choose to buy the automatic decoiler. Because the automatic decoiler is much easier to operate, you just need to put the steel coils on the carry car and then you can control the car to put the coils on the decoiler hand. This is safe and high efficiency. For the manual decoiler, you have to take out the decoiler shaft first and then insert into the steel coil and then use the gantry crane to put it on the decoiler, and use wrench to expand the shaft, this is not efficiency and not safe. And at the same time, because the automatic decoiler adopt the motor to transmission but not pulled by the roll forming machine, so the automatic decoiler is more stable than the manual decoielr. Normally the decoiler for the roof tile roll forming machine is 5 tons loading capacity, 5 tons manual decoiler cost 800 USD, and 5 tons automatic decoiler with a car cost 7000 USD.

Horizontal round wave roll forming machine

Horizontal round wave roll forming machine is developed based on the needs that thin sheet cannot be made to roof sheet by traditional roll forming machine. It can process material thickness from 0.15 to 0.3 mm and the roofing sheet length could be customized according to customer needs. But limited by roll forming method, this type machine needs to feed coil and receiving coil manually. Max width: 4 m Material: 550 Mpa Max feeding width:1250 mm Coil material thickness: 0.15-0.3 mm. Forming device Roller station: 2 sets Roller diameter: 300 mm Roller material:45# steel Speed:15 pieces /minute Weight: 8.5 T Voltage: 380 v 50 hz 3 ph Motor: 11 kw 1.One year warranty, whole life technical support. 2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine. 3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary. If you need Roofing Curve Machine you can contact us .
