Category Roof/Wall Sheet Forming Machine

Capabilities of the Metal Trim Machine Metal Building Trim Roll Former Drip Edge Trim Roll Forming Machine

**1. Roll Forming:

• The core function of the metal trim machine is roll forming, where metal coils are gradually shaped into the desired trim profile through a series of rollers. This process ensures precision and uniformity in the produced trims.

**2. Cutting:

• Equipped with hydraulic or mechanical cutting systems, the machine can cut trims to the exact length required. This capability ensures clean, accurate cuts that maintain the integrity of the trims.

**3. Punching:

• Some metal trim machines come with integrated punching systems, allowing for the creation of holes or slots as needed for specific trim designs. This adds functionality to the trims and expands their application range.

**4. Customization:

• The machine can be adjusted to produce various trim profiles and dimensions, providing the flexibility to meet unique project requirements. This customization is crucial for projects with specific aesthetic or functional needs.

**5. Material Handling Table:

• Capable of processing different materials such as aluminum, galvanized steel, and stainless steel, the machine offers versatility in production. This capability allows manufacturers to cater to diverse market demands.

Types of Metal Trims Produced by the Machine

**1. Edge Trims:

• Used to finish the edges of metal panels, providing a clean and professional look. Edge trims also protect the edges from damage and weathering.

**2. Corner Trims:

• Designed to cover and protect the corners of structures, corner trims enhance both the aesthetic appeal and durability of the construction.

**3. Drip Edges:

• Installed at the edge of roofs, drip edges direct water away from the fascia and the underlying structure, preventing water damage.

**4. J-Channels:

• These trims are used around windows and doors to hold siding in place and provide a finished look. J-channels also help channel water away from openings.

**5. Z-Flashing:

• Used in conjunction with siding, Z-flashing directs water away from seams and joints, preventing water infiltration and damage.

**6. Base and Cap Trims:

• These trims are used at the base and top of panels to provide a neat finish and protect the edges from moisture and damage.

PBR roof panel roll forming machine is a vital metal roofing machine used in the manufacturing PBR (Purlin Bearing Rib) metal roof panels. This machine plays a crucial role in efficiently and accurately producing high-quality PBR sheet metal roofing that are widely used in commercial, industrial, and agricultural buildings.

Key Features of PBR Roof Panel Roll Forming Machine:

1. High Precision: The machine utilizes a series of precision rollers to shape and form the metal coils into PBR steel roof panels. These rollers are designed to create the specific profile and dimensions required for PBR panelsR steel roofing, ensuring consistent and accurate results.
2. High Production Speed: These metal roof forming machines are designed for efficient and high-speed production, enabling manufacturers to meet demanding production schedules and deadlines.
3. User-Friendly Siemens Controls: PBR metal roof panel roll forming machines are equipped with user-friendly Siemens controls and interfaces, making it easy for operators to set up and operate the machine. The controls allow for adjustments to speed, length, and other parameters, ensuring optimal performance and consistent panel quality.
4. Robust Stable Design: The metal roofing machineis built with sturdy and durable materials to withstand the demands of continuous production. This design ensures the machine’s longevity and reliability, minimizing downtime and maintenance requirements.

A PBR roof panel roll forming machine is designed to efficiently shape metal coils into PBR (Purlin Bearing Rib) roof panels. Here is a step-by-step explanation of how the machine typically works rolling metal forming process:

Material Loading: The process begins with loading the metal coil onto the machine. The coil is unwound and fed into the roll forming machine, where it will undergo a series of shaping processes. There are galvanized steel coil upbender, hydraulic unwinder, electric decoiler for you choose.

Guiding and Straightening: The machine includes guiding and straightening devices that ensure the metal coil is properly aligned and straightened before entering the roll forming section. This helps maintain the accuracy and consistency of the formed panels.

Roll Forming Part: The heart of the machine is the roll forming section, which consists of a series of r panel rollers that gradually shape the metal coil into the desired PBR roof panel profile. Each roll form die performs a specific bending or profiling action, gradually transforming the flat metal coil into the final panel shape.

Shearing: Once the roll formed shapes profile is fully formed, a cutting mechanism is employed to cut the roll formed steel products to the required length. This can be done using a flying cutoff shearing or a hydraulic shear, depending on the design of the machine.

Stacking or Discharging: After the cutting process, the finished PBR roof panels are either stacked automatically or discharged onto a conveyor belt for further processing or packaging. Stacking devices can be incorporated into the machine to neatly stack the panels for easy handling and transportation of rolled sheet metal roofing.

Control System: The PBR roof panel roll forming machine is equipped with a control system that allows roll former operator to monitor and adjust various parameters. This includes controlling the speed of the pbr machine, adjusting the length of the metal roofing and siding panels, and ensuring consistent panel quality. There are Delta control system and Siemens control system for you choose.

Roll forming machine specification

• NEW 16 Station PBR – R-Panel Roll Former
• 36″ panel, ribs on 12″ centers, 1 1/4″ high coil width 42 3/4″-43″
• USA Tooling Design – Special Roll set in stand 16 – by adjusting the stand tighter it will reduce the width of the panel, looser it will make the panel wider so the exact panel width of 36″ may be achieved even with variations in coil strength.
• Tool steel roll dies, hardened, and chrome plated.
• Machine Speed 40 feet per minute/ 80 feet per min/ 120 feet per min
• UP-CUT-SHEAR – DOUBLE CYLINDER
• The up cut shear makes stacking of formed panels much easier. The micro burr on the end of the formed sheet is turned up by the up cut shear, so it will not scratch the sheets in the stack. The end of the newly formed sheet can slide on the top of the sheet stack, it does not need to be kept off of the stack to avoid scratching as with a down cut shear.
• Designed, Final assembly, and Testing before delivery.
• Includes 8,500 lb manual un-coiler and stand.
• Power is 220v 3 phase 60hz, single phase converters are available.

To ensure the quality of a PBR panel roll former, it is important to consider the following factors:

Choose a Reliable roll forming machine manufacturers: Select a reputable and experienced manufacturer known for producing high-quality roll forming machines. Research their track record, customer reviews, and certifications to ensure they meet industry standards.

Roll Forming Machine Design and Construction: Inspect the design and construction of the PBR panel roll former. Look for robust materials, precision engineering, and solid construction that can withstand the demands of continuous operation. A well-designed machine is more likely to produce consistent and accurate panels.

Quality Control Processes: Inquire about the roll forming machine manufacturers in china quality control processes. Ask about the measures they take to ensure the accuracy, reliability, and durability of their machines. This may include inspections, testing, and adherence to relevant industry standards.

Material and Component Selection: Evaluate the quality of the materials and roll formed parts used in the roll former. High-quality materials and components contribute to the overall performance and longevity of the machine. Pay attention to critical parts such as rollers, cutting mechanisms, and control systems.

Testing and Calibration: Before purchasing the roll former, inquire about the testing and calibration procedures the manufacturer follows. Ensure that the machine undergoes thorough testing to verify its functionality, galvalume roof panels accuracy, and consistency. Calibration should be performed to ensure precise pbr roofing dimensions and beautiful steel metal roofing.

Warranty and After-Sales Support: Check the warranty offered by the manufacturer. A reliable manufacturer will stand behind their product and provide support in case of any issues. Additionally, inquire about after-sales services, technical support, and availability of spare parts.

Customer References: Request references from other customers who have purchased the same roll former. Reach out to them to gather feedback on the machine’s performance, reliability, and overall satisfaction. Their experiences can provide valuable insights into the quality and performance of the roll former.

Regular Maintenance and Servicing: Once you have purchased the roll former, follow the manufacturer’s recommendations for regular maintenance and servicing. This will help prolong the lifespan of the machine and ensure optimal performance over time.

There is no fast way to produce trims than with a Roll Former Trim machine. A trim roll former can produce 80-100 feet of trim per minute, making over 38,000 feet of trim possible in just one 8-hour workday.

Drip edges, angle flashings, F5 T-style profiles, FHA , and Z bars are all integral elements in the construction industry, particularly when it comes to roofing systems and water management. Each component plays a distinct role in ensuring that buildings remain weatherproof and structurally sound.

Our trim edge forming machine are made to meet commercial, residential, or industrial needs. Trim profiles vary depending on building type, roof type, or marketplace. Trim drip edge roll former we offer include: J Channel, Ridge Cap, Fascia, Rake Trim, Drip Edge, Drip cap, Corner trim, metal roof ridge cap and many more.

We are manufacturers of drip edge roll forming machine. I will introduce the finished products produced by drip edge machine and drip edge machine for sale configurations.

T-style profiles are often utilized in roofing systems to provide additional support and stability. They are shaped like the letter ‘T’ and can be used as a ridge cap or as part of a valley flashing system. The T-shape design allows for increased surface area, which aids in securing the profile to the roof deck and improving its structural performance.

2-1/2″ F5	3″ F5
Nom Size* T-Style 10 ft length Painted Steel and Aluminum	Nom Size* T-Style 10 ft length Painted Steel and Aluminum

FHA drip edges refer to specific types of drip edges that meet certain standards set by organizations like the Federal Housing Administration (FHA). These standards ensure that the drip edges are of sufficient height and material quality to effectively channel water away from the roof and siding.

2″ FHA	2-1/2″ FHA	3″ FHA
Nom Size* 10 ft length Galvalume Steel Meets or exceeds USA Building Code	Nom Size* 10 ft length Galvalume Steel Meets or exceeds USA Building Code	Nom Size* 10 ft length Galvalume Steel Meets or exceeds USA Building Code

Z bars are long, flat metal strips that are bent at a 90-degree angle to form a ‘Z’ shape. They are commonly used as straps to hold shingles or other roofing materials in place, especially during installation or repair work. The Z bar provides a secure anchor point, ensuring that the roofing materials stay put and maintain their position over time.

In summary, drip edges, angle flashings, F5 T-style profiles, FHA, and Z bars are essential components in creating a resilient and watertight roofing system.

For roll forming machines, we can learn more through the video link above.

The drip edge roll former for sale process is:

1: Load the steel coil on the uncoiler

2: Input the steel coil into the forming machine

3: PLC sets parameters, length, quantity, and turns on automatic production

4: The collection rack collects products.

5: Packing

Technical parameter of Drip edge roll forming machine :

Hydraulic Decoiler:

Main drip edge roll former:

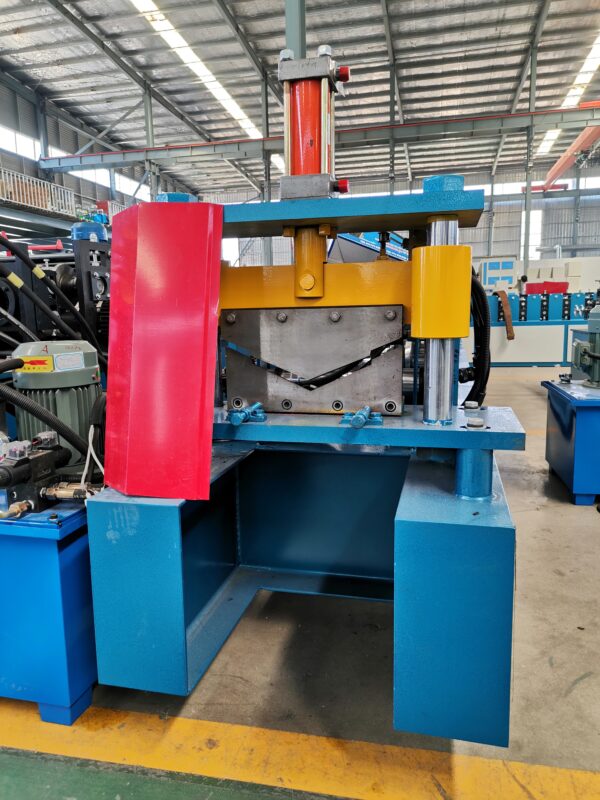

Shearing system:

Receiving table:

Hydraulic oil pump station:

PLC control system:

Our machine frame use vertical iron casting frame to ensure stable running, and use chains driving. Will have protective cover box on it.

The roller use Cr 12 material, this kind of material hardness is more higher than other kind of material, then can provide more longer service life. The rollers have heat treatment, chromed treatment, quenched treatment to ensure it’s quality.

For the cutting device, we adopt tracking cutting to imporve the cutting speed, the machne speed max can reach to 40 m/min.

About the product collect tablel and packing device, we adopt automatic type. The product collect table can transfer the product automatically to packing table.

If you want to know more about 2×3 Gutter Apron FHA american metal roof flashing machine aluminium drip edge trim roll former, please contact us.

Introduction to Tuff Rib Metal Roofing Machine

Tuff Rib metal roofing is a popular choice for both residential and commercial applications due to its durability, cost-effectiveness, and aesthetic appeal. Known for its distinct ribbed design, Tuff Rib panels offer excellent weather resistance and structural strength, making them ideal for a variety of roofing needs.

Features of Tuff Rib Metal Roofing

Durability:

• Made from high-quality steel or aluminum, Tuff Rib panels are designed to withstand harsh weather conditions, including heavy rain, snow, and high winds.
• The panels are coated with protective finishes to resist corrosion, rust, and UV radiation, ensuring a long lifespan.

Cost-Effectiveness:

• Tuff Rib metal roofing is relatively affordable compared to other roofing materials, providing excellent value for money.
• Its longevity reduces the need for frequent repairs or replacements, resulting in long-term cost savings.

Aesthetic Appeal:

• The ribbed design of Tuff Rib panels adds a sleek, modern look to any building, enhancing its overall appearance.
• Available in a variety of colors and finishes, Tuff Rib roofing can be customized to match different architectural styles and preferences.

Energy Efficiency:

• Metal roofing reflects solar heat, helping to keep buildings cooler in the summer and reducing energy costs for air conditioning.
• Tuff Rib panels can also be insulated to improve thermal efficiency and reduce heating costs in colder climates.

Ease of Installation:

• Lightweight and easy to handle, Tuff Rib panels can be quickly and efficiently installed, reducing labor costs and project timelines.
• The overlapping rib design ensures a tight, secure fit, preventing leaks and improving the overall performance of the roof.

Tuff Rib Metal Roofing Roll Forming Machine

The Tuff Rib Metal Roofing Roll Forming Machine is an advanced piece of equipment designed to produce high-quality Tuff Rib panels with precision and efficiency. This machine plays a crucial role in the manufacturing process, ensuring that each panel meets strict quality standards.

Features of the Tuff Rib Metal Roofing Roll Forming Machine

High Precision:

• Equipped with advanced roll forming technology, the machine ensures precise shaping and consistent quality of the Tuff Rib panels.
• Utilizes CNC or PLC control systems for accurate dimension control and easy adjustments.

Versatility:

• Capable of producing Tuff Rib panels in various sizes and thicknesses to meet different roofing requirements.
• Handles different materials, including galvanized steel, aluminum, and coated metals, providing flexibility in production.

Efficiency:

• High-speed production capabilities enable the manufacturing of large quantities of Tuff Rib panels in a short amount of time.
• Automated processes reduce labor costs and increase overall productivity.

User-Friendly Operation:

• Designed with an intuitive interface and controls, making it easy for operators to set up and run the machine.
• Features automated adjustments for different panel sizes and designs, minimizing setup time and enhancing efficiency.

Main Components of the Tuff Rib Metal Roofing Roll Forming Machine

Decoiler:

• Holds and unwinds the metal coils, feeding the material into the roll forming machine.
• Available in manual or motorized versions, depending on the production requirements.

Roll Forming System:

• Consists of a series of rollers that gradually shape the metal into the Tuff Rib profile.
• Adjustable rollers allow for changes in panel dimensions and material thickness.

Cutting System:

• Hydraulic or mechanical cutting system that cuts the panels to the desired length.
• Ensures clean and accurate cuts, maintaining the integrity of the panels.

Control System:

• Advanced PLC or CNC control system for precise operation and easy adjustment of parameters.
• User-friendly interface for setting dimensions, profile changes, and monitoring machine performance.

Output Conveyor:

• Transfers the finished Tuff Rib panels to a collection area, ready for packaging or further processing.

Workflow of the Tuff Rib Metal Roofing Roll Forming Machine

1. Material Loading:
   • Metal coils are loaded onto the decoiler, which feeds the material into the roll forming machine.
2. Roll Forming:
   • The material passes through the roll forming system, where it is gradually shaped into the Tuff Rib profile.
3. Cutting:
   • Once the panel reaches the desired length, the cutting system cuts it to size.
4. Collection:
   • The finished Tuff Rib panels are transferred to the output conveyor for collection and packaging.

Conclusion

Tuff Rib metal roofing offers a durable, cost-effective, and aesthetically pleasing solution for a wide range of roofing applications. The Tuff Rib Metal Roofing Roll Forming Machine is essential for manufacturing these high-quality panels, ensuring precision, efficiency, and consistency in production. With advanced features, user-friendly operation, and robust construction, this roll forming machine is a valuable investment for manufacturers looking to produce top-tier Tuff Rib metal roofing panels. By understanding the features and workflow of both the Tuff Rib roofing and the roll forming machine, manufacturers can optimize their production processes and meet the diverse needs of their customers.

¡Hola a todos! Hoy estamos emocionados de presentarles nuestra última creación: una máquina de láminas para techos metálicos personalizada para uno de nuestros valiosos clientes en México. Esta máquina está diseñada específicamente para producir perfiles R101 y Deck 25, que son estándares en México.

Los perfiles R101 , Deck 25 son altamente demandados en el mercado mexicano debido a su durabilidad, versatilidad y estética atractiva. Nuestra máquina de láminas para techos metálicos garantiza la producción eficiente y precisa de estos perfiles, lo que permite a nuestros clientes mantenerse competitivos en el mercado de la construcción.

La máquina está compuesta por un desenrollador manual, una máquina perfiladora principal, un gabinete de control PLC, una estación hidráulica y una mesa de recepción manual. Todos estos componentes trabajan juntos para garantizar un proceso de producción rápido y sin problemas

https://www.youtube.com/watch?v=qsoj4glfA1w

Para obtener una mejor comprensión de cómo funciona nuestra máquina de láminas para techos metálicos R101 , Deck 25, hemos creado un video en YouTube que muestra la máquina en acción. Haga clic en el enlace de arriba para ver el video y descubrir cómo esta increíble máquina puede mejorar su negocio de construcción.

Aquí hay un diagrama detallado del flujo de trabajo de la máquina, que muestra cómo se produce cada perfil desde el desenrollador hasta la mesa de recepción.

A continuación, presentamos los parámetros clave de la máquina, incluyendo dimensiones, capacidad de producción, y velocidades de operación, para que pueda entender mejor las especificaciones técnicas y cómo nuestra máquina puede satisfacer sus necesidades de producción de techos metálicos.

En resumen, nuestra máquina de láminas para techos metálicos R101 y Deck 25 es una solución completa y personalizada para satisfacer las demandas de los clientes mexicanos. Si está interesado en saber más sobre nuestra oferta de máquinas de techos metálicos, no dude en ponerse en contacto con nosotros.

Lista de embalaje:

Sally Fu:

Whats app/Wechat:+86187307693688

cnzt005@zhongtuocn.com

¡Esperamos tener noticias suyas y ser parte de su éxito en el mercado mexicano de techos metálicos!

C / Z purlin is widely used in modern steel structure buildings. As the purlin of the house, Z purlin has better bearing capacity

The internal supporting part of steel structure, high-strength galvanized steel plate, is precision processed and cold rolled into C and Z purlin.

Purlin can be divided into main purlin and secondary purlin.

The main purlin is connected and installed on the roof and exterior wall structural column beam, and the secondary purlin is used to connect the roof panel and exterior wall panel to the foundation structure. The primary and secondary purlin are the main structural components commonly used in modern steel structure architectural design.

C purlin automatically processed and formed by C purlin forming machine. C purlin forming machine can automatically complete the forming process of C purlin according to the given size of C purlin.

C purlin is processed by cold bending of hot coil plate, with thin wall, light weight, excellent section performance and high strength. Compared with traditional channel steel, the same strength can save 30% of materials.

For this machine, because of the normal thickness of the material, the C purlin machine can not run very fast, normally it can produce 4 or 6 meters C purlin within one minute.

But with the improvement of technology, now we can make high-speed steel frame purlin machine. The speed can reach 20 meters per minute.( without punching hole process )

We can also make this machine can automatic adjust the C purlin product sizes by adjust parameters on the PLC computer, which is very easy to operate.

Antique colored steel glazed tile roofing sheet is a new type of building material, which uses colored steel plate as the base plate and is formed after special processing and special paint baking. It is rich in color, classical and elegant, which makes the finishing touch for your building. It has the advantages of light weight, high strength, good waterproof, convenient and fast installation. It can be widely used in villa roof, urban flat to slope, tourism scenic spot buildings and so on.

Preserve the shape of traditional ceramic tiles, reflecting the elegant classical beauty and traditional beauty. Substrates of various colors can be processed, and the colors of matte and bright are diversified. Light material and high strength: the unit mass is only 1 / 10 of that of ceramic tile, but it has reached the strength that ceramic tile can’t reach. It has strong wind resistance and weather resistance. The service life is up to 30 years: the product surface is treated with multiple anti-corrosion and anti rust coatings to ensure the service life of the product. Excellent waterproof performance: seamless connection on the slope, interference combination of the whole tile and complete sealing and fixing components have the waterproof performance that other building roof materials do not have. Short construction time and low cost: meet the site requirements of the construction unit, reduce the construction intensity and improve the construction efficiency, and the construction is not affected by the season.

The shape of the tile imitates the ancient glazed tile. The material is 0.3-0.6 thick colored steel plate. It has rich color and strong corrosion resistance. It integrates light weight, high strength and decoration. It reproduces the effect of the ancient tile with soft curve and obvious steps. The weight per square meter is only 5-9 kg, which is one tenth of that of the traditional sintered tile. The firm connection mode can fully bear the roof load; The unique air interlayer improves the thermal insulation performance; The waterproof groove of the tile itself has good waterproof characteristics and is very suitable for slope top buildings such as light steel structure, concrete structure and wood structure or flat to slope projects in the reconstruction of old cities.

Normally this glazed tile roofing sheet making machine can make 2-4 meter per min.

And our machine has one advantage of stacker, so that it can shown our roll forming processing is very great, you can check this picture.

Because of the shape of glazed tile roofing sheet, the price is more higher than the normal roofing sheet ( such as corrugated and trapezoid roofing sheet )

So if you choose this design , it can help you to be a star in your local market.
