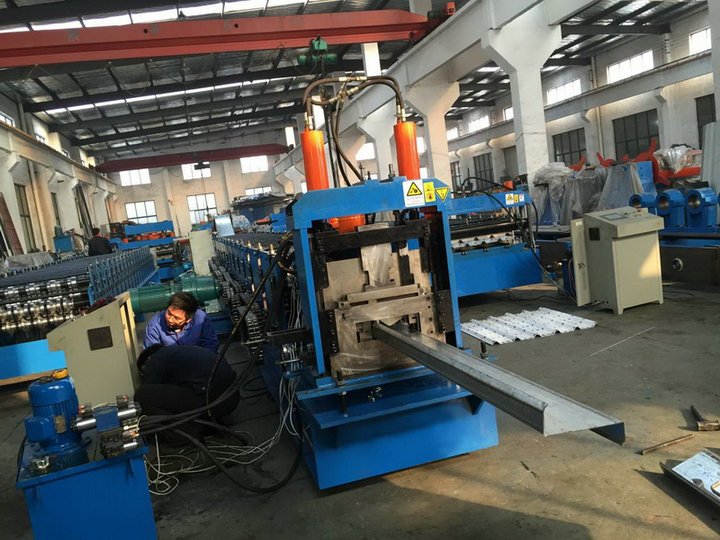

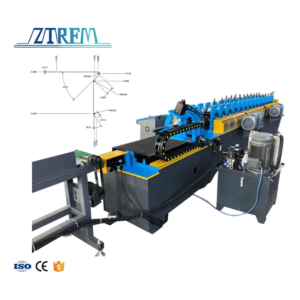

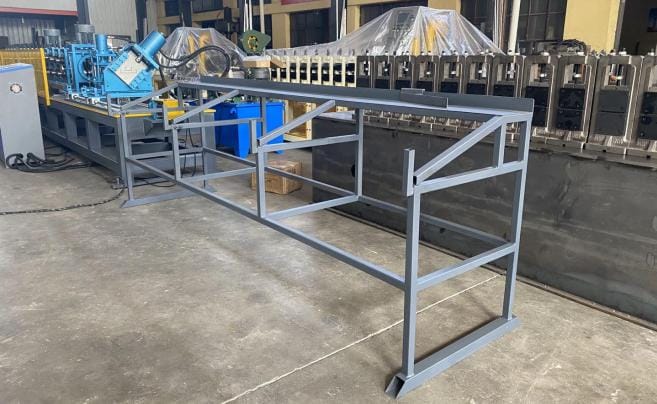

Drywall profile stud strack rolling forming machine is designed to make metal stud and track, that can used to build a drywall system.

Usually, C stud need insert into U track, stud need punching hole that use to threading the electric wairs. Sometimes, track need to embossing pattern. Our machine can be customized according to the stud and track sizes that you want to produce. The machine speed usually about 40 m/min without punching device.

To let you know more about our machine, here are some questions about the machine you may interested in:

1. How many kinds of stud and strack can this machine produce?

The machine can produce several stud and track size, the exact dimension will be confirmed by customer’s needed.

2. How can produce stud and track on one machine?

For this part, we have two options:

Option A: Adjust the machine by moving roller and roller spacer manually. Then the machine width can be adjust to produce different stud and track dimension. This kind of opinion is more economical, but need to spend more time to operate. We will give you drawing and take video to teach you how to adjust manually.

Option B: Adjust the machine by PLC control system automatically. We will customized all stud and track dimensions on the PLC control system. To adjust the machine, just need one minute. This kind of machine price will a little higher than option A, but the working efficiency is more higher.

3. How to punching the holes on channel?

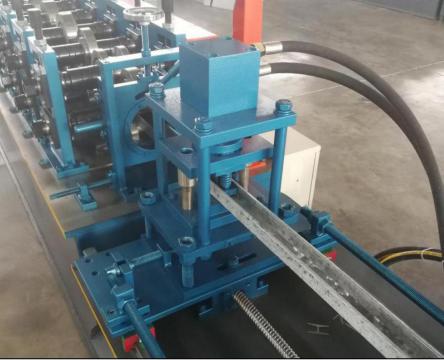

The holes will be punching after roll forming before cutting. The punching device can be controlled on PLC control system, like set up the hole quantity, hole distance.

4. Can the machine produce different length?

Yes, the machine can produce different lengthm by your request. The length can be set up on PLC control system, the product quantity also can be set up.

5. How many hours can be machine working everyday?

Usually, to ensure the machine can provide a more longer service life, we suggest machine working 8 hours everyday, and need to stop working each two hours.

We are professional roll forming machine supplier, already export machines to many countries for more than 15 years. If you are interested in our machine, let me know.

5v machine is the popular style in Chile market, this is one set single layer forming machine, it can assemble double layer machine with corrugated shape

Working Process

The complete double layer roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep the 5V Modle Corrugated Galvalume Roofing Sheet length accurate.

EACH PART DETAIL INTRODUCTION

1. 5  Ton  Manual Decoiler

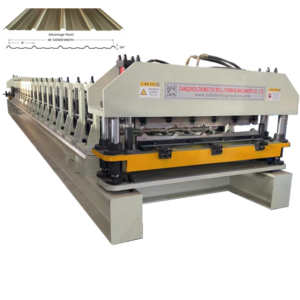

2. Roof and wall panel forming machine

1) Leveling beach with manual cutter

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

2) Main Roll Forming System for Roof and wall panel forming machine

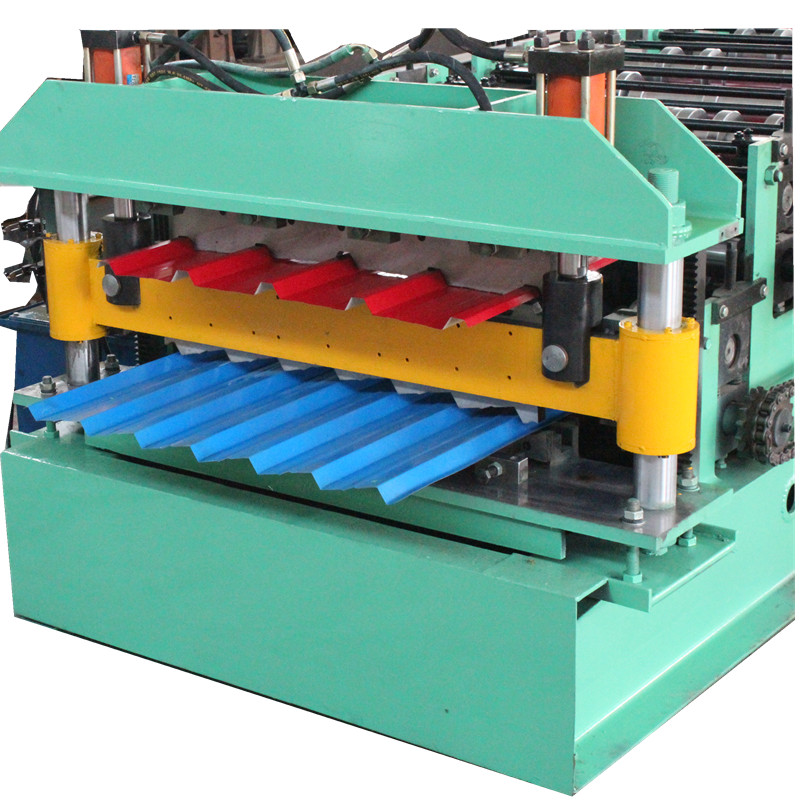

3) Shearing  system

4）Hyraulic Station with cooling fan

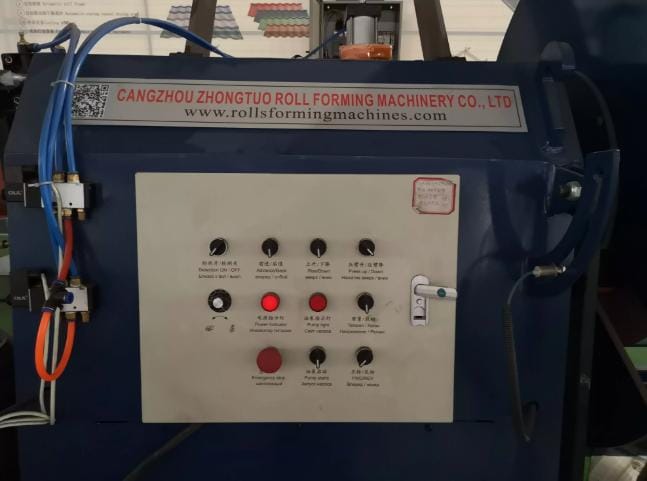

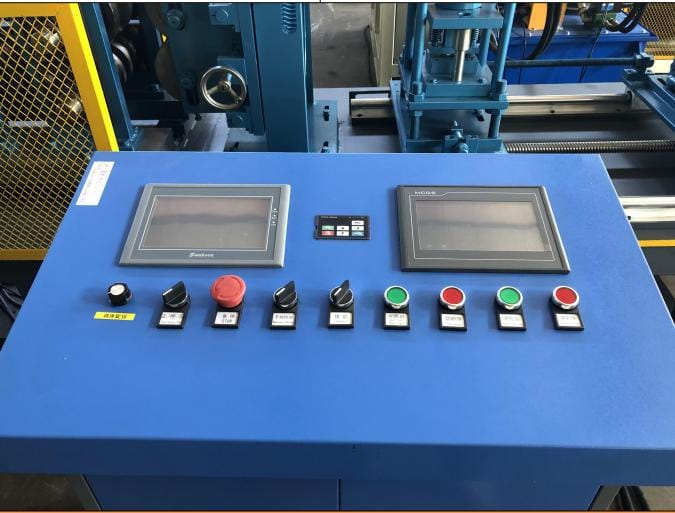

PLC control system

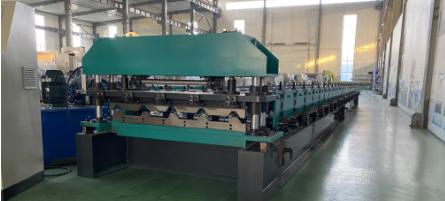

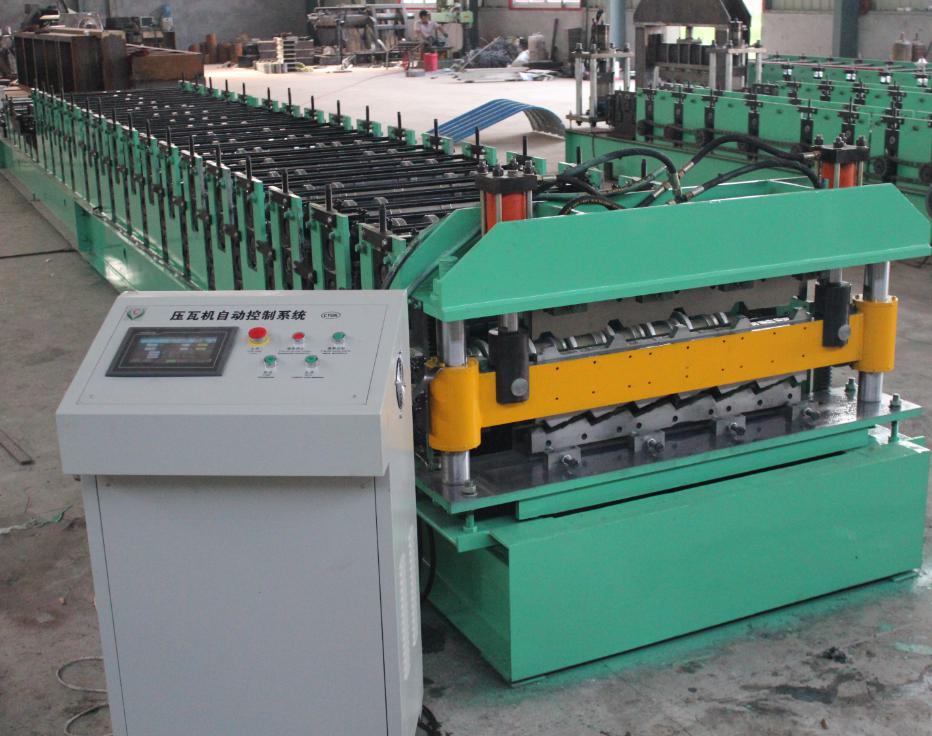

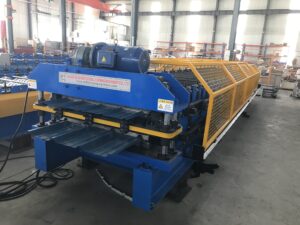

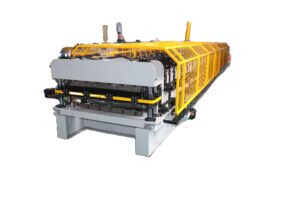

                                                  Double layer rolling forming machine

A double sheet roll forming machine is composed by a decoiler, two entry feeding guides with

entry shearing optional (either motor shearing or manual decoiler), two roll forming systems, one

Cutting frame with two cutting dies (a hydraulic pressing will be equiped as long as this dual level

roll forming machine is designed to produce metal glazed roof tiles), one transmission system, one

control system and runout tables.

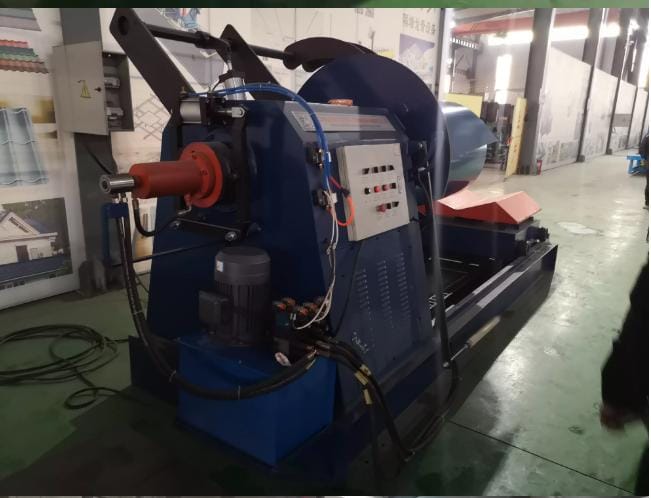

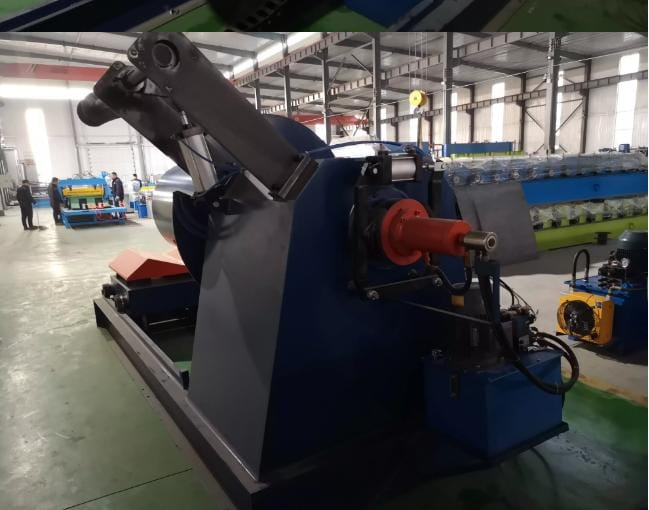

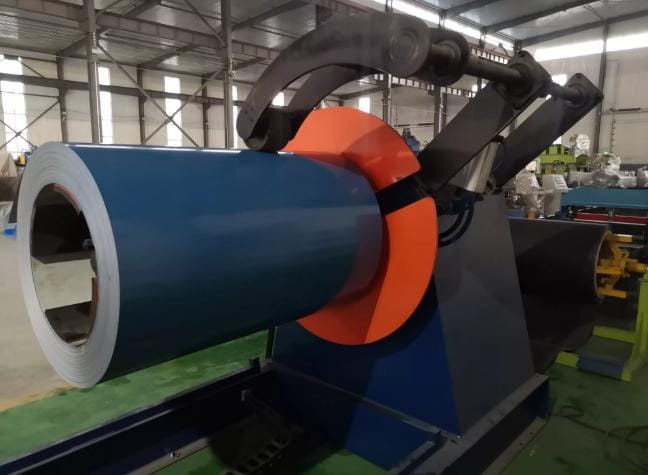

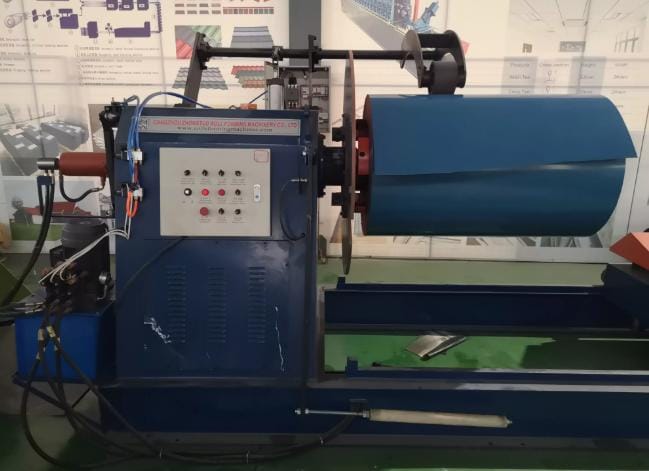

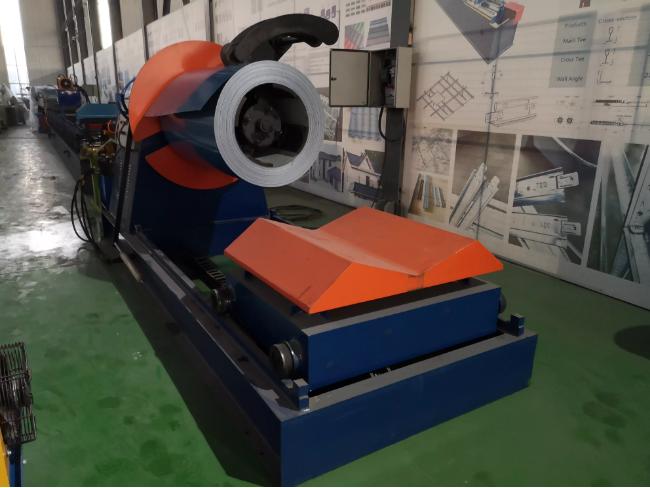

Hydraulic decoiler with loading car and auto stacker machine are optional to this double layer

roll forming machine as per requirments. And also the protection covers. If you need the fully

autoamtic production line, those options are necessary.

Two layers could be any metal roofing sheet drawings, expect two galzed tiles as the stepping

system can not work for them both.

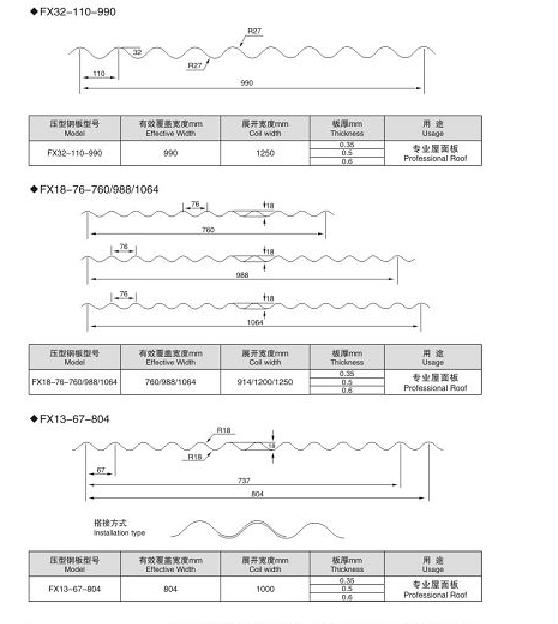

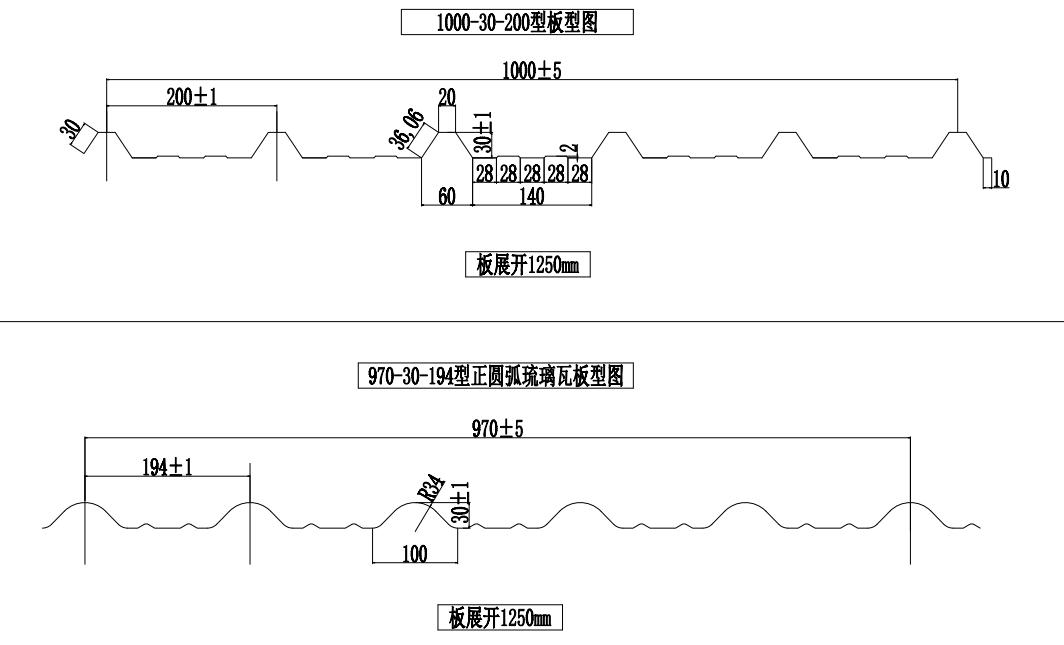

Take the following drawing for example to show how Double layer rolling forming machine designed.

                                             Double layer rolling forming machine

Technical Parameters for dual level roll forming machine:

• Uncoiler: Manual Uncoiler (a Hydraulic decoiler is optional);
• Inner diameter : 480-520mm;
• Outer diameter: 1250mm;
• Loading weight: 5TONS;
• Material width: 762-1250mm;
• Material thickness: 0.3-0.8mm;
• Forming speed: 0-12m/min (high speed is optional as per request);
• Forming steps: 16-22 forming stations (subject to the technical drawing of profiles);
• Material of Shafts:45# high-quality steel;

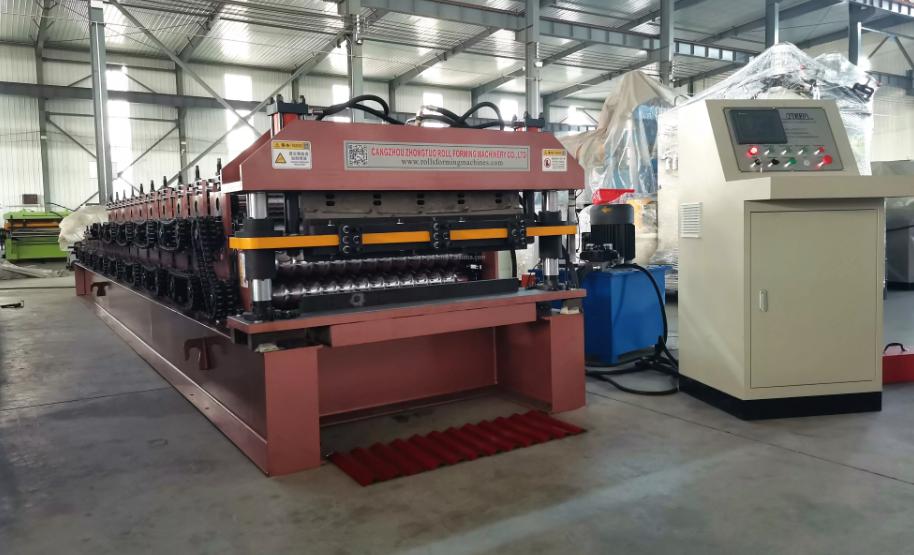

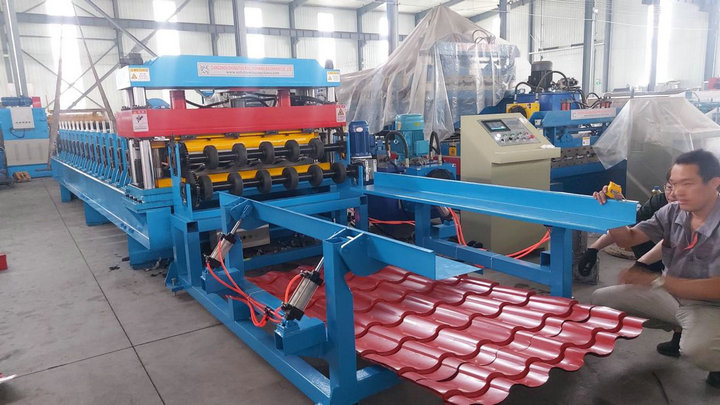

Double layer roll forming machine for corrugated sheet and metal roof tile

• Diameter of Shafts: 70mm;
• Material of Roller: high quality 45#steel coated with hard chrome 0.05mm.
• Thickness of Siding Plate: 20mm;
• Transmission: by chain-brackets;
• Motor Power: 15 KW
• Material of cutting blade:Cr12 with quenched treatment 60-62 degrees;
• Material of pressing dies: Cr12 steel with queching treatment;
• Hydraulic Power: 4-5.5KW;
• Cutting Lengths and Quantities: this double deck roll forming machine will automatically cut the final sheets exactly as per required lengths and quantites clients set through the touch screen on PLC control box.
• Cutting tolerance: +/-2mm
• Control system: Panasonic PLC, Inverter, CHNT transformer and HMI
• Voltage: 380V/50HZ/3phase customize

Detailed Product Description

Basic Info

Additional Info

Product Description

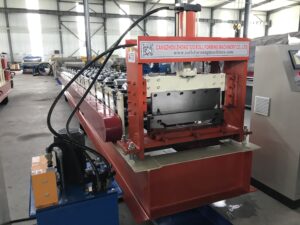

Roofing Sheet Making Machine For Algeria
Some client want to know what the roofing sheet making machine is . Actually this equipment belong to the cold bending machinery . It can form the metal roof sheet ( the roof sheet profile is according to the client requirement) by pressing several steps . The Metal Roof Roll Forming Machine has the PLC control system , we can set the length and pieces by entering the data in the PLC , so that the machine will cut the roof sheet into the setted length and quantity .
The following picture can help you understand much better for the application of the roof profiles .

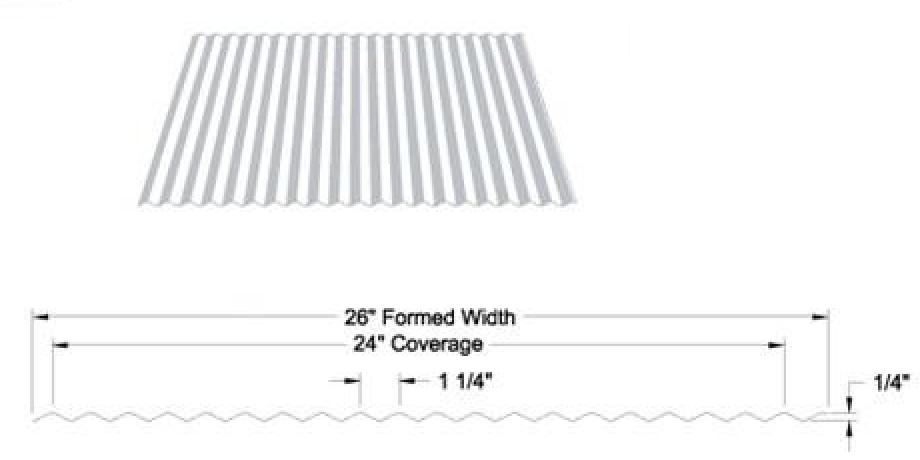

Profile And Finished Roof profile by the Metal Roofing Panel Machine

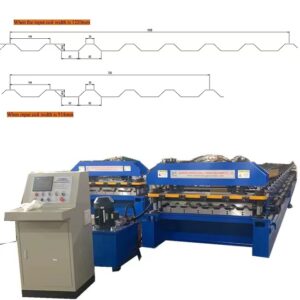

The following drawing is designed for the Algeria client , depend on his needs , one machine can make the two different profiles . This profiles is very popular in Algeria .
Also the other advantage of this Roof Panel Roll Forming Machine is its speed , we adopt the gear box transmission system . so that it can reach 35 meter per minute , very fast compared with the common machine . Because the common machine can only reach 8-12 meter per minute . If the client has a large demant of the profile , this design is a good choice for you .

Main Specification Of Roof And Wall Panel Roll Forming Machine

Working Flow Of metal roof panel machine
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table

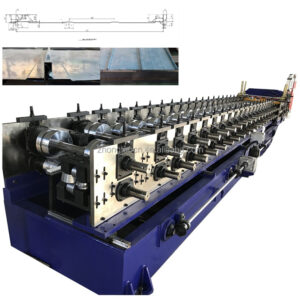

More picture of the metal roof roll forming machine

When we ship the roof panel machine to you , we will also send the client the necessary spare parts .
* 5T Decoiler………………………………1 Set
* Discharge Table………………………………2 Set
* The tool box ………………………………..1 set

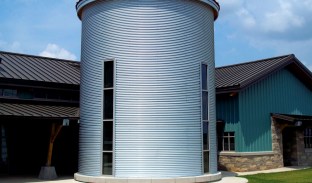

Application

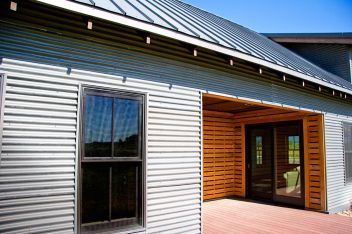

This type of sheet are widly used in warehouse, workshop, roofing and other part. It has a large market.

Loading And Shipping
* We will packed water proof paper on the machine .
* This Glazed Tile Roll Forming Machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
