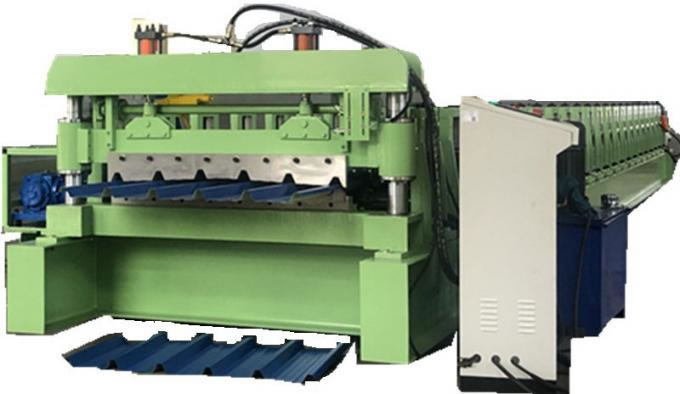

FX-900 double layers color steel roll forming machine

fx-900 double layers color steel roll forming machine is mainly imported from the feed platform, forming the host, forming cutting device, hydraulic station, computer control system composed of several parts. Optional equipment ordinary discharge machine, hydraulic discharge machine, automatic feeding machines chop

fx-900 double layers color steel roll forming machine main technical parameters:
Length — width — height: 4600mm — 1300mm — 1000mm
Forming axis: Diameter 72mm 45 # quenched solid shaft
Forming wheel: Material 45 # forged hard chromium plating
Transmission: hydraulic motors
Forming Rows: 11 row
Automatic computer and Cutting Systems:
Five batches of data at the same time can be set to work simultaneously
Pumping motors: 3KW four
Cut Die: Gr12
Forming speed: 15m / min
Pressing thickness: 0.2-0.8mm
Pressing width: 1000m

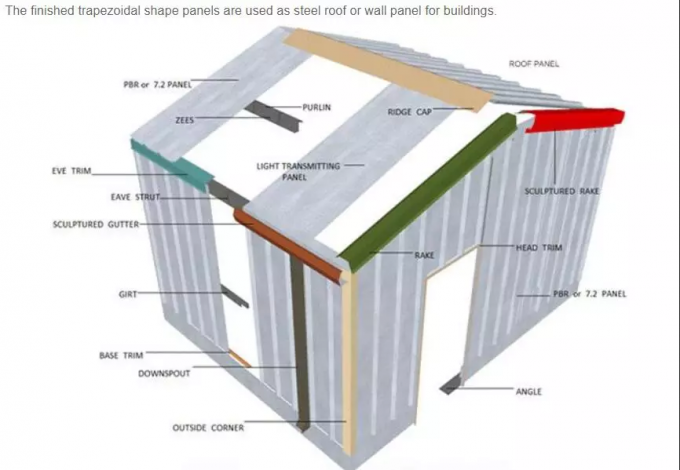

fx-900 double layers color steel roll forming machine pressure plate connected to the roof to break the traditional practice of using screw gun connection, the installation method Cai Lan port 45 degrees bite installation, make roofing better. Our products are widely used in various industrial plants, housing, production and warehouse roof and wall beautiful and durable.

fx-900 double layers color steel roll forming machine has the following characteristics:
1, high strength: The machine uses high-strength steel for the substrate (anti-tensile strength 5600KG / CM) coupled with the most advanced design and roll forming, with excellent structural properties.
2, Fire: color composite sandwich panels and insulation materials surface material is non-combustible material, fully able to meet fire code requirements.
3, quick installation: the light weight composite panels, splice installation and can easily cut characteristics, determine its simple installation, can greatly improve efficiency, saving period.
4, aesthetics: pressure plate clear lines of up to dozens of kinds of colors, can meet the needs of any style buildings, to achieve satisfactory results.
5, durable: many studies have shown, and abroad for more than 40 years of widespread use of proven, with a special color coating steel shelf life of at 10–15 years, every 10 years after spraying anti-corrosion coatings, lumber life of up to 35 years.

Double layer Roofing Sheet Cold Roll Forming Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a combo machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But one double layer machines, by one machine you can produce those two types. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or round wave roofing sheet,

Working process of double layer roofing machine:

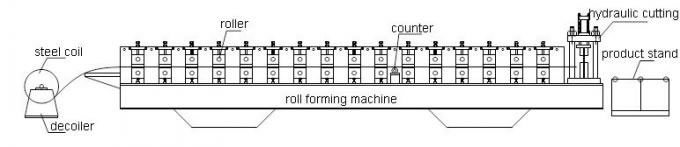

Uncoiling Feeding material into machine Roll forming Measuring length—– Step formed—–Auto cutting Products receiving

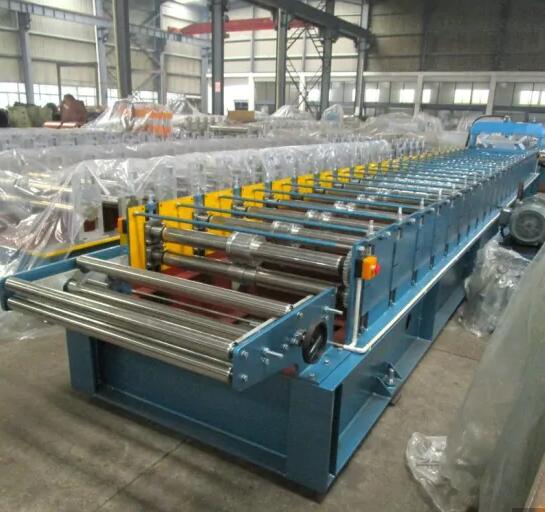

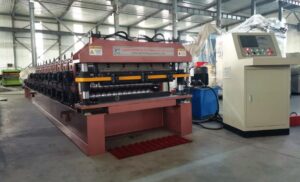

Double layer roofing machine picture:

Basic parameters of the double layer roofing machine:

Features of double layer roofing machine:

1.One machine could produce two types roofing sheets.
2.Save working space, save energy and save cost of machine.
3.Easy to use and easy to transportation.
4.If you need to add wheels to machine, you can put production aany place.
5.Two layer one PLC control system, one pair of motors, easy to maintain.
6.Working speed 25 meter per minute.
7.Material thickness could be from 0.2 to 1.2mm.
Note: But two layers cannot work at the same time. If you need to huge production, please buy single layer machine.

Here is the machine working video for your reference:

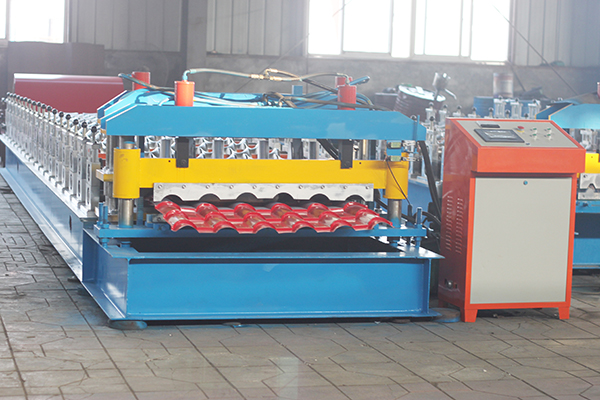

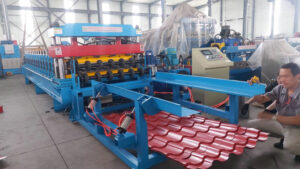

Roofing tile roll forming machine

Characteristic

This roll forming machine can roll form metal roofing step tile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

Roll forming process:

Fully Automatic Control System with PLC. Easy operation: Key in the length and quantity on the control panel. One year warranty. We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and

profile drawing.

One roll forming machine can produce one or two profile.
The following profile drawing are some examples for your reference.

Composition of machine line

Single head uncoiler
Roll forming main machine
Hydraulic cutting system
Hydraulic station
Control panel with fully automatic control system with PLC
Receiving table
Specification
SHEET THICKNESS 0.3 ~ 0.8mm
FORMING SPEED 8~ 12M / per minute
ROLLER SHAFT DIAS 75 mm
ROLLER STATIONS 12 ~ 16
LENGTH x WIDTH L 86~ 12 M W 750~ 1010 M

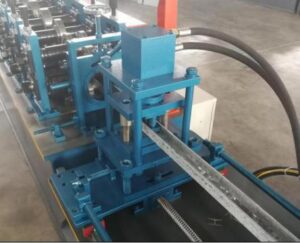

Combined C U Channel Roll Forming Machine

PACKAGE: NUDE PACKAGING IN 1*20 GP CONTAINER LEAD TIME: WITHIN 30 WORKING DAYS AFTER RECEIVED THE DEPOSIT

Combined C U Channel Roll Forming Machine Customer requirements:

Combined C U Channel Roll Forming Machine Working Process:

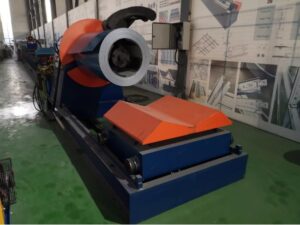

Combined C U Roll Forming Machine Decoiler System Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system. Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm Combined C U Roll Forming Machine Entry Beach Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Combined C U Roll Forming Machine Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanize treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Size of main part: About 5.5*1.4*1.5m (L*W*H) Weight of main part: 4.5Tons Main power: 5.5kw Voltage: 380V/50HZ/3Phase Frame type: Memorial arch frame Frame thickness: 25mm Drive mode: By gear Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ40mm Number of rollers: 11 rollers Material: GI/PPGI Material thickness: 0.3-0.6 mm Forming speed: 25 meter/minute Combined C U Roll Forming Machine Automatic Cutting Feature : Ensure stability, precision and cutting speed Function : Automatic cutting controlled by electric control system It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Gcr12MoV quenched Power supply : Hydraulic power Combined C U Roll Forming Machine Hydraulic Station It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Station quantity: 2 sets Hydraulic motor Power: 3kw Hydraulic oil: 46# hydraulic oil Volume: 30L Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves. Combined C U Roll Forming Machine Electric Control System 1. Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime. 2. Voltage: 380V/50HZ/3Phase 3. Language: English and Chinese 4. Automatic length measurement 5. Automatic quantity measurement 6. Length Tolerance: 3m±1.5mm 7. Length inaccuracy can be amended easily. 8. Operating panel: touching screen and button together. 9. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety. Combined C U Roll Forming Machine Warranty 1. One year warranty, whole life technical support. 2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine. 3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary. Contact information

Double layer Roofing Sheet Cold Roll Forming Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a common machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But by one double layer machines you can produce two types roofing sheets. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or corrugated round wave roofing sheet.

Working process of double layer roofing machine: Uncoiling —- Feeding material into machine —- Roll forming machine—- Step formed—- Auto cutting—- Products receiving table.

Basic parameters of the double layer roofing machine:

Features of double layer roofing machine:

• One machine could produce two types roofing sheets.

2. Save working space, save energy and save cost of machine.

3. Easy to use and easy to transportation.

4. If you need to add wheels to machine, you can put production at any place.

5. Two layer one PLC control system, one pair of motors, easy to maintain.

6. Working speed 8-12 meters per minute.

7. Material thickness could be from 0.3 to 0.8mm.

Note: But two layers cannot work at the same time.

If you need to huge production, please buy two single layer machines.
