Category Roof/Wall Sheet Forming Machine

Combined C U Channel Roll Forming Machine

PACKAGE: NUDE PACKAGING IN 1*20 GP CONTAINER LEAD TIME: WITHIN 30 WORKING DAYS AFTER RECEIVED THE DEPOSIT

Combined C U Channel Roll Forming Machine Customer requirements:

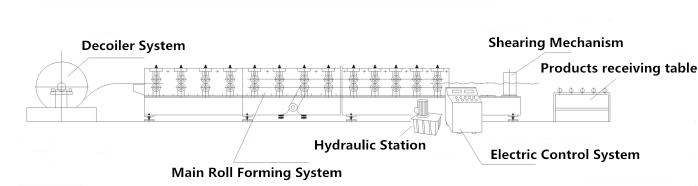

Combined C U Channel Roll Forming Machine Working Process:

Combined C U Roll Forming Machine Decoiler System Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system. Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm Combined C U Roll Forming Machine Entry Beach Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Combined C U Roll Forming Machine Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanize treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Size of main part: About 5.5*1.4*1.5m (L*W*H) Weight of main part: 4.5Tons Main power: 5.5kw Voltage: 380V/50HZ/3Phase Frame type: Memorial arch frame Frame thickness: 25mm Drive mode: By gear Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ40mm Number of rollers: 11 rollers Material: GI/PPGI Material thickness: 0.3-0.6 mm Forming speed: 25 meter/minute Combined C U Roll Forming Machine Automatic Cutting Feature : Ensure stability, precision and cutting speed Function : Automatic cutting controlled by electric control system It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Gcr12MoV quenched Power supply : Hydraulic power Combined C U Roll Forming Machine Hydraulic Station It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Station quantity: 2 sets Hydraulic motor Power: 3kw Hydraulic oil: 46# hydraulic oil Volume: 30L Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves. Combined C U Roll Forming Machine Electric Control System 1. Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime. 2. Voltage: 380V/50HZ/3Phase 3. Language: English and Chinese 4. Automatic length measurement 5. Automatic quantity measurement 6. Length Tolerance: 3m±1.5mm 7. Length inaccuracy can be amended easily. 8. Operating panel: touching screen and button together. 9. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety. Combined C U Roll Forming Machine Warranty 1. One year warranty, whole life technical support. 2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine. 3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary. Contact information

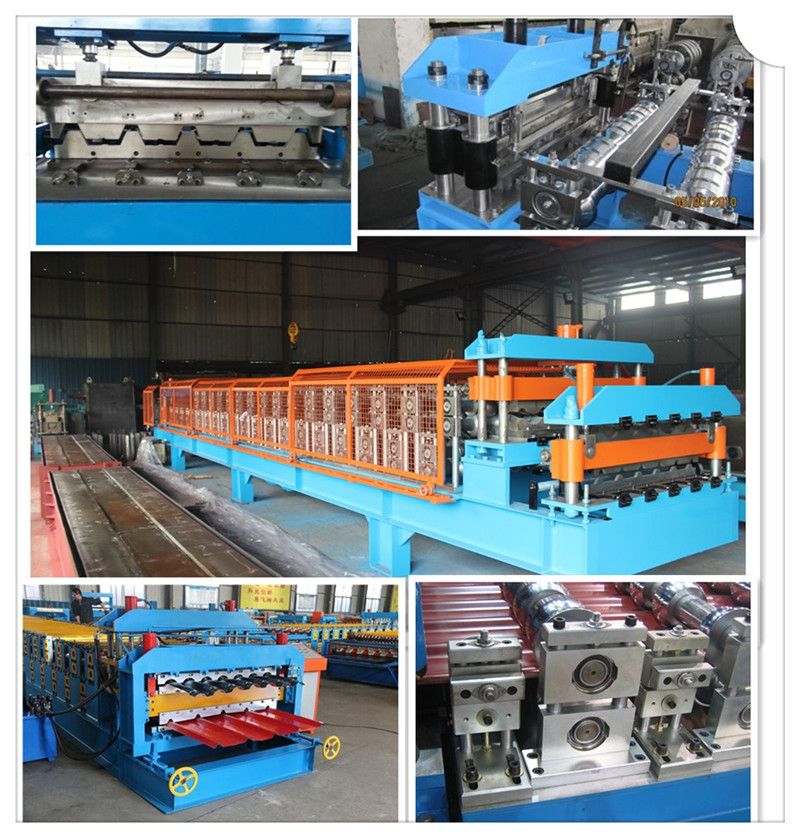

Double layer Roofing Sheet Cold Roll Forming Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a common machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But by one double layer machines you can produce two types roofing sheets. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or corrugated round wave roofing sheet.

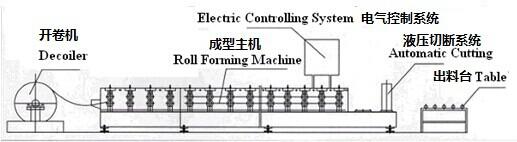

Working process of double layer roofing machine: Uncoiling —- Feeding material into machine —- Roll forming machine—- Step formed—- Auto cutting—- Products receiving table.

Basic parameters of the double layer roofing machine:

Features of double layer roofing machine:

• One machine could produce two types roofing sheets.

2. Save working space, save energy and save cost of machine.

3. Easy to use and easy to transportation.

4. If you need to add wheels to machine, you can put production at any place.

5. Two layer one PLC control system, one pair of motors, easy to maintain.

6. Working speed 8-12 meters per minute.

7. Material thickness could be from 0.3 to 0.8mm.

Note: But two layers cannot work at the same time.

If you need to huge production, please buy two single layer machines.
