ZTRFM ISO CE certificate Europe Used Steel Decking TR220 Floor deck making machine roll forming machine

Description of TR220 profile deck machines

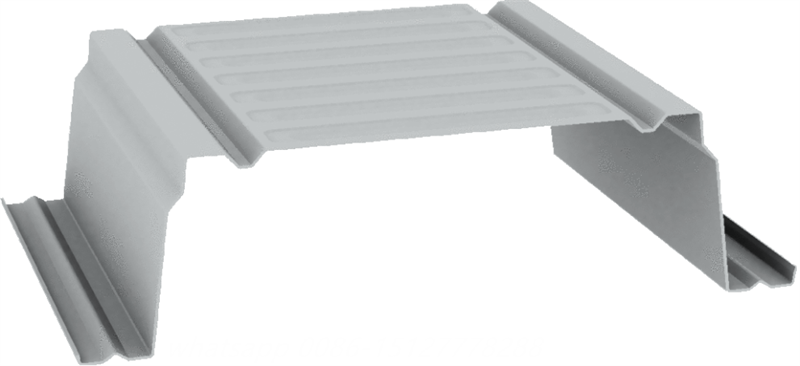

The TR220 composite floor system merges the robust qualities of a 220mm deep steel deck profile with the efficiency of a ribbed reinforced concrete slab, delivering an effective long-span floor solution. By installing the TR220 on the bottom flanges, a slimmer floor construction is achieved, minimizing the structural depth and eliminating the need for intermediate supports.

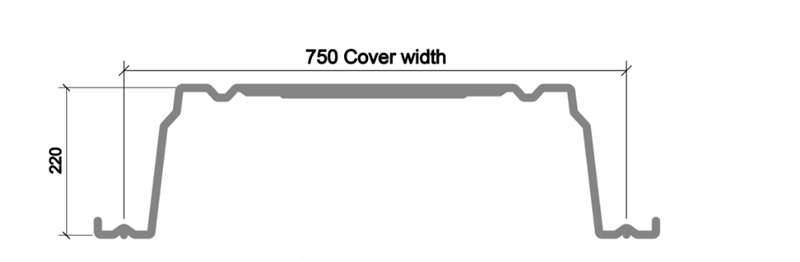

TR220 Profile drawing:

TR220 Roof Decking Description

• Deck Type: TR220 deck
• Benefits:

1. Un-propped spans can reach up to 6 meters.
2. It is lightweight in comparison to alternative long-span flooring options.
3. This solution decreases the structural floor zone by utilizing the slab depth within the beam web.

• Gauges:1.13mm,1.25mm
• Specification:750mm cover width,220mm deep

Metal Decking continues to provide the best fast-track, flexible, and financially-effective solution for suspended floor slabs in steelwork construction.

ZHONGTUO Deck Machine Services providing a solution for all suspended floor slab requirements, including concreting on metal decking and roof decking machine.

ZHONGTUO Machinery provides metal deck machines, ZHONGTUO Machinery is also capable of manufacturing other types of metal deck roll forming machines, such as the floor deck TR60+, TR 80 and among others.If you have any interest in these machines, please don’t hesitate to contact ZHONGTUO Machinery for more information.

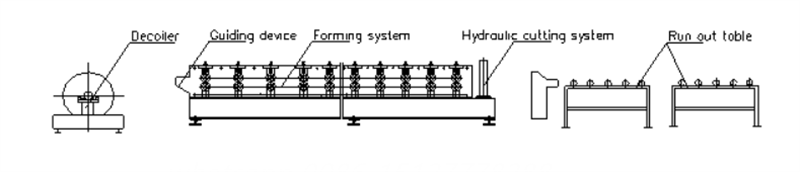

Work Flow of the Decking Machine:

Decoiler→Feeding  Device→Embossing→Roll Forming System→Hydraulic Cutting System→Exit Rack

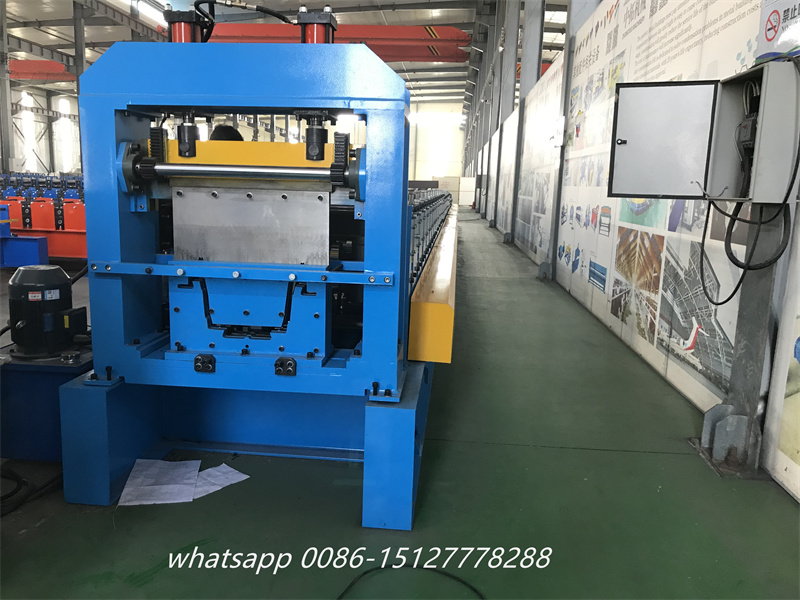

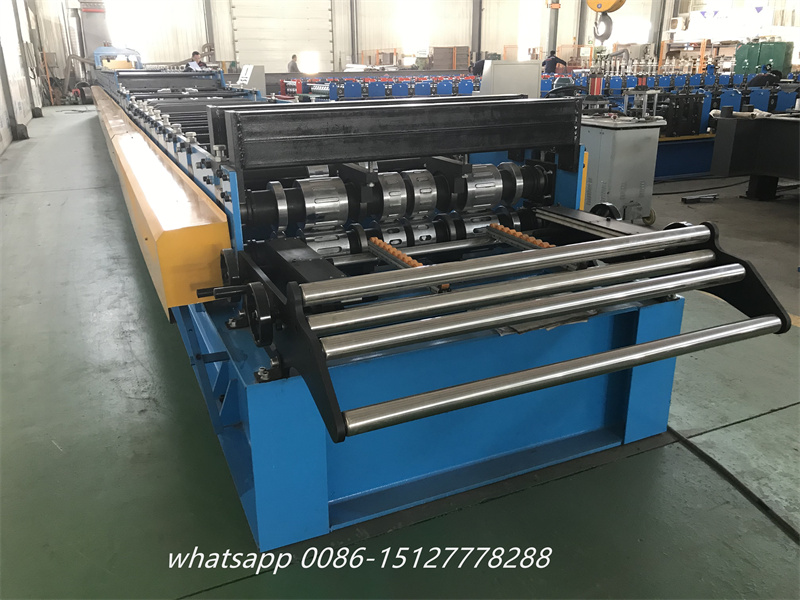

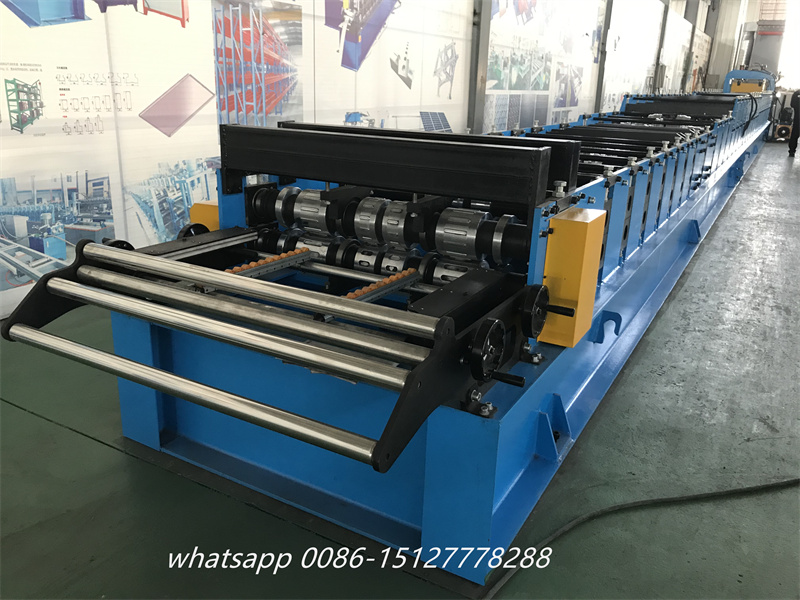

More pictures of the machine：

TR60 Roof Decking Rolling Forming Machine TR60 And TR80 Profile Deck Machines

Description of TR60 And TR80 profile deck machines

Floor decking is essential in construction, providing a structural surface for floors that can bear heavy loads and endure various environmental conditions. There are different types of floor decking materials and systems, each with distinct features and uses. Below are some common types of floor decking roll forming machines:

TR60 Profile drawing:

TR60 Roof Decking Description

• Deck Type: TR60 deck
• Effective Width: 600mm
• Effective Width Tolerance: ±5mm
• Material Thickness:0.8-1.2mm
• The Length Of Tolerance:±1(4m)
• Applicable Material:Galvanized Sheet(GI)
• Inspection Thickness:0.9mm
• With yield strength:G550Mpa

TR80 Profile drawing:

ZHONGTUO Machinery is also capable of manufacturing other types of metal deck roll forming machines, such as the floor deck TR60+, Comflor 80, Losacero 25, and and , among others.

If you have any interest in these machines, please don’t hesitate to contact ZHONGTUO Machinery for more information.

The TR80+ floor deck profile is a widely used British profile design with nominal thicknesses of 0.9mm, 1mm, and 1.2mm. It typically uses S350 or S450 grade steel material, with a profile depth of 80/92mm. This 80mm deep trapezoidal profile is highly favored for low to medium-rise buildings because it provides long unpropped spans, reducing the need for numerous structural support members. Additionally, one of our customer requirements includes a 4mm embossment height, which is a challenging profile to achieve with a roll forming machine. To meet this demand, we utilize 34 forming stations, ensuring the final product has precise dimensions and a smooth, flat surface.

Work Flow of the Decking Machine:

Decoiler→Feeding  Device→Embossing→Roll Forming System→Hydraulic Cutting System→Exit Rack

More pictures of the machine：

Description of R51+ deck panels roll forming machine

Cangzhou Zhongtuo Cold Roll Forming Machine Company is a leading manufacturer of various deck machines, such as roof deck machines, floor deck machines, and R51+ deck machines.

The unique design of the R51+ deck enables it to accommodate more sound-absorbing concrete than other deck types. Furthermore, the embossed ribs on the dovetail-shaped deck ensure a highly durable and permanent bond with the concrete, effectively reinforcing the slab.

Our R51+ deck machines are engineered with enhanced durability, utilizing a solid 90mm diameter shaft compared to the typical 85mm shaft found in standard deck machines. Additionally, they are equipped with more powerful motors—providing greater efficiency and performance.

Description of R51+ deck panels

The R51+ profile is a classic re-entrant design frequently utilized in high-rise urban projects where the structural depth is constrained. This is because its relatively thin slab depth is sufficient to meet the typical 1-hour fire rating requirements, making it an ideal choice for buildings in dense city environments.

Profile drawing:

R50+ Roof Decking Description

• Deck Type: R51+ deck
• Available in 0.9mm, 1.0mm and 1.2mm gauges
• Manufactured from S350 and S450* grade galvanised steel
• Soffit service fixings available with 1 kN load capacit

 The Decking Machine:

The technical specifications of the R50+ Roof Decking Rolling Forming Machine：

More pictures of the machine：
