ZTRFM Zhongtuo Steel Decking LEWIS Floor Deck Making Machine Roll Forming Machine made in China

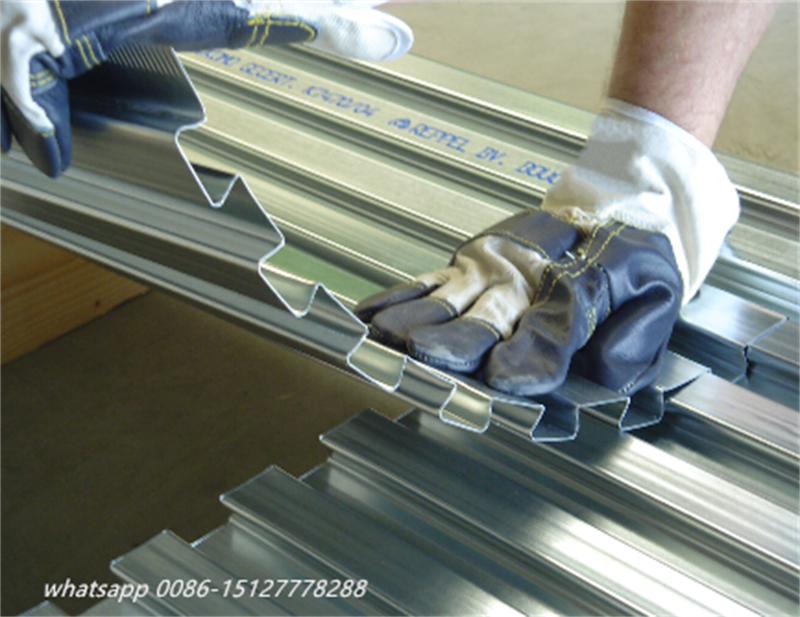

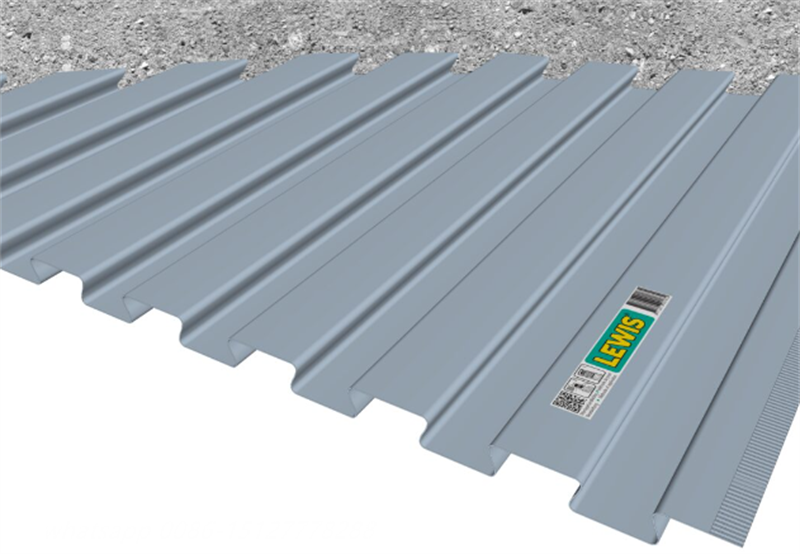

Description of LEWIS profile
The LEWIS dovetailed metal decking, when incorporated into a joisted floor system, offers an excellent solution where fire resistance and soundproofing are critical considerations. This system integrates seamlessly with screeded underfloor heating and cooling installations, enhancing their overall efficiency compared to setups without the decking.
LEWIS provides versatile solutions for both new constructions and renovation projects, suitable for a variety of building types, including traditional builds, timber or steel frames, as well as innovative methods like Insulated Concrete Form (ICF), modular off-site construction, and mezzanine flooring. In addition to standard residential separating floors, LEWIS excels in creating high-performance acoustic floors for specialized environments such as music venues, nightclubs, restaurants, recording studios, performance and recreational studios, specialized testing laboratories, plant rooms, and a wide range of other commercial applications.

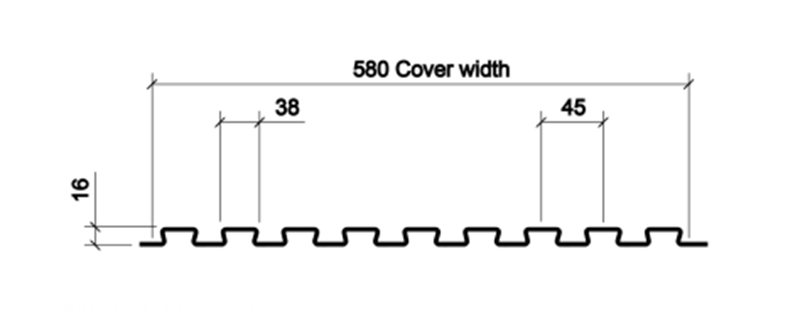

LEWIS Profile drawing:
LEWIS Roof Decking Description
- Deck Type: LEWIS deck
- Low self weight (from approx. 45 kg/m2)
- Floor thickness from 36 mm
- High permissible load
- Spans (centre to centre) up to 2500 mm
- Benefits:
- Un-propped spans can reach up to 6 meters.
- Optimised cover width for speed of installation
- Flexible side-lap detail for control of cover
- Gauges:0.4mm,0.7mm(available on request)
- Specification:580mm cover width,16mm deep
Metal Decking continues to provide the best fast-track, flexible, and financially-effective solution for suspended floor slabs in steelwork construction.
ZHONGTUO Deck Machine Services providing a solution for all suspended floor slab requirements, including concreting on metal decking and roof decking machine.
ZHONGTUO Machinery provides metal deck machines, ZHONGTUO Machinery is also capable of manufacturing other types of metal deck roll forming machines, such as the floor deck TR60+, TR 80 ,TR220 and among others.If you have any interest in these machines, please don’t hesitate to contact ZHONGTUO Machinery for more information.
Work Flow of the Decking Machine:
Decoiler→Feeding Device→Embossing→Roll Forming System→Hydraulic Cutting System→Exit Rack
| Floor Deck LEWIS Roll Forming Machine | ||
| Machinable Material : | A) Galvanized Coil | Thickness(MM):0.8-1.5mm |
| B) S450 | ||
| C) S450 | ||
| Yield strength : | 350 – 450 Mpa | |
| Tensil stress : | 350 Mpa-550 Mpa | |
| Nominal forming speed(M/MIN): | 0-20 | according to your requirement (Optional) |
| Forming station : | 34 stands | |
| Decoiler : | Manual decoiler | Hydraulic decoiler (Optional) |
| Punching system | No | Hydraulic punching or Punching press (Optional) |
| Main machine motor brand : | Sino-Germany Brand | Siemens |
| Driving system : | Chain drive | Gearbox drive (Optional) |
| Machine structure: | Wall panel station | Forged Iron station or torri stand structure (Optional) |
| Rollers’ material : | GCr15 | |
| Cutting system : | Post-cutting | Pre-cutting (optional) |
| Power supply : | 380V 50Hz | according to your requirement |
| Machine color : | Industrial blue | according to your requirement |

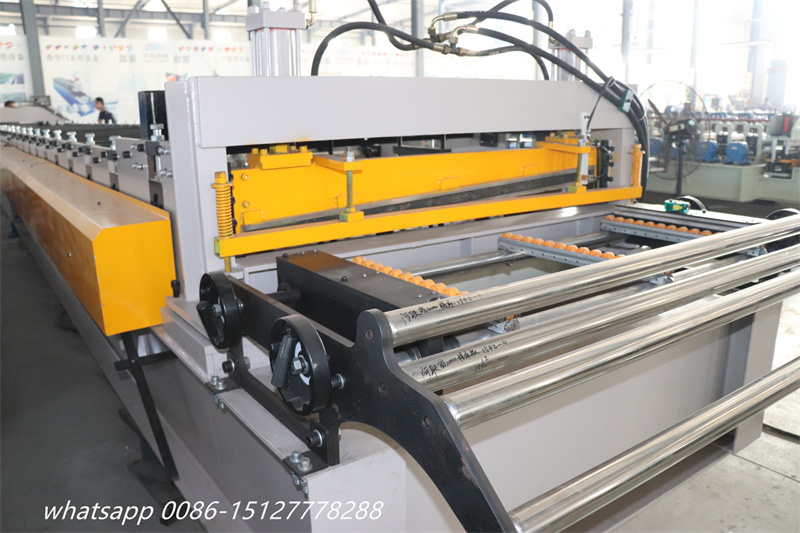

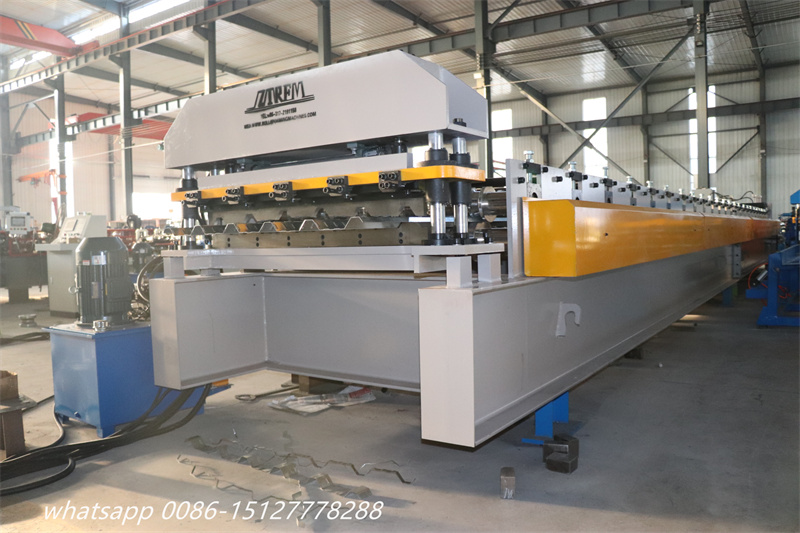

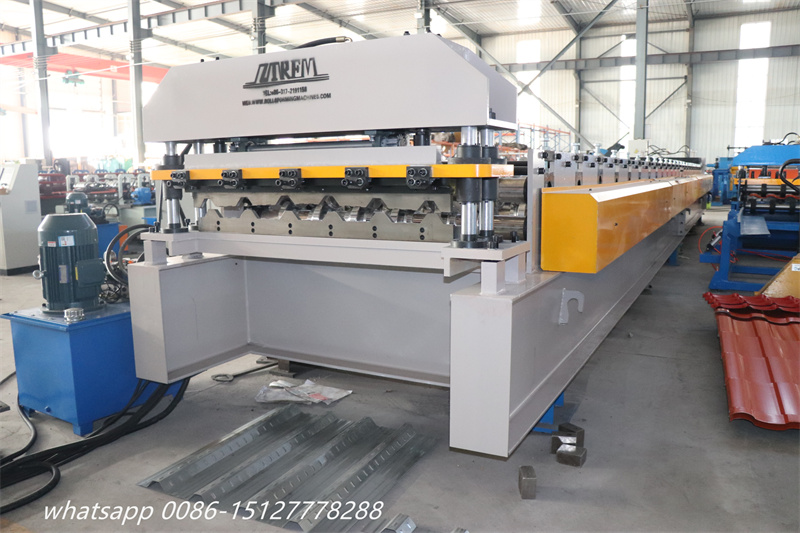

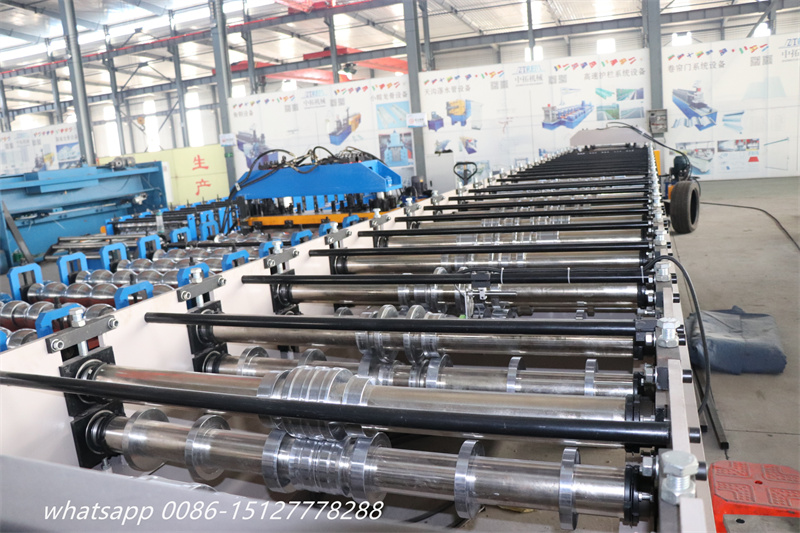

More pictures of the machine：
